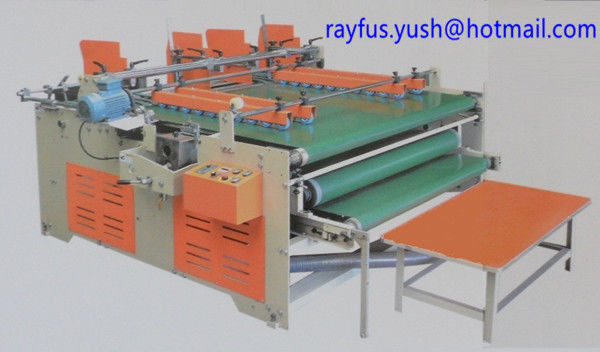

Carton Folding And Gluing Machine Pressure Model For Non Standard Size

Carton Folding And Gluing Machine Pressure Model For Non Standard Size

Carton Folding And Gluing Machine Pressure Model For Non Standard Size
Carton Folding And Gluing Machine Pressure Model For Non Standard Size
Carton Folding And Gluing Machine Pressure Model For Non Standard Size
Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: BZX-Y
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 8,000~12,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 30~60 working days
Payment Terms: T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Function: Non-standard Carton Box Folding Gluing Machine Warranty: One Year
Size: Customized Speed: Customized
Color: Customized Voltage: Made To Customer Request
High Light:

carton manufacturing machine

,

carton box manufacturing plant

Automatic High-speed Folder Gluer Machine, pre-fold or bottom-lock, for carton box manufacturing



Non-standard Carton Box Folder Gluer Machine



Functional Specifications:

  1. Pressure model folder gluer is new-designed for non-standard carton boxes, adopt manual folding, less space, easy to operate, suitable for normal cartons or non-standard boxes, which could not be done with normal folder gluer.
  2. The glue quantity just about 1/3 and capacity about 3~4 times, compared with manual gluing, save glue & labor and high-efficiency, the adhesive-banded joint firmly and tidy fixed, without overflow of glue.
  3. Gluing Unit: adopt stainless steel glue-tube, avoid rustiness & corrosion, gluing wheels could process different kinds of carton boxes.
  4. Automatic feeding and gluing, manual folding, automatic pressing and output.
  5. Gluing head on both sides, could make two different carton boxes in one process.
  6. Two-piece carton box, long conveyor for several workers to improve efficiency as optional.

Technical Parameters:



Model 1500 1800 2200 2500
Max Sheet size 1500*1100mm 1800*1100mm 2200*1100mm 2500*1100mm
Min Sheet size 260*200mm
Deisgn Speed 60m/min



Carton Folding And Gluing Machine Pressure Model For Non Standard Size 0


YUSH CARTON MACHINE, your best supplier for Corrugated Cardboard & Carton Box Making Machines

Sincerely, welcome you to join our cooperator team, we shall repay you with top-notch products and perfect services.
