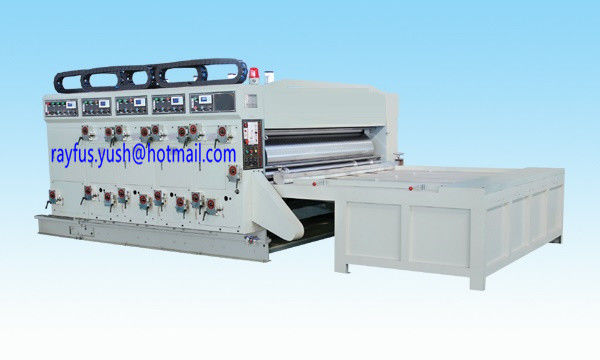

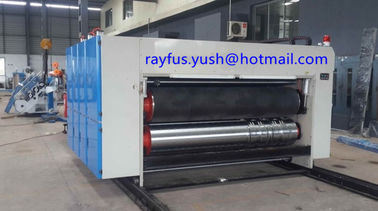

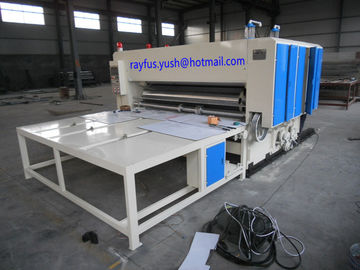

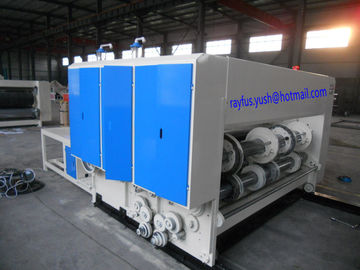

Semi Auto Carton Box Manufacturing Machine / Flexo Printer Slotter Machine Chain Feeder

Semi Auto Carton Box Manufacturing Machine / Flexo Printer Slotter Machine Chain Feeder

Semi Auto Carton Box Manufacturing Machine / Flexo Printer Slotter Machine Chain Feeder
Semi Auto Carton Box Manufacturing Machine / Flexo Printer Slotter Machine Chain Feeder
Semi Auto Carton Box Manufacturing Machine / Flexo Printer Slotter Machine Chain Feeder
Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: YKM
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 15,000~100,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 30~60 working days
Payment Terms: T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Function: Corrugated Carton Box Printing Slotting Die-cutting Machine Warranty: One Year
Size: Customized Speed: Customized
Color: Customized Voltage: Made To Customer Request
High Light:

corrugated box making machine

,

carton box manufacturing plant

Semi-auto Flexo Printing Slotting Die-cutting Machine, chain feeder, for carton box manufacturing



Semi-auto Flexo Printing Slotting Die-cutting Machine

(chain feeding, 1~4 colors printing)



Functional Specifications:

  1. This machine can do 1~4 colors printing, creasing, edge-cutting, slotting, corner-cutting, die-cutting, creasing, etc. at one process.
  2. Electric appliances of whole machine adopt excellent domestic products.
  3. Adopt cross slider transmission. Adopt spouting style cycle lubricate.
  4. All rollers chrome plated, high grade rubber and anilox roller, print elegant pattern.
  5. Adopt pneumatic uplift plate, pneumatic lock close, electric equal ink, pneumatic supply ink, electric separate and retune with pneumatic brakes, etc.
  6. Phase adjustment adopts planet gear structure, digital input.
  7. Slotting unit four knives combined adjustment for carton box height.
  8. Die-cutting unit equipped with auto repairing device for longer use life.
  9. Removable Slotting device to be installed on Rotary Die-cutter unit to save cost as optional.
  10. Auto Feeder for Chain type machine to save labor as optional.

Technical Parameters:



Model 920 1224 1428 1632
Max Sheet Size 920*2000mm 1200*2400mm 1450*2800mm 1600*3200mm
Min Sheet size 300*500mm 360*500mm 450*600mm 500*600mm
Max Printing Area 920*1800mm 1200*2200mm 1450*2600mm 1600*3000mm
Min Slotting Distance

120*120*120*120mm

120*120*120*120mm 140*140*140*140mm 140*140*140*140mm
Max Slot Depth 230mm 300mm 360mm 400mm
Max Die-cutting Size 800*1800mm 1100*2200mm 1350*2600mm 1500*3000mm
Max Stacking Height 1500mm 1500mm 1500mm 1500mm
Design Speed 60pcs/min 60pcs/min 60pcs/min 60pcs/min



Semi Auto Carton Box Manufacturing Machine / Flexo Printer Slotter Machine Chain Feeder 0
