YUSH CARTON MACHINE COMPANY
To supply customers, most suitable machine & best quality service, at most reasonable cost

|
| Place of Origin: | China |
| Brand Name: | YUSH |
| Certification: | CE |
| Model Number: | ZH |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 15,000~50,000 per set |
| Packaging Details: | well packaged to loaded in container |
| Delivery Time: | 30~60 working days |
| Payment Terms: | T/T |
| Supply Ability: | 15 sets per month |
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Function: | Automatic Carton Box Folding Gluing Machine | Warranty: | One Year |
| Size: | Customized | Speed: | Customized |
| Color: | Customized | Voltage: | Made To Customer Request |
| High Light: | corrugated box making machine,carton box manufacturing plant |
||

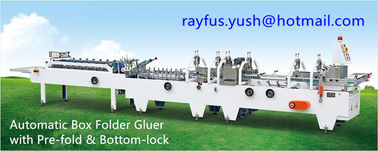

Automatic High-speed Folder Gluer Machine, pre-fold or bottom-lock, for carton box manufacturing

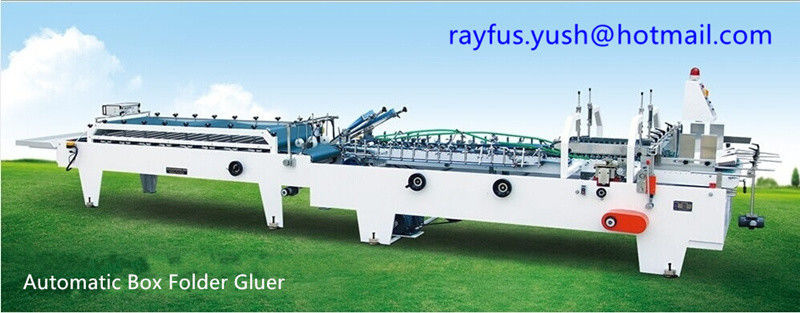

Automatic High-speed Folder Gluer Machine
Functional Specifications:
1. ZH series folder gluer is specially designed for large straight line box, large pre-fold box and large crash lock bottom box.
2. Larger sized folding section will increase the folding and gluing accuracy, and thus decrease the trumpetmouth box forming on the older generation model.
3. Upper belt of can be adjusted separately, and thus for E corrugated box, the trumpet mouth box forming phenomena will also be decreased.
4. Its motor can be separately independently and makes the collecting effect better.
5. It is ideal equipment for large box packing factories.
Technical Parameters:
| Paper Material | Paperboard 200-800g, E/F-flute Corrugated Cardboard |
| Feeding Method | Automatically and continuously feeding |
| Folding Method |
1st, 2nd and 4th folding 180°, 3rd folding 135° |
| Glue Material | Water-base cold glue |
| Max Liner Speed | 220m/min |
| Bottom-lock box type and size | |||||||
| Model | 1050 | 1250 | 1450 | 1650 | 1850 | 2050 |  |
| A | 280~600mm | ||||||
| B | 250~880mm | 250~1080mm | 250~1280mm | 250~1480mm | 250-1680mm | 250-1880mm | |
| C | Min: 15mm | ||||||
| D | Min: 150mm | ||||||
| F | Min: 120mm | ||||||
| Common box type and size | |||||||
| Model | 1050 | 1250 | 1450 | 1650 | 1850 | 2050 | |
| A | 120~700mm | ||||||
| B | 200~900mm | 200~1100mm | 200~1300mm | 200~1500mm | 200-1700mm | 200-1900mm | |
| C | Min: 15mm | ||||||
| D | Min: 150mm | ||||||
| F | Min: 120mm | ||||||
