High Table Carton Box Manufacturing Machine / Surface Paper Flute Laminator Machine

High Table Carton Box Manufacturing Machine / Surface Paper Flute Laminator Machine

High Table Carton Box Manufacturing Machine / Surface Paper Flute Laminator Machine
High Table Carton Box Manufacturing Machine / Surface Paper Flute Laminator Machine
High Table Carton Box Manufacturing Machine / Surface Paper Flute Laminator Machine
Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: BZJ-B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 20,000~30,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 15~30 working days
Payment Terms: T/T
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Function: Cardboard Sheet Laminating With Surface Paper Warranty: One Year
Size: Customized Speed: Customized
Color: Customized Voltage: Made To Customer Request
High Light:

carton manufacturing machine

,

carton box manufacturing plant

,

surface paper flute laminator machine

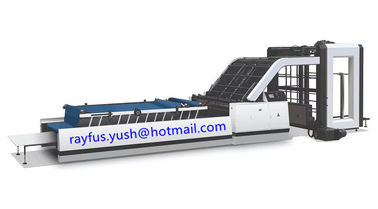

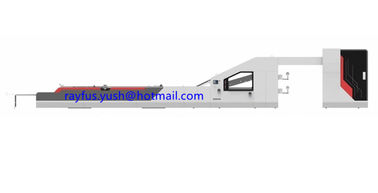

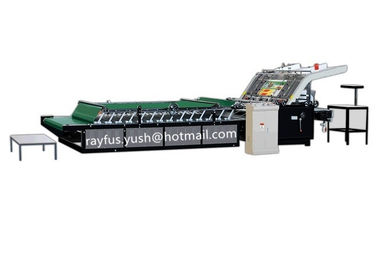

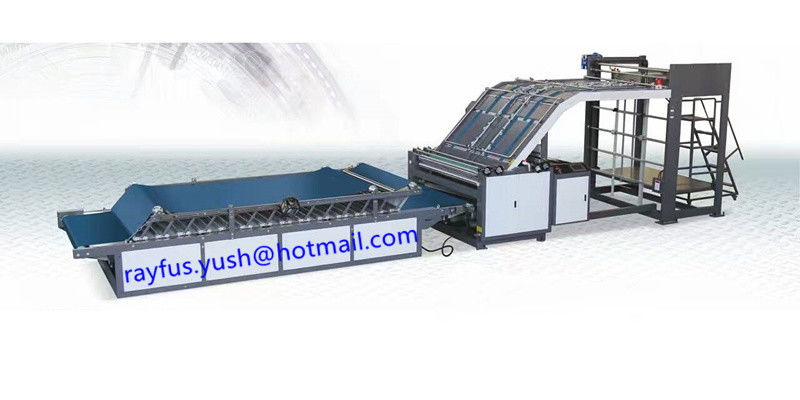

Semi-auto High-table Flute Laminator, cardboard sheet laminate with surface paper, high precision



Semi-auto High-table Flute Laminator



Functional Specifications:

  1. Adopts bottom paper vacuum adsorption feeding, surface paper manual feeding. Easy operation, accurate transmission, bottom & surface paper photoelectric control, special front gauge fix position, bottom paper never go ahead.
  2. The pressing part adopt suspension roller pressing, to keep the board uniform stress, steady conveying, making the board beautiful and smooth, pressing belt could move front & behind, suitable for many kinds of paperboard sizes.
  3. All the machine main components adopt the famous company original products, to guarantee long use life and nice stability.
  4. Full-automatic model 3-ply or 5-ply corrugated cardboard laminator machine as optional.

Technical Parameters:



Model 1300 1450 1600
Max Sheet Size 1300*1100mm 1450*1100mm 1600*1200mm
Min Sheet Size 360*360mm
Surface Paper ≥150gsm
Bottom Sheet Corrugated Cardboard or Paperboard ≥ 350gsm
Laminating Precision ±1mm
Design Speed 100pcs/min
Weight 4000kg 4500kg 5000kg
Dimension 12000*2000*1800mm 12000*2150*1800mm 12000*2300*1800mm



High Table Carton Box Manufacturing Machine / Surface Paper Flute Laminator Machine 0



YUSH CARTON MACHINE, your best supplier for Corrugated Cardboard & Carton Box Making Machines

Sincerely, welcome you to join our cooperator team, we shall repay you with top-notch products and perfect services.



Tag:

carton box manufacturing plant,

carton manufacturing machine,

corrugated box making machine
