Helical Knife Automatic Corrugated Box Making Plant Cross Cutting Industrial

Helical Knife Automatic Corrugated Box Making Plant Cross Cutting Industrial

Helical Knife Automatic Corrugated Box Making Plant Cross Cutting Industrial
Helical Knife Automatic Corrugated Box Making Plant Cross Cutting Industrial
Helical Knife Automatic Corrugated Box Making Plant Cross Cutting Industrial
Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: NC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 30,000~80,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 30~60 working days
Payment Terms: T/T
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Function: Cross-cutting Corrugated Cardboard To Sheet Warranty: One Year
Size: Customized Speed: Customized
Color: Customized Voltage: Made To Customer Request
High Light:

automatic carton making machine

,

carton manufacturing machine

,

corrugated box rotary cut off machine

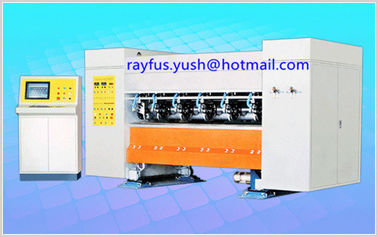

NC Rotary Cut-off Machine, helical-knife, servo-control, for Corrugated Cardboard Production Line

NC Helical-knife Rotary Cut-off


Technical Parameters:



1) Uses the independent oil pump and the filter coordinates two groups of copper tubes to distribute in various gears position for the oil, the lubrication and cooling.
2) Helical knife structure, type saw tooth knife, decrease cutting obstruction, low noise.
3) Balance treatment: high quality alloy steel, for blade shaft, which helps to keep it good stability.
4) Sun-shape wheels press cardboard in the front and the rear conveyer. The transporting is stable and with even pressure, which avoid jam caused or broken cardboard.
5) This type of Cut-off just consume the one of third energy compare with the common cutter with its especial structure, economize above 70% energy to get more money.
6) Exact and adjustable on gap gear assure knife-edge joggle exactly. Running balanceable.
7) Computer system to keep order. Man-machine conversation system NC. Automatic adjust cutting speed by cardboard specification and matching.

8) The screen displays various production messages. Can consult, modification, super addition and cancel order during running machine.



Technical Parameters:


Max Effective Width 1100~2500mm
Cutting Length 500~9999mm
Cutting Precision ±1.0mm
Design Speed 100~250m/min
Working Speed 80~220m/min

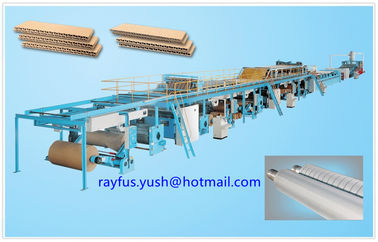

 3/5/7-layer Corrugated Cardboard Production Line
