YUSH CARTON MACHINE COMPANY
To supply customers, most suitable machine & best quality service, at most reasonable cost

|
| Place of Origin: | China |
| Brand Name: | YUSH |
| Certification: | CE |
| Model Number: | SF-C |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 20,000~150,000 per set |
| Packaging Details: | well packaged to loaded in container |
| Delivery Time: | 30~60 working days |
| Payment Terms: | T/T |
| Supply Ability: | 15 sets per month |
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Function: | Single Facer Corrugating Machine | Warranty: | One Year |
| Size: | Customized | Speed: | Customized |
| Color: | Customized | Voltage: | Made To Customer Request |
| High Light: | double facer corrugated machine,automatic carton making machine,corrugated fingerless type single facer |
||
Technical Parameters:

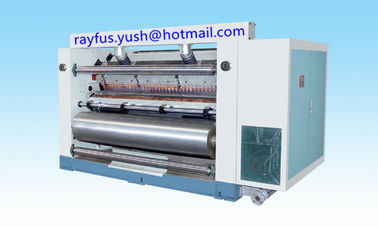

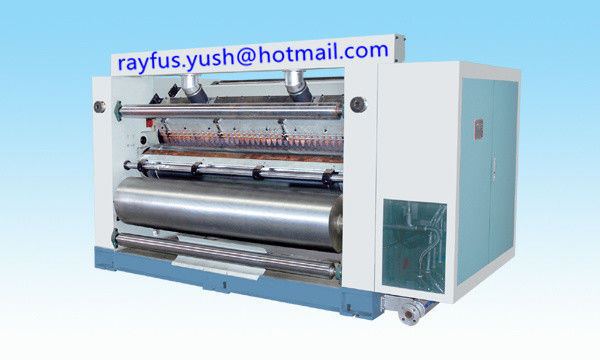

1) Fingerless vacuum suction type single facer, the upper and lower corrugated roller made of 48CrMo alloy steel, with hearted treatment, the hardness is above HRC58o-60°The surface is well treated by grind and Chrome-plated or Tungsten-carbide-coated.
2) Upper and lower corrugated roller are unit assemblage, the whole corrugated rollers group can be move and quick replacement, to change flute type quickly.
3) Glue section are unit assemblage, whole section can be moved by track,save maintenance time.
4) Frequency conversion motor as main drive, independent gear box connect with three gimbals axis, Inverter to make step less speed regulation for save power, and to keep one communication connector for production management.
5) Oil immersed type lubricating to reduce noise keep running stable, prolong the use life of gear.
6) Adopt Glue width motorized dividing to match the paper width. Idle running motor for glue applicator roll to avoid glue dry. Adjustment for gap between glue roller and doctor roller by electric or manual are optional, Digital read out for the gap between glue roll and doctor roll is optional.
7) Adjustment for corrugated roller, pressure roller, and glue roller by pneumatic system.
8) With preheater for liner paper and steam spray device for medium paper.
9) Bearing for corrugated rollers, and pressure roller adopt high-temperature lubricate grease to keep running smoothly and durably.
Technical Parameters:
| Max Effective Width | 1100~2500mm |
| Flute Roller Diameter | 280~450mm |
| Flute Type | A/C/B/E/F/G flute, made to customer request |
| Design Speed | 100~250m/min |
| Heating Method | Steam heating |
| Working Speed | 80~220m/min |

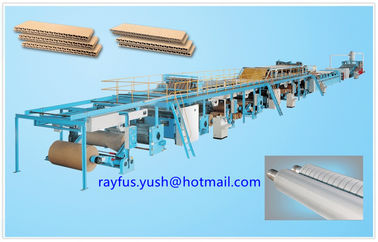

3/5/7-layer Corrugated Cardboard Production Line
YUSH CARTON MACHINE, your best supplier for Corrugated Cardboard & Carton Box Making Machines
Sincerely, welcome you to join our cooperator team, we shall repay you with top-notch products and perfect services.
