YUSH CARTON MACHINE COMPANY
To supply customers, most suitable machine & best quality service, at most reasonable cost

|
| Place of Origin: | China |
| Brand Name: | YUSH |
| Certification: | CE |
| Model Number: | SF-D |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 100,000~250,000 per set |
| Packaging Details: | well packaged to loaded in container |
| Delivery Time: | 30~60 working days |
| Payment Terms: | T/T |
| Supply Ability: | 15 sets per month |
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Function: | Single Facer Corrugating Machine, Quick Change Roller | Warranty: | One Year |
| Size: | Customized | Speed: | Customized |
| Color: | Customized | Voltage: | Made To Customer Request |
| High Light: | double facer corrugated machine,carton manufacturing machine,corrugated cassette type single facer |
||
Technical Parameters:

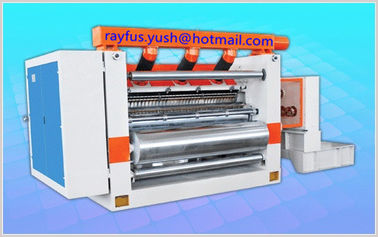

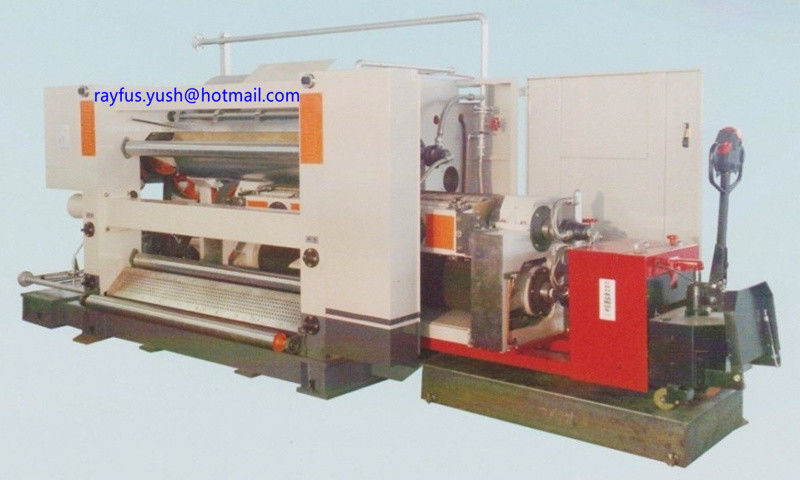

1) Cassette Quick Change Roller single Facer adopt negative pressure design, helps flute paper press evenly and closer on surface of corrugating roller, perfect forming and even gluing on flute tip, better laminating with line paper.
2) Quick change corrugator roller in 15 munities, while replacing corrugating roller, the whole complete roller set with cassette to delivery into the machine matched and fixed by hydraulic system on base of machine.
3) Corrugating roller, pressure roller and gluing roller adopt high stability air bag control system, with pneumatic control buffer effect.
4) Gluing width motorized to match paper width, idle running motor for gluing roller to avoid glue dry. Gap between gluing roller and doctor roller adjust by electrical, digital read out. Moveable type gluing unit, convenient to clean and maintain.
5) Simple operation control system, touch screen with colorful displays operation state, easy operation.
6) Build-in pre-conditioner with proportional spraying device, to control flute paper temperature and moisture.
Technical Parameters:
| Max Effective Width | 1100~2500mm |
| Flute Roller Diameter | 320~405mm |
| Flute Type | A/C/B/E/F/G flute, made to customer request |
| Design Speed | 150~250m/min |
| Heating Method | Steam heating |
| Working Speed | 120~220m/min |

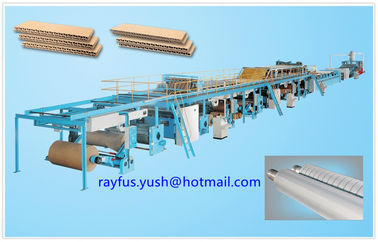

3/5/7-layer Corrugated Cardboard Production Line
YUSH CARTON MACHINE, your best supplier for Corrugated Cardboard & Carton Box Making Machines
Sincerely, welcome you to join our cooperator team, we shall repay you with top-notch products and perfect services.
