Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: BFY-NC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 50,000~80,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 30~60 working days
Payment Terms: T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Function: Computer-control Slitting And Creasing Corrugated Cardboard Warranty: One Year
Size: Customized Speed: Customized
Color: Customized Voltage: Made To Customer Request
High Light:

double facer corrugated machine

,

automatic carton making machine

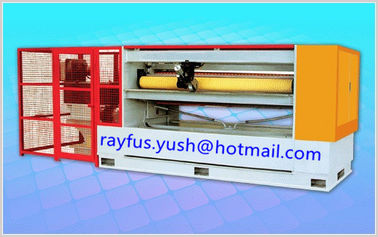

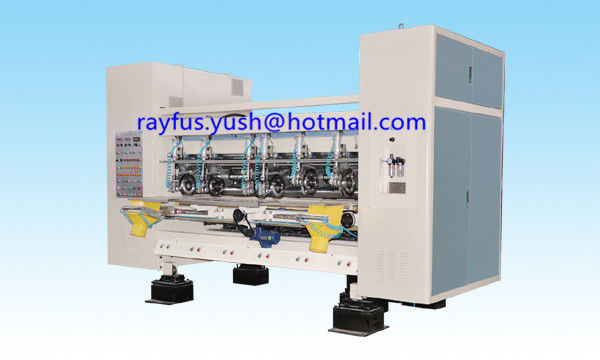

NC Thin Blade Slitter Scorer, computer servo control, for Corrugated Cardboard Production Line

NC Thin Blade Slitter Scorer


Technical Parameters:



1) Memory of 999 orders, non-stop changeover or manual change over can be realized.
2) Change over quickly, within 3 to 8 seconds. Application of two machines can realize non-speed reduction changeover.
3) Automatic synchronize with the corrugated line and can also get in line with manufacture management system. High compatibility.
4) High quality imported industry computer and PLC equipped composing the CNC system.
5) There are three types of scores: concave-convex(single wall), concave-convex(double wall) and convex-flat, which can also be alternated with electrical system Scoring can also be computer controlled with fine scoring results.
6) Thin tungsten steel alloy blade, sharp and long life of over 8 million meters.
7) Computer controlled auto grinding and manual grinding also applicable. Alternative grinding the blade when slitting the board, it can increase efficiency.
8) Imported synchronous belt applied for conveying with higher precision, longer life and lower noise.



Technical Parameters:


Max Effective Width 1100~2500mm
Slitting Knife 4~6pcs
Min Slitting Distance  200mm
Scoring Wheel 6~10pairs
Min Scoring Distance 0
Design Speed 150~250m/min
Working Speed 120~220m/min

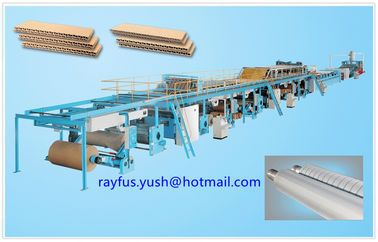

 3/5/7-layer Corrugated Cardboard Production Line


Thin Blade Slitter Scorer / Carton Manufacturing Machine Computer Servo Control 0
