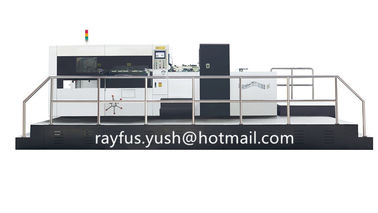

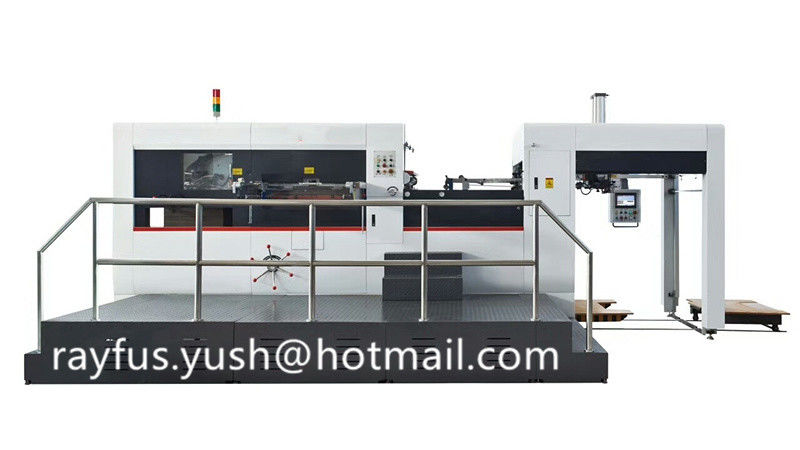

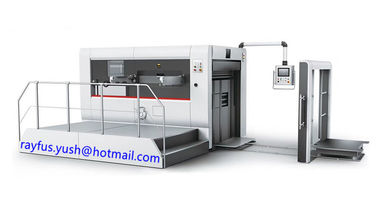

Automatic Carton Box Manufacturing Machine / Flat Bed Die Cutting Machine

Automatic Carton Box Manufacturing Machine / Flat Bed Die Cutting Machine

Automatic Carton Box Manufacturing Machine / Flat Bed Die Cutting Machine
Automatic Carton Box Manufacturing Machine / Flat Bed Die Cutting Machine
Automatic Carton Box Manufacturing Machine / Flat Bed Die Cutting Machine
Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: MY-A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 80,000~150,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 30~60 working days
Payment Terms: T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Function: Carton Box Die Cutting And Creasing Machine Warranty: One Year
Size: Customized Speed: Customized
Color: Customized Voltage: Made To Customer Request
High Light:

carton manufacturing machine

,

carton box manufacturing plant

Automatic Flatbed Die-cutting Machine, high efficiency and precision, for carton box manufacturing



Automatic Flatbed Die-cutting Machine



Functional Specifications:

  1. Adopt automatic top suction head feeding system, more suitable for paperboard or thin E-flute corrugated cardboard, equipped with automatic stacking unit.
  2. Front, back and side position mechanism ensures great precision of die-cutting.
  3. Adopt intermittent mechanism with high precision, air clutch, pneumatic locking mechanism, programmable controller and man-machine interface.
  4. The interface can display various digital information of machine such as working speed, amount of sheet processed, total running time, etc.
  5. It is easy to eliminate troubles according to the display of trouble shooting.
  6. Adopt transducer to control the main motor in achieving stepless speed variation.
  7. Equipped with sensors safe-ensuring devices to guarantee safety of operators.
  8. Front and back pressure can be adjusted separately. It is convenient to stop the machine by hand, can also realize die-cutting without gripper edge.
  9. Semi-auto model for lower cost , or with Stripping unit to save labor as optional.

Technical Parameters:



Model MY-1060A MY-1100A MY-1200A MY-1300A MY-1500A
Max Sheet Size 1060*750mm 1100*780mm 1200*830mm 1300*920mm 1500*1100mm
Min Sheet Size 400*350mm 400*370mm 400*380mm 450*400mm 500*450mm
Max Die-cutting Size 1040*730mm 1080*760mm 1180*810mm 1280*900m 1480*1080mm
Max Cutting Pressure 350N/cm2 350N/cm2 350N/cm2 350N/cm2 380N/cm2
Cutting Material Paperboard 200~2000gsm, or corrugated cardboard 1~6mm
Max Feeding Height 1100mm
Max Stacking Height 1100mm
Design Speed 7000pcs/hour 7000pcs/hour 6500pcs/hour 6000pcs/hour 5500pcs/hour
Motor Power 14kw 15kw 16kw 18kw 20kw
Weight 14ton 15ton 16ton 18ton 20ton
Dimension 8*4*2.5m 8*4*2.5m 8*4*2.5m 8*4*2.5m 8*4.5*2.5m



Automatic Carton Box Manufacturing Machine / Flat Bed Die Cutting Machine 0



YUSH CARTON MACHINE, your best supplier for Corrugated Cardboard & Carton Box Making Machines

Sincerely, welcome you to join our cooperator team, we shall repay you with top-notch products and perfect services.
