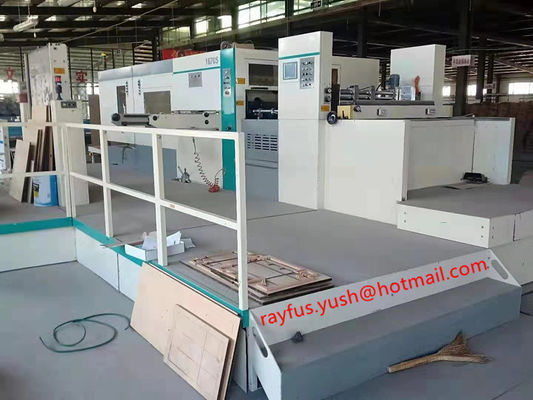

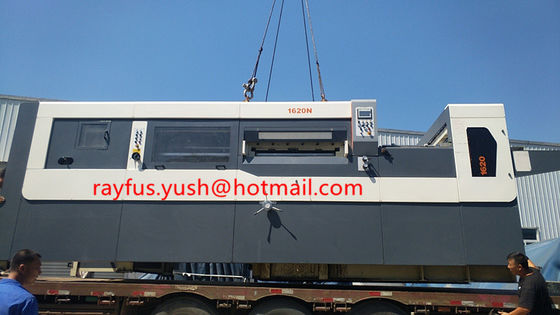

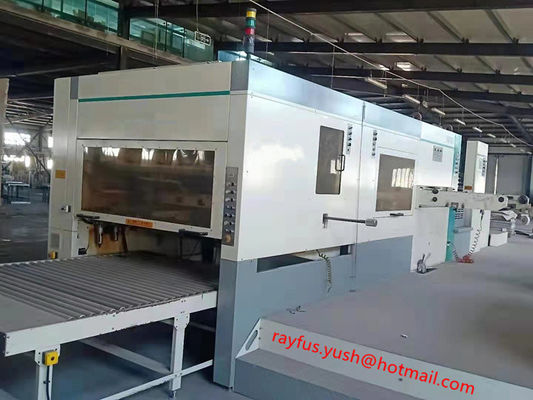

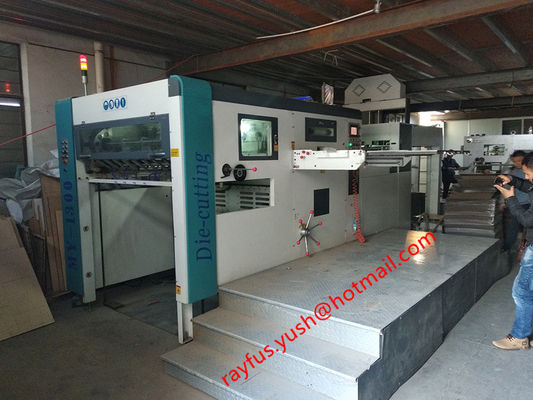

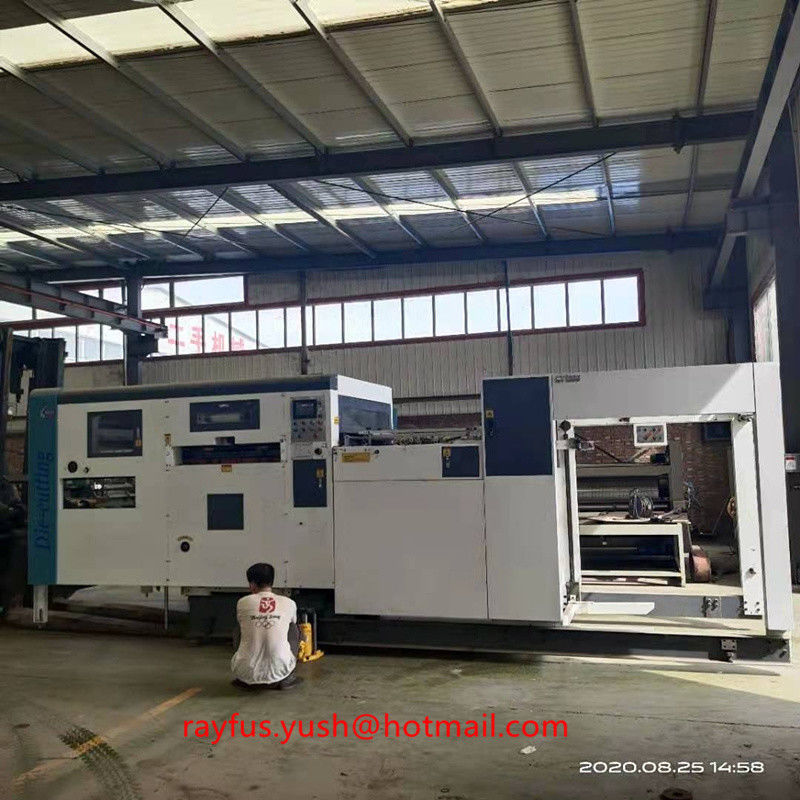

Cardboard 1-8mm Automatic Flatbed Die Cutter Used Corrugated Machinery

Cardboard 1-8mm Automatic Flatbed Die Cutter Used Corrugated Machinery

Cardboard 1-8mm Automatic Flatbed Die Cutter Used Corrugated Machinery
Cardboard 1-8mm Automatic Flatbed Die Cutter Used Corrugated Machinery
Cardboard 1-8mm Automatic Flatbed Die Cutter Used Corrugated Machinery
Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: MY
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 50,000~150,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 15~30 working days
Payment Terms: T/T
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Name: Used Automatic Flatbed Die-cutter Type: Automatic
Max Model: 1620*1200mm Min Model: 1050*750mm
Max Cutting Pressure: 350N/cm2 Speed: 5000~7000pcs/hour
Cutting Material: 1~8mm Use: Paperboard Corrugated Cardboard Die-cutting And Creeasing
High Light:

1mm automatic flatbed die cutter

,

8mm automatic flatbed die cutter

,

used automatic flatbed die cutter

Used Automatic Flatbed Die-cutter Machine, high efficiency, high precision, paperboard or corrugated



Used Automatic Flatbed Die-cutter Machine

Functional Specifications:

  1. Adopt automatic top suction head feeding system, more suitable for paperboard or thin E-flute corrugated cardboard, equipped with automatic stacking unit.
  2. Front, back and side position mechanism ensures great precision of die-cutting.
  3. Adopt intermittent mechanism with high precision, air clutch, pneumatic locking mechanism, programmable controller and man-machine interface.
  4. The interface can display various digital information of machine such as working speed, amount of sheet processed, total running time, etc.
  5. It is easy to eliminate troubles according to the display of trouble shooting.
  6. Adopt transducer to control the main motor in achieving stepless speed variation.
  7. Equipped with sensors safe-ensuring devices to guarantee safety of operators.
  8. Front and back pressure can be adjusted separately. It is convenient to stop the machine by hand, can also realize die-cutting without gripper edge.

Technical Parameters:



Model MY-1060A MY-1100A MY-1200A MY-1300A MY-1500A
Max Sheet Size 1060*750mm 1100*780mm 1200*830mm 1300*920mm 1500*1100mm
Min Sheet Size 400*350mm 400*370mm 400*380mm 450*400mm 500*450mm
Max Die-cutting Size 1040*730mm 1080*760mm 1180*810mm 1280*900m 1480*1080mm
Max Cutting Pressure 350N/cm2 350N/cm2 350N/cm2 350N/cm2 380N/cm2
Cutting Material Paperboard 200~2000gsm, or corrugated cardboard 1~6mm
Max Feeding Height 1100mm
Max Stacking Height 1100mm
Design Speed 7000pcs/hour 7000pcs/hour 6500pcs/hour 6000pcs/hour 5500pcs/hour
Motor Power 14kw 15kw 16kw 18kw 20kw
Weight 14ton 15ton 16ton 18ton 20ton
Dimension 8*4*2.5m 8*4*2.5m 8*4*2.5m 8*4*2.5m 8*4.5*2.5m



Used Automatic Lead-edge Flatbed Die-cutter with Stripping, high efficiency and precision, corrugated

Used Automatic Lead-edge Flatbed Die-cutter with Stripping



Functional Specifications:

  1. Feeding Unit: automatic lead-edge feeder, servo control vacuum suction feedingcorrugated cardboard smooth, to endure suction more stable.
  2. Bridge Unit: imported transmitting belt with high wear-resistant pressing wheel, hand wheel to ensure smooth transmission, intelligent photoelectric detection, to guarantee positioning accuracy.
  3. Die-cutting Unit: bearing and electrical parts adopt famous brands domestic and international, precise control, safety design of plate and die template, easy to move, rotary device design to enable install and adjust template more convenient.
  4. Stripping Unit: stripping template adopt central positioning system, automatic clamping, aligning fast and convenient. Stripping frame adopt motor-controlled by lifting device, automatically remove four sides and intermediate waste, to ensure clear waste clean and neat, high production efficiency.
  5. Stacking Unit: automatic collect and stack greatly improve work efficiency, photoelectric device to ensure delivery fast and smooth, safe and reliable.

Technical Parameters:



Model MY-1300QF MY-1500QF MY-1620QF
Max Sheet Size 1300*920mm 1500*1100mm 1620*1200mm
Min Sheet Size 350*450mm 450*500mm 500*550mm
Max Die-cutting Size 1280*900mm 1480*1080mm 1600*1180m
Max Cutting Pressure 350N/cm2 380N/cm2 400N/cm2
Cutting Material Paperboard 200~2000gsm, or corrugated cardboard 1~8mm
Feeding Height Hydraulic Lift to fit feeding height automatically
Max Stacking Height 1200mm
Design Speed 5500pcs/hour 5000pcs/hour 4800pcs/hour
Motor Power 25kw 30kw 35kw
Weight 20ton 22ton 25ton
Dimension 10000*4000*2500mm 10000*4500*2500mm 10000*4500*2500mm



YUSH CARTON MACHINE, your best supplier for Corrugated Cardboard & Carton Box Making Machines

Sincerely, welcome you to join our cooperator team, we shall repay you with top-notch products and perfect services.
