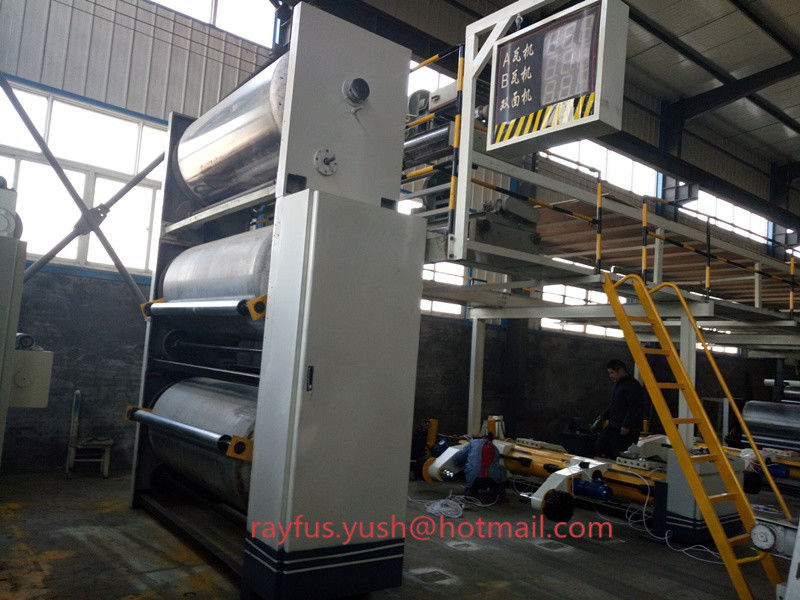

Multiple Preheater Diameter 900mm Used Corrugated Machinery

Multiple Preheater Diameter 900mm Used Corrugated Machinery

Multiple Preheater Diameter 900mm Used Corrugated Machinery
Multiple Preheater Diameter 900mm Used Corrugated Machinery
Multiple Preheater Diameter 900mm Used Corrugated Machinery
Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: RG-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 100,000~500,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 30~60 working days
Payment Terms: T/T
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Name: Used Multiple Preheater Type: Automatic
Max Width: 2200mm Min Width: 1100mm
Diameter: 600/900/1000mm Speed: 100~200m/min
Angle: 360 Degree Electrical Adjust Use: Single Faced Or Surface Paper Preheating
High Light:

diameter 900mm used corrugated machinery

,

multiple preheater used corrugated machinery

,

900mm diameter used corrugated machinery

Used Multiple Preheater, single faced or surface paper heating for Corrugated Cardboard Production Line

Used Multiple Preheater


Technical Parameters:



1) Electrical motion heating angle adjustment. Adjustable range of 60°-270°

2) Surface of all rollers are well treated by grind and plated hard chrome, glabrous and durable.

3) Adopt dishing seal or plat design. Insure reel paper be heated averagely.

4) Duplex preheater for 3-layer corrugator line, Triplex preheater preheater for 5-layer corrugator line.



Technical Parameters:



Max Effective Width 1100~2500mm
Heating Roller Diameter 600~1000mm
Heating Angle 60-270°
Design Speed 100~250m/min
Working Speed 80~220m/min




used Corrugator Line, 3/5/7-layer, various flute type, low-medium-high speed


used 3/5/7-layer Corrugated Cardboard Production Line

We mainly making brand-new machines, also help customers to find used machines if wanted!


1) 2/3/5/7-layer Corrugated Cardboard Production Line consists of the following machines, Electrical or Hydrualic Shaftless Mill Roll Stand, Automatic Splicer, Single Preheater, Fingerless type Single Facer Corrugator, Overhead Conveyor Bridge, Duplex or Triplex Preheater, Single or Duplex Gluer, Double Facer, NC Thin Blade Slitter Scorer, NC Rotary Cut-off, Up or Down Conveyor & Stacker, etc.

2) Kraft Paper Reel to be corrugated and glue by Corn Starch Gum, continuously produce, slit, crease & cut to 2/3/5/7-layer Corrugated Cardboard Sheet, and then conveyor, stack and output.

3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.

4) It is the ideal and perfect equipment for corrugated cardboard and carton box factories.



Technical Parameters:


Model 3/5/7-layer
Max Effective Width 1100~2500mm
Design Speed 100~250m/min
Heating Method Steam Heating
Working Speed 80~220m/min
Workshop Suggested 3000~5000sqm
Customer-owned Parts Steam Boiler, Pipeline, Wireline, Air Compressor, etc.


Machine List:


Item Model WJ-I WJ-II WJ-III
Description 3-layer 5-layer 7-layer
1 Shaftless Paper Roll Stand 3 5 7
2 Track Rail & Paper Roll Trolley 6 10 14
3 Auto Splicer 3 5 7
4 Single Preheater 2 4 6
5 Single Facer Corrugator 1 2 3
6 Overhead Conveyor Bridge 1 1 1
7 Multiple Preheater 1 1 1
8 Gluer 1 1 1
9 Double Facer 1 1 1
10 Thin Blade Slitter Scorer 1 1 1
11 NC Helical-knife Cut-off 1 1 1
12 Conveyor Stacker 1 1 1
13 Glue Kitchen System 1 1 1
14 Internal Steam Heating System 1 1 1
15 Electricla Control System 1 1 1

Multiple Preheater Diameter 900mm Used Corrugated Machinery 0
