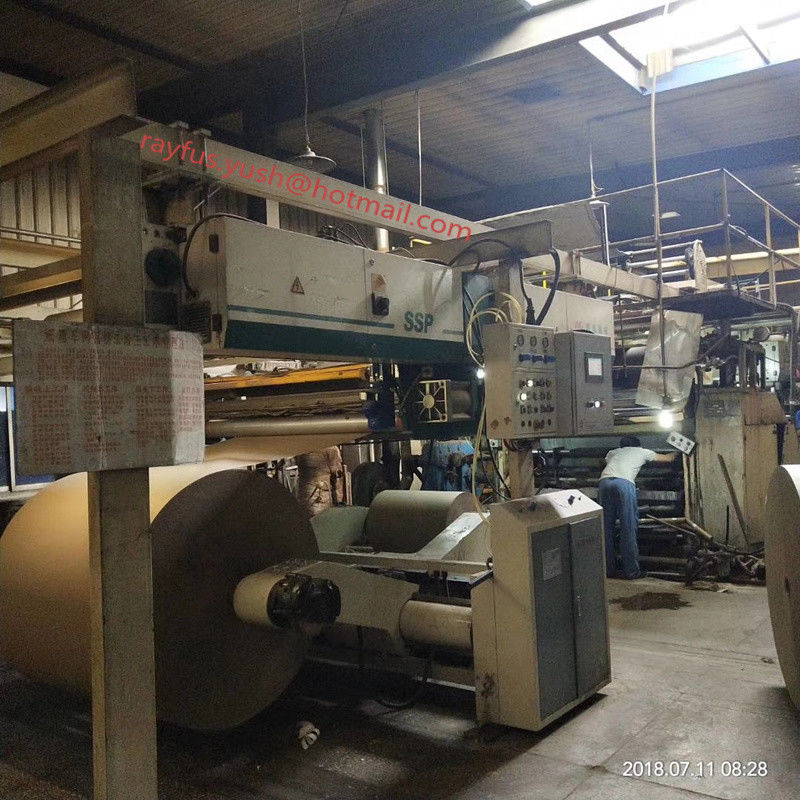

2nd Hand 2200mm 250m/Min Auto Splicer

2nd Hand 2200mm 250m/Min Auto Splicer

2nd Hand 2200mm 250m/Min Auto Splicer
2nd Hand 2200mm 250m/Min Auto Splicer
2nd Hand 2200mm 250m/Min Auto Splicer
Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: ASP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 100,000~500,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 30~60 working days
Payment Terms: T/T
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Name: Used Auto Splicer Type: Automatic
Max Width: 2200mm Min Width: 1100mm
Paper: 80~300gsm Speed: 150~250m/min
Control: Computer Use: Reel Paper End Joint Splicing
High Light:

250m/Min Auto Splicer

,

2200mm Auto Splicer

,

2nd Hand Auto Splicer

Used Auto Splicer, paper end joint splicing for Corrugated Cardboard Production Line

Used Auto Splicer


Technical Parameters:



1) Frame made of high-quality international standard material, with optimized design, beautiful appearance and stable structure.

2) Adopt famous brand magnetic powder clutch or high-precision servo tension control system, more quick and accurate.

3) Simple and quick paper preparation, Good low-gram weight paper-taking ability.

4) Equipped with touch screen, for diagnosis and maintenance procedures control.



Technical Parameters:



Max Effective Width 1100~2500mm
Max Paper Roll Diameter 1500mm
Paper Thickness 80~300gsm
Design Speed 150~250m/min
Working Speed 120~220m/min


used Corrugator Line, 3/5/7-layer, various flute type, low-medium-high speed

used 3/5/7-layer Corrugated Cardboard Production Line

We mainly making brand-new machines, also help customers to find used machines if wanted!


1) 2/3/5/7-layer Corrugated Cardboard Production Line consists of the following machines, Electrical or Hydrualic Shaftless Mill Roll Stand, Automatic Splicer, Single Preheater, Fingerless type Single Facer Corrugator, Overhead Conveyor Bridge, Duplex or Triplex Preheater, Single or Duplex Gluer, Double Facer, NC Thin Blade Slitter Scorer, NC Rotary Cut-off, Up or Down Conveyor & Stacker, etc.

2) Kraft Paper Reel to be corrugated and glue by Corn Starch Gum, continuously produce, slit, crease & cut to 2/3/5/7-layer Corrugated Cardboard Sheet, and then conveyor, stack and output.

3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.

4) It is the ideal and perfect equipment for corrugated cardboard and carton box factories.



Technical Parameters:


Model 3/5/7-layer
Max Effective Width 1100~2500mm
Design Speed 100~250m/min
Heating Method Steam Heating
Working Speed 80~220m/min
Workshop Suggested 3000~5000sqm
Customer-owned Parts Steam Boiler, Pipeline, Wireline, Air Compressor, etc.


Machine List:


Item Model WJ-I WJ-II WJ-III
Description 3-layer 5-layer 7-layer
1 Shaftless Paper Roll Stand 3 5 7
2 Track Rail & Paper Roll Trolley 6 10 14
3 Auto Splicer 3 5 7
4 Single Preheater 2 4 6
5 Single Facer Corrugator 1 2 3
6 Overhead Conveyor Bridge 1 1 1
7 Multiple Preheater 1 1 1
8 Gluer 1 1 1
9 Double Facer 1 1 1
10 Thin Blade Slitter Scorer 1 1 1
11 NC Helical-knife Cut-off 1 1 1
12 Conveyor Stacker 1 1 1
13 Glue Kitchen System 1 1 1
14 Internal Steam Heating System 1 1 1
15 Electricla Control System 1 1 1

2nd Hand 2200mm 250m/Min Auto Splicer 0
