YUSH CARTON MACHINE COMPANY
To supply customers, most suitable machine & best quality service, at most reasonable cost

|
| Place of Origin: | China |
| Brand Name: | YUSH |
| Certification: | CE |
| Model Number: | GM |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 100,000~500,000 per set |
| Packaging Details: | well packaged to loaded in container |
| Delivery Time: | 30~60 working days |
| Payment Terms: | T/T |
| Supply Ability: | 5 sets per month |

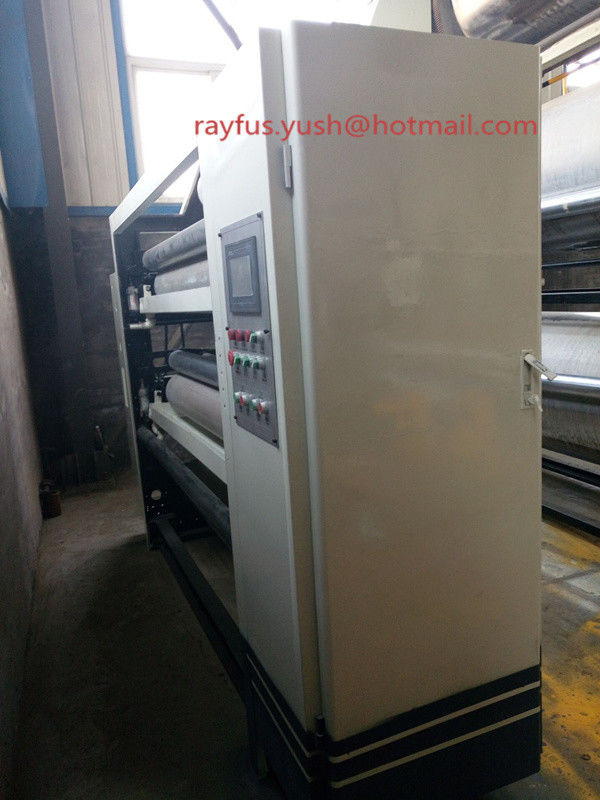

| Name: | Used Multiple Gluer Machine | Type: | Automatic |
|---|---|---|---|
| Max Width: | 2200mm | Min Width: | 1100mm |
| Layer: | Single, Duplex, Triplex | Speed: | 100~200m/min |
| Control: | Touch Screen | Use: | Pasting Glue On Corrugated Surface |
| High Light: | Triplex Corrugated Gluer Machine,Duplex Corrugated Gluer Machine,Used Corrugated Gluer Machine |
||
Technical Parameters:
1) Special line on the surface of the glue applicator roller, surface and hard chrome plating, even glue supply, low cost.
2) The glue applicator drive by frequency conversion motor with inverter. Keep the synchronization for glue applicator roller and double baker facer machine by inverter. And independent running.
3) Adjustment for gap between glue roller and doctor roller by electric or manual are optional, Digital read out for the gap between glue roll and doctor roll is optional.
4) Press roll moves up and down by pneumatic. Gap mini-adjustment by electric.
5) Self-circulating glue supplying system to avoid glue hardening and to control glue quantity Keeping the glue good quality and saving.
Technical Parameters:
| Max Effective Width | 1100~2500mm |
| Gluing Roller Diameter | 240~320mm |
| Design Speed | 100~250m/min |
| Working Speed | 80~220m/min |
used Corrugator Line, 3/5/7-layer, various flute type, low-medium-high speed
1) 2/3/5/7-layer Corrugated Cardboard Production Line consists of the following machines, Electrical or Hydrualic Shaftless Mill Roll Stand, Automatic Splicer, Single Preheater, Fingerless type Single Facer Corrugator, Overhead Conveyor Bridge, Duplex or Triplex Preheater, Single or Duplex Gluer, Double Facer, NC Thin Blade Slitter Scorer, NC Rotary Cut-off, Up or Down Conveyor & Stacker, etc.
2) Kraft Paper Reel to be corrugated and glue by Corn Starch Gum, continuously produce, slit, crease & cut to 2/3/5/7-layer Corrugated Cardboard Sheet, and then conveyor, stack and output.
3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.
4) It is the ideal and perfect equipment for corrugated cardboard and carton box factories.
Technical Parameters:
| Model | 3/5/7-layer |
| Max Effective Width | 1100~2500mm |
| Design Speed | 100~250m/min |
| Heating Method | Steam Heating |
| Working Speed | 80~220m/min |
| Workshop Suggested | 3000~5000sqm |
| Customer-owned Parts | Steam Boiler, Pipeline, Wireline, Air Compressor, etc. |
Machine List:
| Item | Model | WJ-I | WJ-II | WJ-III |
| Description | 3-layer | 5-layer | 7-layer | |
| 1 | Shaftless Paper Roll Stand | 3 | 5 | 7 |
| 2 | Track Rail & Paper Roll Trolley | 6 | 10 | 14 |
| 3 | Auto Splicer | 3 | 5 | 7 |
| 4 | Single Preheater | 2 | 4 | 6 |
| 5 | Single Facer Corrugator | 1 | 2 | 3 |
| 6 | Overhead Conveyor Bridge | 1 | 1 | 1 |
| 7 | Multiple Preheater | 1 | 1 | 1 |
| 8 | Gluer | 1 | 1 | 1 |
| 9 | Double Facer | 1 | 1 | 1 |
| 10 | Thin Blade Slitter Scorer | 1 | 1 | 1 |
| 11 | NC Helical-knife Cut-off | 1 | 1 | 1 |
| 12 | Conveyor Stacker | 1 | 1 | 1 |
| 13 | Glue Kitchen System | 1 | 1 | 1 |
| 14 | Internal Steam Heating System | 1 | 1 | 1 |
| 15 | Electricla Control System | 1 | 1 | 1 |
YUSH CARTON MACHINE, your best supplier for Corrugated Cardboard & Carton Box Making Machines
Sincerely, welcome you to join our cooperator team, we shall repay you with top-notch products and perfect services.
