Place of Origin: | China |
Brand Name: | YUSH |
Certification: | CE |
Model Number: | RG |
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD 100,000~500,000 per set |
Packaging Details: | well packaged to loaded in container |
Delivery Time: | 30~60 working days |
Payment Terms: | T/T |
Supply Ability: | 5 sets per month |

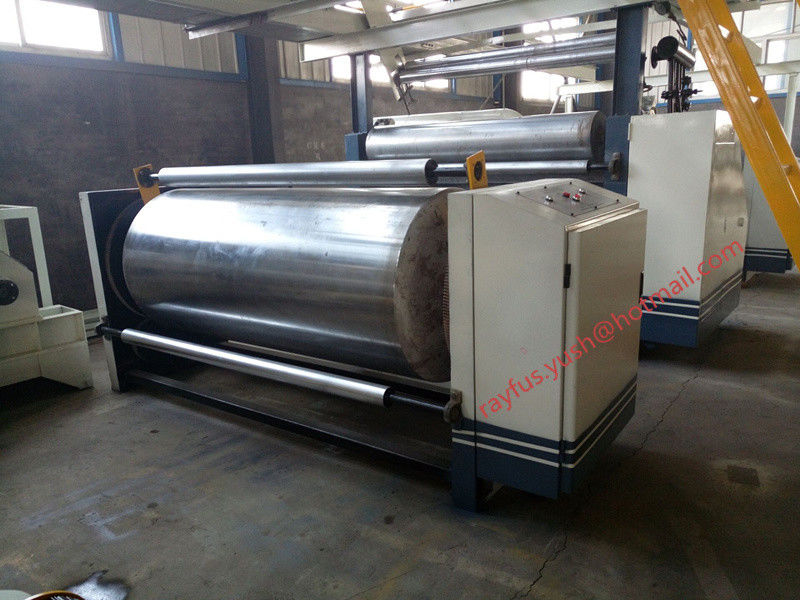

Name: | Used Single Preheater | Type: | Automatic |
---|---|---|---|
Max Width: | 2200mm | Min Width: | 1100mm |
Diameter: | 600/900/1000mm | Speed: | 100~200m/min |
Angle: | 360 Degree Electrical Adjust | Use: | Liner Or Medium Paper Preheating |
High Light: | Diameter 600mm Used Corrugated Machinery,100m/min Used Corrugated Machinery |
Technical Parameters:
1) Electrical motion heating angle adjustment. Adjustable range of 60°-270°
2) Surface of all rollers are well treated by grind and plated hard chrome, glabrous and durable.
3) Adopt dishing seal or plat design. Insure reel paper be heated averagely.
4) Single preheater for liner paper and medium paper.
Technical Parameters:
Max Effective Width | 1100~2500mm |
Heating Roller Diameter | 600~1000mm |
Heating Angle | 60-270° |
Design Speed | 100~250m/min |
Working Speed | 80~220m/min |
1) 2/3/5/7-layer Corrugated Cardboard Production Line consists of the following machines, Electrical or Hydrualic Shaftless Mill Roll Stand, Automatic Splicer, Single Preheater, Fingerless type Single Facer Corrugator, Overhead Conveyor Bridge, Duplex or Triplex Preheater, Single or Duplex Gluer, Double Facer, NC Thin Blade Slitter Scorer, NC Rotary Cut-off, Up or Down Conveyor & Stacker, etc.
2) Kraft Paper Reel to be corrugated and glue by Corn Starch Gum, continuously produce, slit, crease & cut to 2/3/5/7-layer Corrugated Cardboard Sheet, and then conveyor, stack and output.
3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.
4) It is the ideal and perfect equipment for corrugated cardboard and carton box factories.
Technical Parameters:
Model | 3/5/7-layer |
Max Effective Width | 1100~2500mm |
Design Speed | 100~250m/min |
Heating Method | Steam Heating |
Working Speed | 80~220m/min |
Workshop Suggested | 3000~5000sqm |
Customer-owned Parts | Steam Boiler, Pipeline, Wireline, Air Compressor, etc. |
Machine List:
Item | Model | WJ-I | WJ-II | WJ-III |
Description | 3-layer | 5-layer | 7-layer | |
1 | Shaftless Paper Roll Stand | 3 | 5 | 7 |
2 | Track Rail & Paper Roll Trolley | 6 | 10 | 14 |
3 | Auto Splicer | 3 | 5 | 7 |
4 | Single Preheater | 2 | 4 | 6 |
5 | Single Facer Corrugator | 1 | 2 | 3 |
6 | Overhead Conveyor Bridge | 1 | 1 | 1 |
7 | Multiple Preheater | 1 | 1 | 1 |
8 | Gluer | 1 | 1 | 1 |
9 | Double Facer | 1 | 1 | 1 |
10 | Thin Blade Slitter Scorer | 1 | 1 | 1 |
11 | NC Helical-knife Cut-off | 1 | 1 | 1 |
12 | Conveyor Stacker | 1 | 1 | 1 |
13 | Glue Kitchen System | 1 | 1 | 1 |
14 | Internal Steam Heating System | 1 | 1 | 1 |
15 | Electricla Control System | 1 | 1 | 1 |
YUSH CARTON MACHINE, your best supplier for Corrugated Cardboard & Carton Box Making Machines
Sincerely, welcome you to join our cooperator team, we shall repay you with top-notch products and perfect services.
