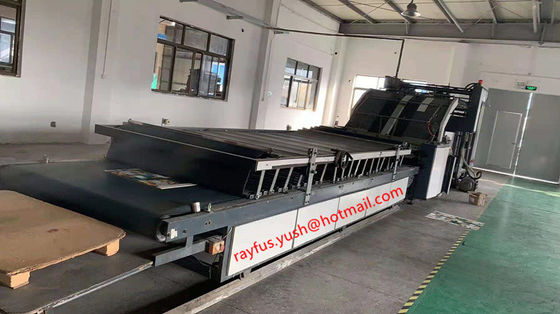

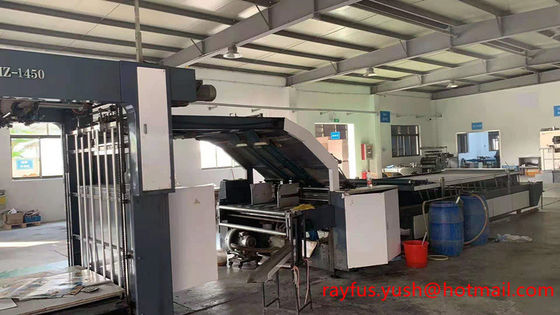

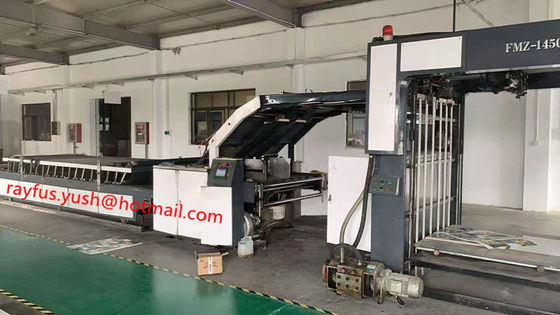

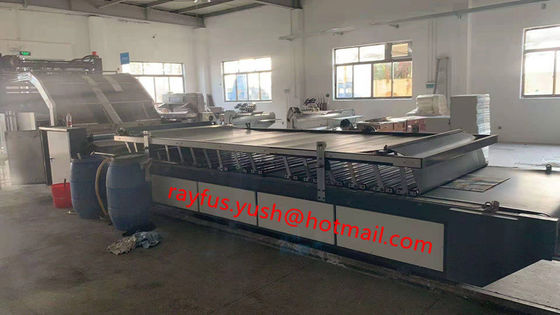

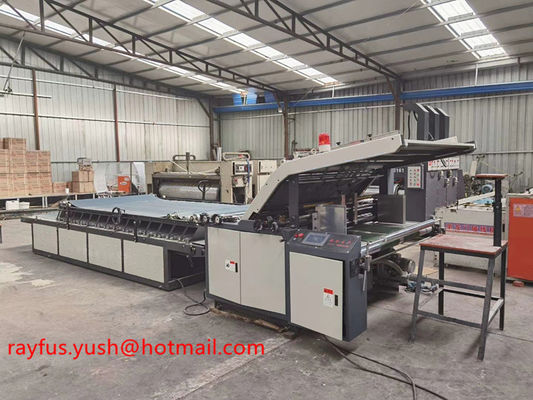

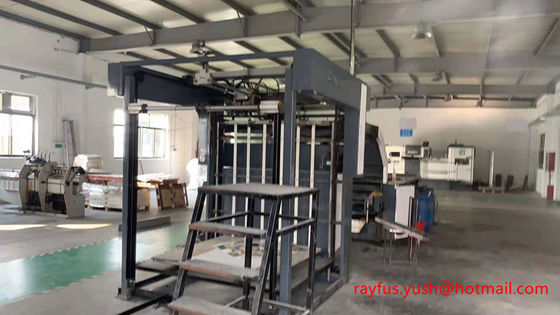

Second Hand 3 Layer Automatic Flute Laminator Machine

Second Hand 3 Layer Automatic Flute Laminator Machine

Second Hand 3 Layer Automatic Flute Laminator Machine
Second Hand 3 Layer Automatic Flute Laminator Machine
Second Hand 3 Layer Automatic Flute Laminator Machine
Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: BZJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 10,000~25,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 15~30 working days
Payment Terms: T/T
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Name: Used Automatic Flute Laminator Tyep: Automatic
Max Model: 1600*1200mm Min Model: 1300*1100mm
Layers: 3-layer Or 5-layer Speed: 120pcs/min
Surfacer Paper: 180gsm+ Maintenance: Corrugated Cardboard Sheet Laminating With Surface Paper
High Light:

second hand automatic flute laminator


3 Layer automatic flute laminator


second hand flute laminator machine

Used Automatic Flute Laminator, cardboard sheet laminate with surface paper, high precision

Used Automatic Flute Laminator


Functional Specifications:

  1. BZJ-Q Series Automatic Laminator is the fourth-generation product of back-push laminating machine, easy operation, simple maintenance, high speed, low noise, high accuracy, etc.
  2. Adopt high-tech control system, automatically supply glue while machine working, equipped with glue circulation system, glue adjustable according to different cardboard laminating requirements, glue coating on the cardboard uniform, to ensure nice product quality and save glue cost also.
  3. This machine adopts suction belt to transmit corrugated cardboard, suitable for A/B/C/D/E/F flutes, 3-layer, high-speed, high-precision and smoothly output.
  4. The pressing part adopt suspension roller pressing, to keep the board uniform stress, steady conveying, making the board beautiful and smooth, pressing belt could move front & behind, suitable for many kinds of paperboard sizes.

Technical Parameters:


Model 1300 1450 1600
Max Sheet Size 1300*1100mm 1450*1100mm 1600*1200mm
Min Sheet Size 400*400mm
Surface Paper ≥180gsm
Bottom Sheet Corrugated Cardboard or Paperboard ≥ 450gsm
Laminating Precision ±1mm
Design Speed 120pcs/min
Weight 5000kg 5500kg 6000kg
Dimension 12000*2000*2500mm 12000*2150*2500mm 12000*2300*2500mm
