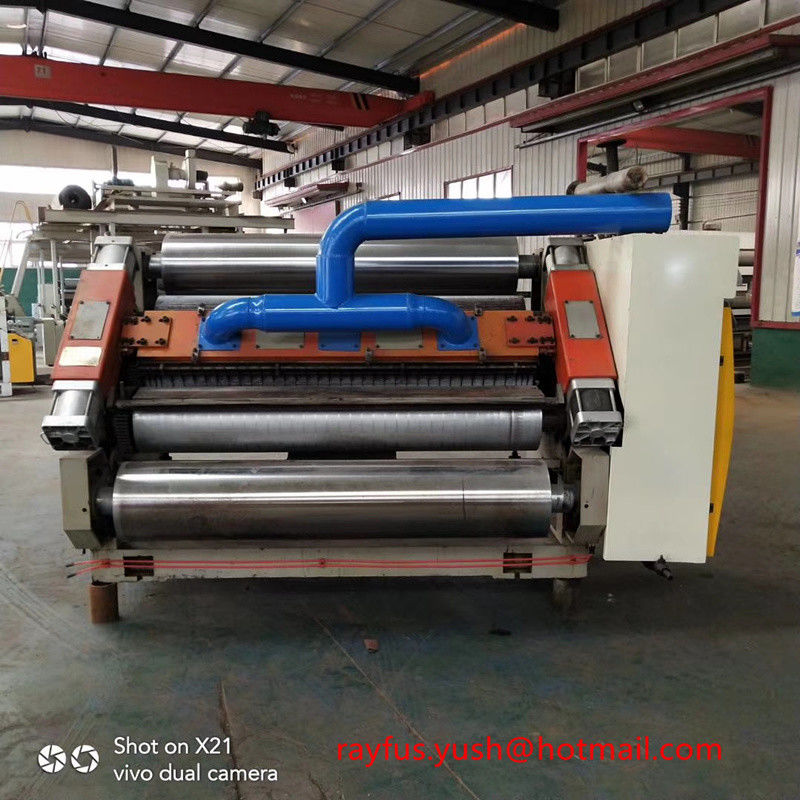

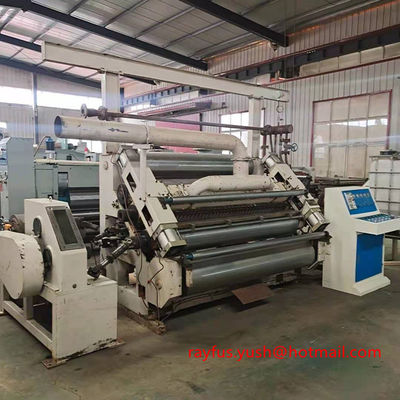

Vacuum Suction 1800mm Single Facer Used Corrugated Machinery

Vacuum Suction 1800mm Single Facer Used Corrugated Machinery

Vacuum Suction 1800mm Single Facer Used Corrugated Machinery
Vacuum Suction 1800mm Single Facer Used Corrugated Machinery
Vacuum Suction 1800mm Single Facer Used Corrugated Machinery
Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: SF-S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 5,000~25,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 15~30 working days
Payment Terms: T/T
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Name: Used Fingerless Type Single Facer Type: Automatic
Max Model: 2200mm Min Model: 1100mm
Flute Type: A/B/C/E/F Speed: 100~150m/min
Transmission: Vacuum Suction Voltage: Single Facer Corrugator For Corrugated Cardboard Making
High Light:

1800mm Used Corrugated Machinery

,

Vacuum Suction Used Corrugated Machinery

,

Used Single Facer Corrugated Machinery

Used Fingerless type Single Facer, vacuum suction, various flute type, for single facer corrugator line

Used Fingerless type Single Facer Corrugator



Functional Specifications:

  1. Paper transmit adopt vacuum suction method, with wind control system, to keep flute profiles stable of the lower-roller in the condition of running up.
  2. Corrugating roller, pressure roller and glue roller by pneumatic adjustment.
  3. Upper-lower corrugating rollers are made of 48CrMo high quality alloy steel, after heat-treatment. The hardness HRC58°-60°, surface after grinded. Gluing roller surface are treated by special mesh snick and chrome-plated.
  4. Bearing of corrugators roller and pressure roller adopt high temperature lubricate grease. Glue parts auto supply glue circularly.
  5. Chain driving, gear box oil immersed lubricating to reduce noise and run stable. (universal joint transmission as optional)

Technical Parameters:



Model SF-280S SF-320S
Max Effective Width 1100~1800mm 1100~2200mm
Corrugating Roller Φ280mm, 48CrMo alloy steel, Chrome-plated Φ320mm, 48CrMo alloy steel, Chrome-plated
Flute Type made to customer request made to customer request
Design Speed 80m/min 100m/min
Working Speed 20~40m/min (Electrical heating) 30~50m/min (Electrical heating)
40～60m/min (Steam heating) 60~80m/min (Electrical heating)


used Single Facer Corrugator Line, 2-layer corrugated paperboard making, to sheet or roll

Used Single Facer Corrugator Line



Functional Specifications:

  1. This line consists of three machines, Shaftless Mill Roll Stand, SF-S Fingerless type Single Facer, NC Rotary Sheeter Stacker, Rewidner, with Glue Mixer and Pump, etc.
  2. Kraft Paper Reel to corrugate and glue by Corn Starch Gum, continuously produce and cut to Single Faced Corrugated Cardboard Sheet, and then through laminating Machine to laminate to 3/5-ply corrugated sheet, press and fix.
  3. The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.
  4. It is the ideal and perfect equipment for small or medium carton factories.

Technical Parameters:



Model DW-80S DW-100S
Max Effective Width 1100~1800mm 1100~2200mm
Max Paper Roll Diameter 1400mm 1500mm
Max Paper Roll Weight 2000kg 3000kg
Corrugating Roller Φ280mm, 48CrMo alloy steel, Chrome-plated Φ320mm, 48CrMo alloy steel, Chrome-plated
Flute Type made to customer request made to customer request
Slitting Knife 4 pairs 4pairs
Cutting Length 100~2400mm 100~2400mm
Max Stacking Length 1500mm 1500mm
Design Speed 80m/min 100m/min
Working Speed 20~40m/min (Electrical heating) 30~50m/min (Electrical heating)
40～60m/min (Steam heating) 60~80m/min (Steam heating)

Vacuum Suction 1800mm Single Facer Used Corrugated Machinery 0


YUSH CARTON MACHINE, your best supplier for Corrugated Cardboard & Carton Box Making Machines

Sincerely, welcome you to join our cooperator team, we shall repay you with top-notch products and perfect services.
