Width 1800mm Diameter 1400mm 2nd Shaftless Mill Roll Stand

Width 1800mm Diameter 1400mm 2nd Shaftless Mill Roll Stand

Width 1800mm Diameter 1400mm 2nd Shaftless Mill Roll Stand
Width 1800mm Diameter 1400mm 2nd Shaftless Mill Roll Stand
Width 1800mm Diameter 1400mm 2nd Shaftless Mill Roll Stand
Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: ZJ-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 5,000~25,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 15~30 working days
Payment Terms: T/T
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Name: Used Electrical Shaftless Mill Roll Stand Type: Electrical
Max Model: 1800mm Min Model: 1100mm
Diameter: 1400mm Wieght: 2000kg
Support: 2 Roll Use: To Support Two Paper Roll For Single Facer Corrugator Line
High Light:

Diameter 1400mm Shaftless Mill Roll Stand

,

Width 1800mm Shaftless Mill Roll Stand

,

2nd Shaftless Mill Roll Stand

Used Electrical Shaftless Mill Roll Stand, to support two paper roll, for single facer corrugator line

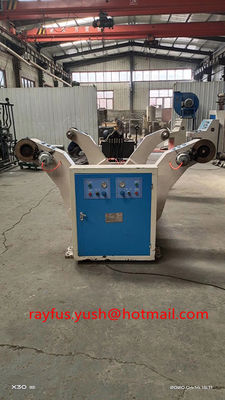

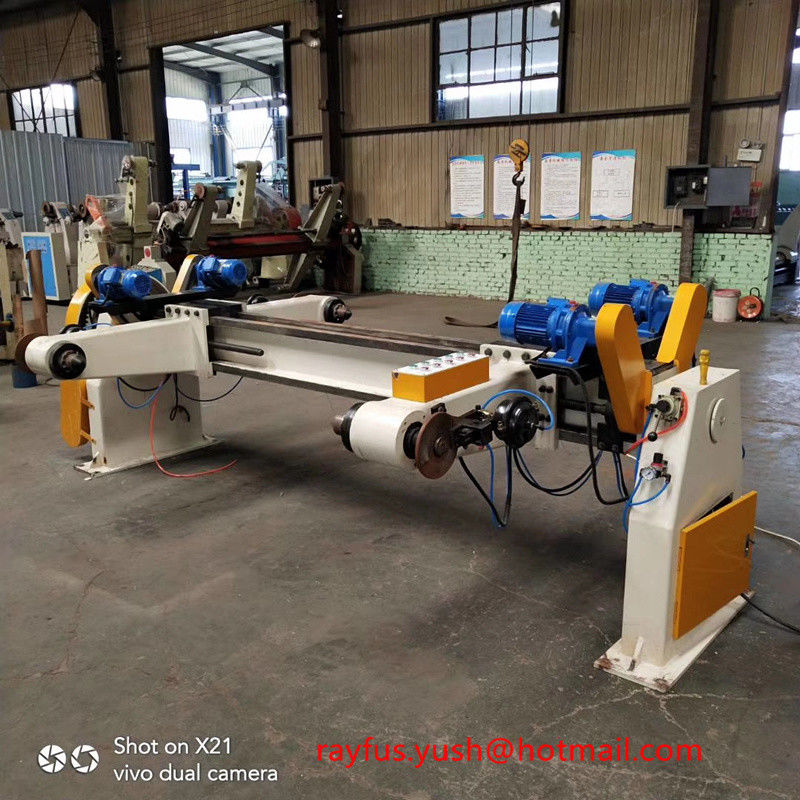

Used Electrical Shaftless Mill Roll Stand



Functional Specifications:

  1. Single Shaft with four arms, support two paper rolls on both sides at same time.
  2. Adopt expansion clamp to catch paper roll, normally for standard core 3” or 4”.
  3. Round-plate type pneumatic brake, the web tension adjustable at any time.
  4. Arm Clamp and rotary structure set fixed torque clutch, operate safety.
  5. Manual forklift to load paper roll easily. (vehicle and ground rail for optional)

Technical Parameters:



Max Effective Width 1100~1800mm
Max Paper Roll Diameter 1400mm
Max Paper Roll Weight 2000kg


used Single Facer Corrugator Line, 2-layer corrugated paperboard making, to sheet or roll

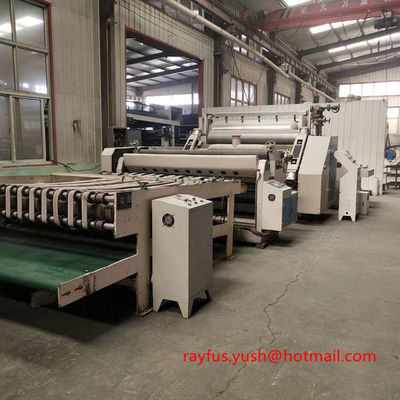

Used Single Facer Corrugator Line



Functional Specifications:

  1. This line consists of three machines, Shaftless Mill Roll Stand, SF-S Fingerless type Single Facer, NC Rotary Sheeter Stacker, Rewidner, with Glue Mixer and Pump, etc.
  2. Kraft Paper Reel to corrugate and glue by Corn Starch Gum, continuously produce and cut to Single Faced Corrugated Cardboard Sheet, and then through laminating Machine to laminate to 3/5-ply corrugated sheet, press and fix.
  3. The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.
  4. It is the ideal and perfect equipment for small or medium carton factories.

Technical Parameters:



Model DW-80S DW-100S
Max Effective Width 1100~1800mm 1100~2200mm
Max Paper Roll Diameter 1400mm 1500mm
Max Paper Roll Weight 2000kg 3000kg
Corrugating Roller Φ280mm, 48CrMo alloy steel, Chrome-plated Φ320mm, 48CrMo alloy steel, Chrome-plated
Flute Type made to customer request made to customer request
Slitting Knife 4 pairs 4pairs
Cutting Length 100~2400mm 100~2400mm
Max Stacking Length 1500mm 1500mm
Design Speed 80m/min 100m/min
Working Speed 20~40m/min (Electrical heating) 30~50m/min (Electrical heating)
40～60m/min (Steam heating) 60~80m/min (Steam heating)
