Place of Origin: | China |
Brand Name: | YUSH |
Certification: | CE |
Model Number: | YKMD-Q |
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD 10,000~100,000 per set |
Packaging Details: | well packaged to loaded in container |
Delivery Time: | 15~30 working days |
Payment Terms: | T/T |
Supply Ability: | 5 sets per month |
Name: | Used Automatic Flexo Printer Slotter Die-cutter Stacker | Type: | Automatic |
---|---|---|---|
Max Size: | 1600*3200mm | Min Size: | 300*500mm |
Color: | 1~5 Colors | Speed: | 120~150pcs/min |
Control: | Full Computer | Use: | Printing Slotting Die-cutting For Corrugated Carton Boxes |
High Light: | 150pcs/min used flexo printer slotter,CE used flexo printer slotter,automatic used flexo printer slotter |

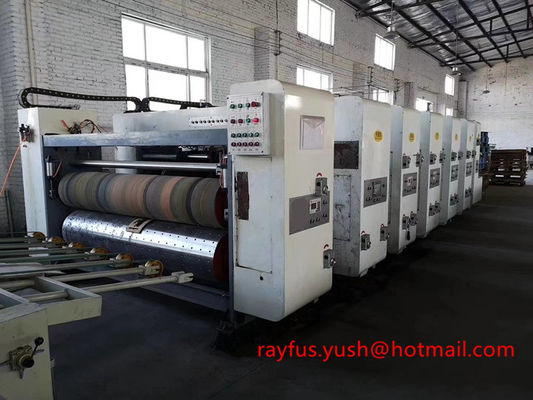

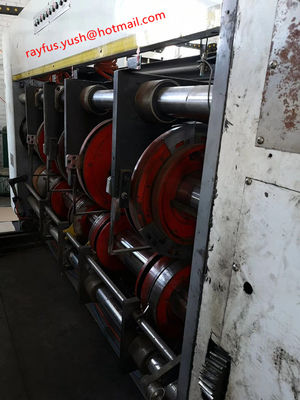

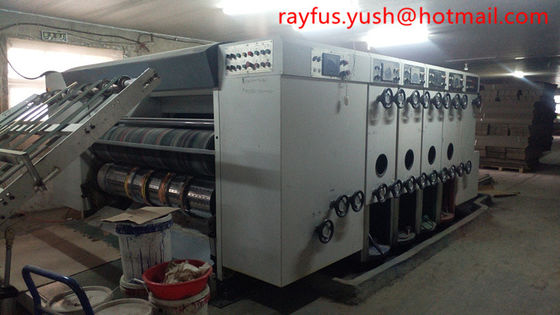

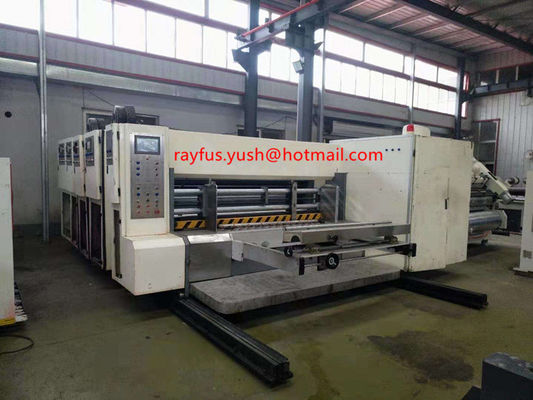

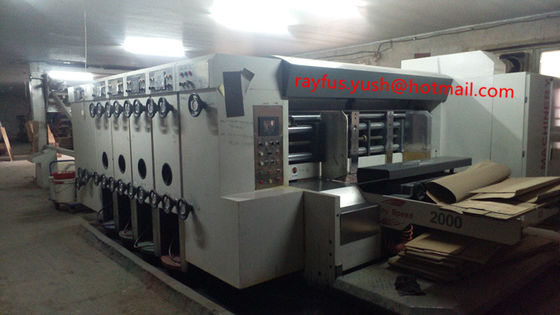

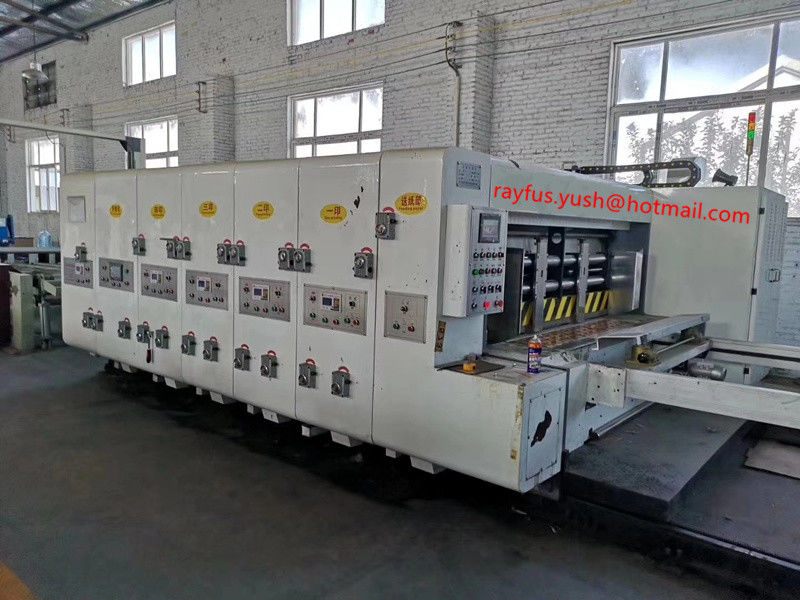

Used Automatic Flexo Printer Slotter Die-cutter Stacker
(Lead-edge Feeding, 1~5 colors printing, Computer-control)
Functional Specifications:
1) YKMD-Q Automatic Lead-edge Feeding Flexo Printing Slotting Die-cutting Stacking Machine can finish cardboard 1~5 color printing, slitting, scoring, slicing, slotting, die-cutting, creasing, stacking, etc. at one time.

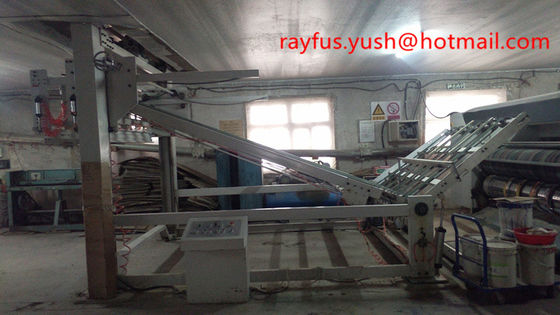

2) Adopt vacuum adsorption lead-edge feeding cardboard, accurate and reliable.
3) Main motor adopts frequency conversion control and stays stable working.
4) PLC control, includes keeping records, speed, delivering paper in interval. Rubber roller moves up and down; malfunction alarm enunciator is controlled by electric motion automatically.
5) Each part is equipped with auto rise device.

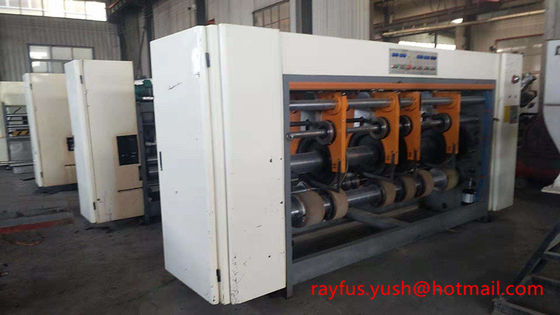

6) Notch system adopts high-precision thread pole. with precise and reliable XKNC.
7) Each machinery group is shifted by electric motion and locked pneumatically.
8) Turning gear rubs precisely, equips with spraying and lubricating device which products less noise and can be used for a longer period.
9) Die cutter rubber roller strap revolving along the axis which helps to extend the using time of the rubber roller.
10) Electric control parts and main axletrees are implored so as to ensure their quality.
Technical Parameters:
Model | 920 | 1224 | 1428 | 1632 |
Max Sheet Size | 920*2000mm | 1200*2400mm | 1450*2800mm | 1600*3200mm |
Min Sheet size | 300*600mm | 360*600mm | 450*700mm | 500*700mm |
Max Printing Area | 920*1800mm | 1200*2200mm | 1450*2600mm | 1600*3000mm |
Min Slotting Distance | 155*155*155*155mm | 165*165*165*165mm | 175*175*175*175mm | 185*185*185*185mm |
Max Slot Depth | 230mm | 300mm | 360mm | 400mm |
Max Die-cutting Size | 800*1800mm | 1100*2200mm | 1350*2600mm | 1500*3000mm |
Max Stacking Height | 1500mm | 1500mm | 1500mm | 1500mm |
Design Speed | 180pcs/min | 180pcs/min | 150pcs/min | 150pcs/min |
YUSH CARTON MACHINE, your best supplier for Corrugated Cardboard & Carton Box Making Machines
Sincerely, welcome you to join our cooperator team, we shall repay you with top-notch products and perfect services.
