YUSH CARTON MACHINE COMPANY
To supply customers, most suitable machine & best quality service, at most reasonable cost

|
| Place of Origin: | China |
| Brand Name: | YUSH |
| Certification: | CE |
| Model Number: | NC |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 100,000~500,000 per set |
| Packaging Details: | well packaged to loaded in container |
| Delivery Time: | 30~60 working days |
| Payment Terms: | T/T |
| Supply Ability: | 5 sets per month |

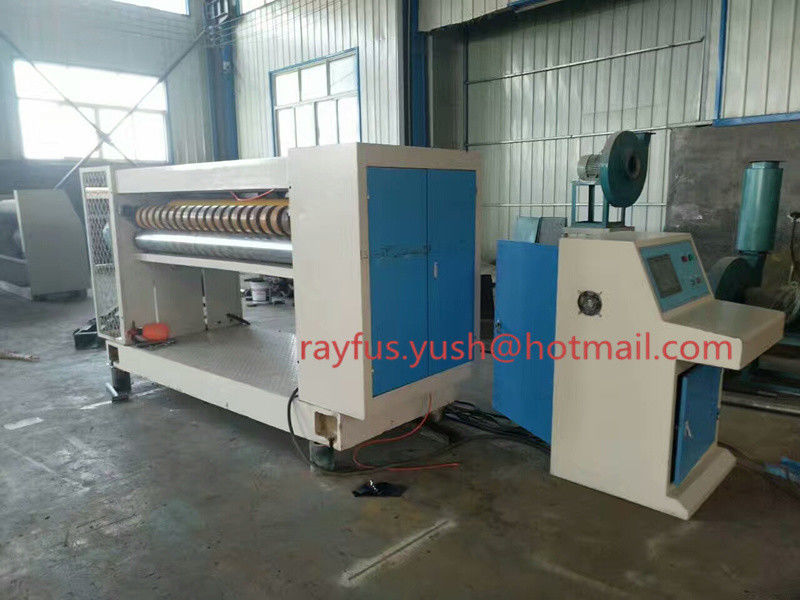

| Name: | Used NC Rotary Cut-off Machine | Type: | Automatic |
|---|---|---|---|
| Max Width: | 2200mm | Min Width: | 1100mm |
| Cut Length: | 500~9999mm | Speed: | 100~200m/min |
| Control: | Computer | Use: | Computer-control Cross-cutting Corrugated Cardboard To Sheet |
| High Light: | 1100mm Rotary Cut Off Machine,NC Rotary Cut Off Machine,Helical Knife Cut Off Machine |
||
Technical Parameters:
1) Uses the independent oil pump and the filter coordinates two groups of copper tubes to distribute in various gears position for the oil, the lubrication and cooling.
2) Helical knife structure, type saw tooth knife, decrease cutting obstruction, low noise.
3) Balance treatment: high quality alloy steel, for blade shaft, which helps to keep it good stability.
4) Sun-shape wheels press cardboard in the front and the rear conveyer. The transporting is stable and with even pressure, which avoid jam caused or broken cardboard.
5) This type of Cut-off just consume the one of third energy compare with the common cutter with its especial structure, economize above 70% energy to get more money.
6) Exact and adjustable on gap gear assure knife-edge joggle exactly. Running balanceable.
7) Computer system to keep order. Man-machine conversation system NC. Automatic adjust cutting speed by cardboard specification and matching.
8) The screen displays various production messages. Can consult, modification, super addition and cancel order during running machine.
Technical Parameters:
| Max Effective Width | 1100~2500mm |
| Cutting Length | 500~9999mm |
| Cutting Precision | ±1.0mm |
| Design Speed | 100~250m/min |
| Working Speed | 80~220m/min |
used Corrugator Line, 3/5/7-layer, various flute type, low-medium-high speed
1) 2/3/5/7-layer Corrugated Cardboard Production Line consists of the following machines, Electrical or Hydrualic Shaftless Mill Roll Stand, Automatic Splicer, Single Preheater, Fingerless type Single Facer Corrugator, Overhead Conveyor Bridge, Duplex or Triplex Preheater, Single or Duplex Gluer, Double Facer, NC Thin Blade Slitter Scorer, NC Rotary Cut-off, Up or Down Conveyor & Stacker, etc.
2) Kraft Paper Reel to be corrugated and glue by Corn Starch Gum, continuously produce, slit, crease & cut to 2/3/5/7-layer Corrugated Cardboard Sheet, and then conveyor, stack and output.
3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.
4) It is the ideal and perfect equipment for corrugated cardboard and carton box factories.
Technical Parameters:
| Model | 3/5/7-layer |
| Max Effective Width | 1100~2500mm |
| Design Speed | 100~250m/min |
| Heating Method | Steam Heating |
| Working Speed | 80~220m/min |
| Workshop Suggested | 3000~5000sqm |
| Customer-owned Parts | Steam Boiler, Pipeline, Wireline, Air Compressor, etc. |
Machine List:
| Item | Model | WJ-I | WJ-II | WJ-III |
| Description | 3-layer | 5-layer | 7-layer | |
| 1 | Shaftless Paper Roll Stand | 3 | 5 | 7 |
| 2 | Track Rail & Paper Roll Trolley | 6 | 10 | 14 |
| 3 | Auto Splicer | 3 | 5 | 7 |
| 4 | Single Preheater | 2 | 4 | 6 |
| 5 | Single Facer Corrugator | 1 | 2 | 3 |
| 6 | Overhead Conveyor Bridge | 1 | 1 | 1 |
| 7 | Multiple Preheater | 1 | 1 | 1 |
| 8 | Gluer | 1 | 1 | 1 |
| 9 | Double Facer | 1 | 1 | 1 |
| 10 | Thin Blade Slitter Scorer | 1 | 1 | 1 |
| 11 | NC Helical-knife Cut-off | 1 | 1 | 1 |
| 12 | Conveyor Stacker | 1 | 1 | 1 |
| 13 | Glue Kitchen System | 1 | 1 | 1 |
| 14 | Internal Steam Heating System | 1 | 1 | 1 |
| 15 | Electricla Control System | 1 | 1 | 1 |
YUSH CARTON MACHINE, your best supplier for Corrugated Cardboard & Carton Box Making Machines
Sincerely, welcome you to join our cooperator team, we shall repay you with top-notch products and perfect services.
