YUSH CARTON MACHINE COMPANY
To supply customers, most suitable machine & best quality service, at most reasonable cost

|
| Place of Origin: | China |
| Brand Name: | YUSH |
| Certification: | CE |
| Model Number: | DWD-NC |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 50,000~80,000 per set |
| Packaging Details: | well packaged to loaded in container |
| Delivery Time: | 30~60 working days |
| Payment Terms: | T/T |
| Supply Ability: | 15 sets per month |
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Function: | Slitting, Cutting, Counting, Stacking For 2-layer Single Facer Corrugated Cardboard Production Line | Warranty: | One Year |
| Size: | Customized | Speed: | Customized |
| Color: | Customized | Voltage: | Made To Customer Request |
| High Light: | Single Faced Slitter Cutter Stacker,Corrugator Line Slitter Cutter Stacker,2 Layer Slitter Cutter Stacker |
||

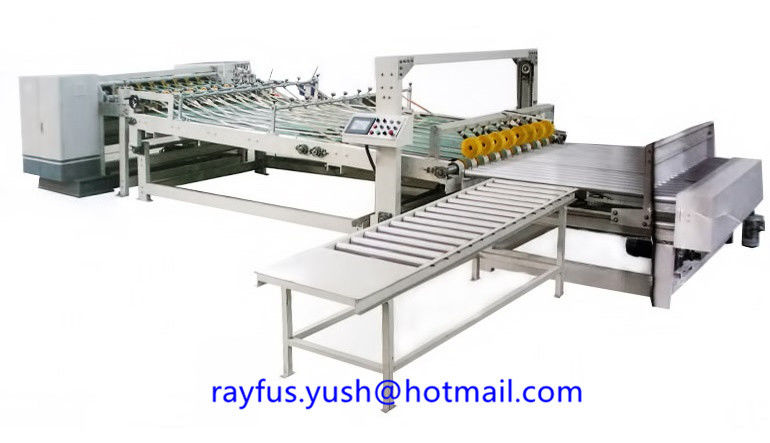

NC Single Faced Slitter Cutter Stacker, high-speed, high precision, for 2-layer corrugator line
NC Single Faced Slitter Cutter Stacker
Functional Specifications:
1) Computer system to keep order. Man-machine conversation system NC. Automatic adjust cutting speed by cardboard specification and maching.
2) The screen display various production message, we could consult, modification, superaddition and cancel order during running.
3) High quality servo motor, the servo drive system import from Germany.
4) Transmission system adopts oil pump auto-Cye lubricate.
5) Round knife slitting, Helical knife cutting with HSS edge, nice grinded gear transmission, high precision and long use life.
6) Exact and adjustable no gap gear assure knife-edge joggle exactly, good incision quality, high beeline degree, protect knives.
7) Conveyor system after the slitter and cutter is applied to delivery the board on two direction, for rise efficiency and easy stacking.
8) It will be more suitable for large or moderate manufactories of offset printing box.
Technical Parameters:
| Model | DWD-120NC | DWD-150NC |
| Max Effective Width | 1100~2200mm | |
| Slitting Knife | 4 pairs | |
| Cutting Length | 300~9999mm | |
| Cutting Precision | ±1mm | |
| Max Stacking Length | 1300mm | |
| Max Stacking Height | 300mm | |
| Design Speed | 120m/min | 150m/min |
| Working Speed | 80～100m/min | 100~130m/min |

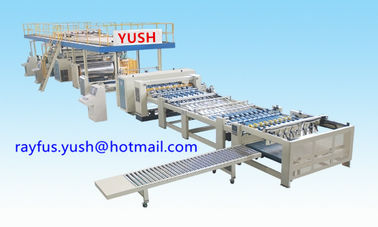

DW-C Single Facer Corrugator Line
