YUSH CARTON MACHINE COMPANY
To supply customers, most suitable machine & best quality service, at most reasonable cost

|
| Place of Origin: | China |
| Brand Name: | YUSH |
| Certification: | CE |
| Model Number: | DW-S |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 30,000~50,000 per set |
| Packaging Details: | well packaged to loaded in container |
| Delivery Time: | 30~60 working days |
| Payment Terms: | T/T |
| Supply Ability: | 15 sets per month |
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Function: | Single Facer 2-layer Corrugated Paperboard Production Line | Warranty: | One Year |
| Size: | Customized | Speed: | Customized |
| Color: | Customized | Voltage: | Made To Customer Request |
| High Light: | hydraulic mill roll stand,single facer corrugated machine,single facer 2 layer corrugated machine |
||

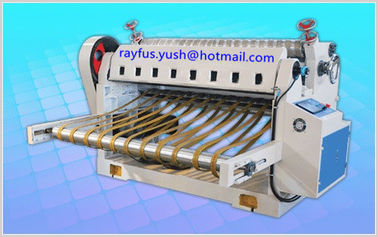

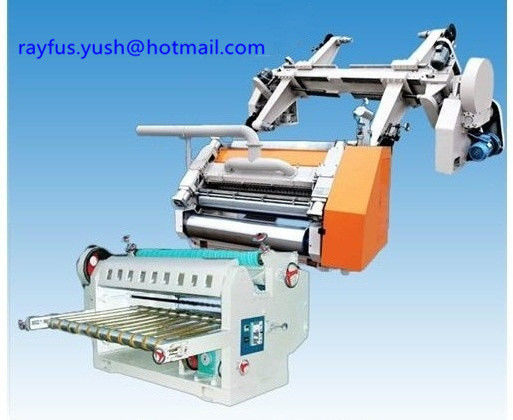

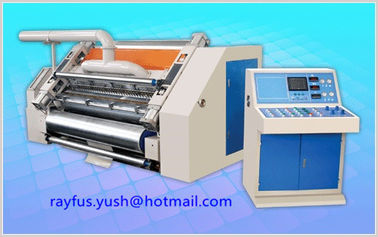

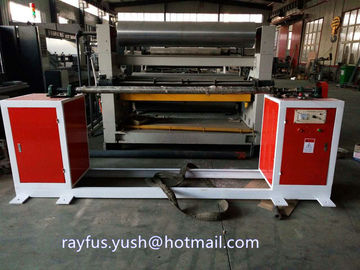

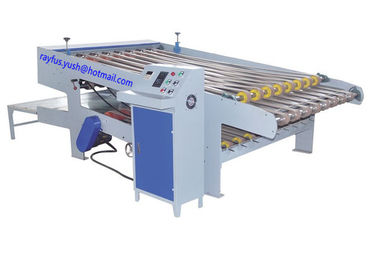

Single Facer Corrugator Line, 2-layer corrugated paperboard making, to sheet or roll
DW-S Single Facer Corrugator Line
Functional Specifications:
Technical Parameters:
| Model | DW-80S | DW-100S |
| Max Effective Width | 1100~1800mm | 1100~2200mm |
|
Max Paper Roll Diameter |
1400mm | 1500mm |
| Max Paper Roll Weight | 2000kg | 3000kg |
| Corrugating Roller | Φ280mm, 48CrMo alloy steel, Chrome-plated | Φ320mm, 48CrMo alloy steel, Chrome-plated |
| Flute Type |
made to customer request |
made to customer request |
| Slitting Knife | 4 pairs | 4pairs |
| Cutting Length | 100~2400mm | 100~2400mm |
| Max Stacking Length | 1500mm | 1500mm |
| Design Speed | 80m/min | 100m/min |
| Working Speed | 20~40m/min (Electrical heating) | 30~50m/min (Electrical heating) |
| 40～60m/min (Steam heating) | 60~80m/min (Steam heating) |
YUSH CARTON MACHINE, your best supplier for Corrugated Cardboard & Carton Box Making Machines
Sincerely, welcome you to join our cooperator team, we shall repay you with top-notch products and perfect services.
Contact Person: admin
Tel: +8615690196799

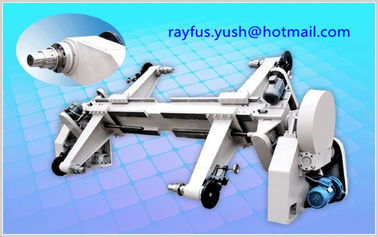

Custom Corrugated Cardboard Production Line / Shaftless Hydraulic Mill Roll Stand
