Flute Type 1100mm Single Facer Corrugated Machine

Flute Type 1100mm Single Facer Corrugated Machine

Flute Type 1100mm Single Facer Corrugated Machine
Flute Type 1100mm Single Facer Corrugated Machine
Flute Type 1100mm Single Facer Corrugated Machine
Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: DW-C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 150,000~300,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 30~60 working days
Payment Terms: T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Function: Single Facer 2-ply Corrugated Cardboard Production Line Warranty: One Year
Size: Customized Speed: Customized
Color: Customized Voltage: Made To Customer Request
High Light:

Flute Type Single Facer

,

Flute Single Facer Corrugated Machine

,

1100mm single facer corrugated machine

Single Facer Corrugator Line, high-speed, various flute type, 2-layer corrugated cardboard making

DW-C Single Facer Corrugator Line



Functional Specifications:

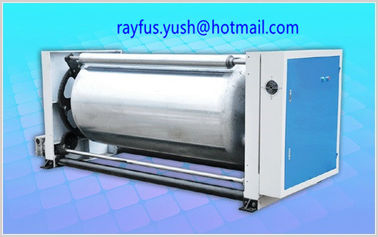

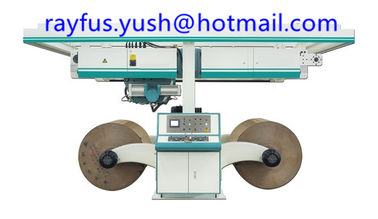

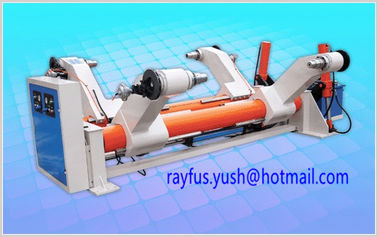

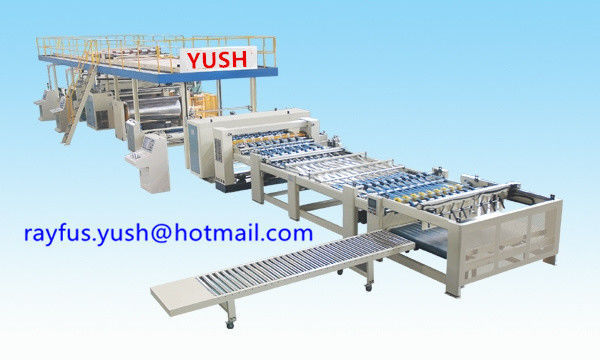

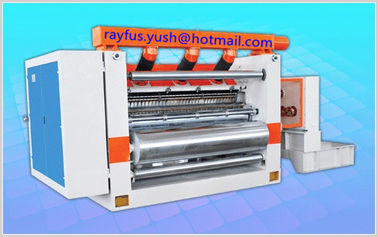

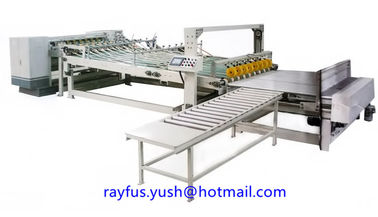

  1. This line consists of three machines, Hydraulic Shaftless Mill Roll Stand, Auto Splicer, Preheater, SF-C Fingerless type Single Facer, Overhead Conveyor Bridge, NC Single-faced Slitter Cutter Stacker, with Glue Mixer and Pump, etc.
  2. Kraft Paper Reel to corrugate and glue by Corn Starch Gum, continuously produce and cut to Single Faced Corrugated Cardboard Sheet, and then through laminating Machine to laminate to 3/5-ply corrugated sheet, press and fix.
  3. The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.
  4. It is the ideal and perfect equipment for high efficiency color pritning and packaging industry.

Technical Parameters:



Model DW-120S DW-150C
Max Effective Width 1100~2200mm 1100~2200mm

Max Paper Roll Diameter

1500mm 1500mm
Max Paper Roll Weight 3000kg 3000kg
Corrugating Roller Φ320mm, 48CrMo alloy steel, Chrome-plated Φ320mm, 48CrMo alloy steel, Tungsten-carbide
Flute Type

made to customer request

made to customer request
Slitting Knife 4 pairs 4pairs
Cutting Length 300~9999mm 300~9999mm
Max Stacking Length 1300mm 1300mm
Design Speed 120m/min 150m/min
Working Speed 80~100m/min (Steam heating) 100~130m/min (Steam heating)



Flute Type 1100mm Single Facer Corrugated Machine 0
