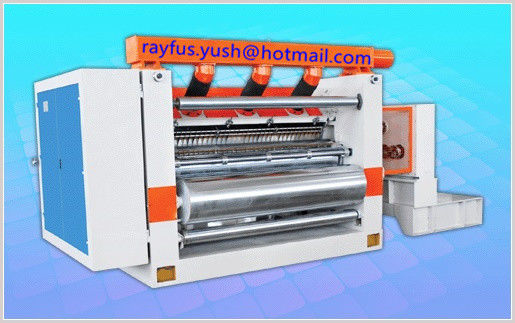

Vacuum Suction Universal Joint Drive Single Facer Corrugated Machine

Vacuum Suction Universal Joint Drive Single Facer Corrugated Machine

Vacuum Suction Universal Joint Drive Single Facer Corrugated Machine
Vacuum Suction Universal Joint Drive Single Facer Corrugated Machine
Vacuum Suction Universal Joint Drive Single Facer Corrugated Machine
Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: SF-C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 40,000~80,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 30~60 working days
Payment Terms: T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Function: Single Facer For 2-layer Corrugated Cardboard Production Line Warranty: One Year
Size: Customized Speed: Customized
Color: Customized Voltage: Made To Customer Request
High Light:

Universal Joint Drive Single Facer

,

Vacuum Suction Single Facer

,

2 layer corrugator line single facer

Vacuum Suction Single Facer, universal joint drive, various flute type, for 2-layer corrugator line

Vacuum Suction Single Facer



Functional Specifications:



1) Fingerless vacuum suction type single facer, the upper and lower corrugated roller made of 48CrMo alloy steel, with hearted treatment, the hardness is above HRC58o-60°The surface is well treated by grind and Chrome-plated or Tungsten-carbide-coated.

2) Upper and lower corrugated roller are unit assemblage, the whole corrugated rollers group can be move and quick replacement, to change flute type quickly.

3) Glue section are unit assemblage, whole section can be moved by track,save maintenance time.

4) Frequency conversion motor as main drive, independent gear box connect with three gimbals axis, Inverter to make step less speed regulation for save power, and to keep one communication connector for production management.

5) Oil immersed type lubricating to reduce noise keep running stable, prolong the use life of gear.

6) Adopt Glue width motorized dividing to match the paper width. Idle running motor for glue applicator roll to avoid glue dry. Adjustment for gap between glue roller and doctor roller by electric or manual are optional, Digital read out for the gap between glue roll and doctor roll is optional.

7) Adjustment for corrugated roller, pressure roller, and glue roller by pneumatic system.

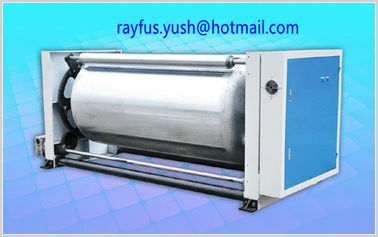

8) With preheater for liner paper and steam spray device for medium paper.

9) Bearing for corrugated rollers, and pressure roller adopt high-temperature lubricate grease to keep running smoothly and durably.



Technical Parameters:



Model SF-320S SF-320C
Max Effective Width 1100~2200mm 1100~2200mm
Corrugating Roller Φ320mm, 48CrMo alloy steel, Chrome-plated Φ320mm, 48CrMo alloy steel, Tungsten-carbide
Flute Type

made to customer request

made to customer request
Design Speed 120m/min 150m/min
Working Speed 80~100m/min (Steam heating) 100~130m/min (Steam heating)

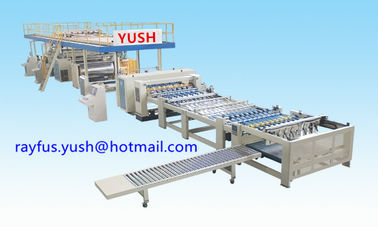

DW-C Single Facer Corrugator Line



Vacuum Suction Universal Joint Drive Single Facer Corrugated Machine 0
