Chain Type Rotary Die Cutter / Auto Feeder Machine Save Labor Improve Efficiency

Chain Type Rotary Die Cutter / Auto Feeder Machine Save Labor Improve Efficiency

Chain Type Rotary Die Cutter / Auto Feeder Machine Save Labor Improve Efficiency
Chain Type Rotary Die Cutter / Auto Feeder Machine Save Labor Improve Efficiency
Chain Type Rotary Die Cutter / Auto Feeder Machine Save Labor Improve Efficiency
Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: SZJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 6,000~10,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 15~30 working days
Payment Terms: T/T
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Function: Auto Feeder For C Hain Tyoe Machine For Carton Box Making Warranty: One Year
Size: Customized Speed: Customized
Color: Customized Voltage: Made To Customer Request
High Light:

rotary die cutting machine

,

vibrator stripping machine

Auto Feeder, for Chain type Rotary Die-cutter, save labor, improve efficiency

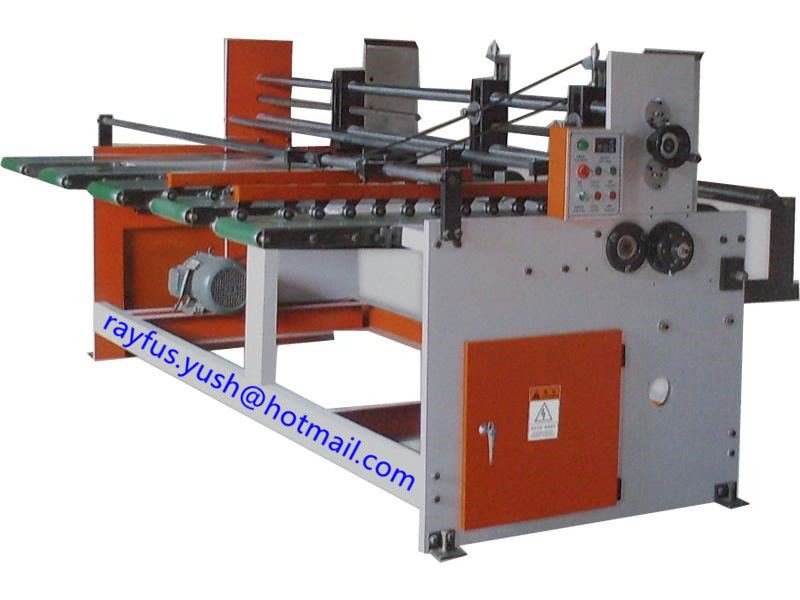

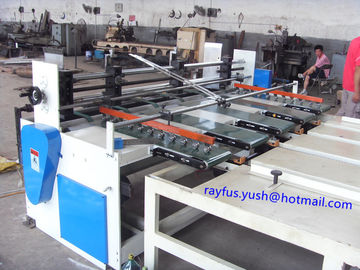

Auto Feeder for Chain type Machine

Functional Specifications:

1) Auto feeding machine is continuous board carrying equipment.

2) It replaces the original single carrying form with the continuous form.

3) It guarantees the board going straightly, it not only improves the working efficiency, but reduces the workers' labor degree greatly, and it also reduces the quantity of staff.

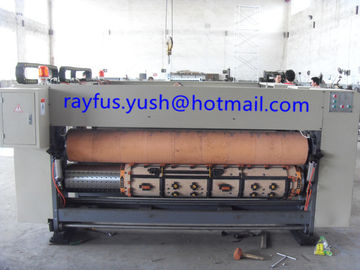

Chain type Roatry Die-cutter with Removable Slotting



Functional Specifications:

  1. This machine could do corrugated cardboard die-cutting, creasing, punching, slotting, corner-cutting, edge-cutting, creasing, etc.
  2. Adopt chain feeding unit, die-cutting roller equipped with removable slotting knives to make normal slotted carton boxes.
  3. Die-cutting roller adopts automatic equipment transverse moving 40mm.
  4. Adopt different speed equipment; automatically adjust upper roller line speed.
  5. Die-cutting adopt Taiwan splendid rubber mat.
  6. Install upper roller automatic repairing function.
  7. Easy operation, low noisy, long use-life.

Technical Parameters:



Model 920 1224 1428 1632
Max Sheet Size 920*2000mm 1200*2400mm 1450*2800mm 1600*3200mm
Min Sheet size 300*500mm 360*500mm 450*600mm 500*600mm
Max Die-cutting Size 800*1800mm 1100*2200mm 1350*2600mm 1500*3000mm
Max Slot Depth 230mm 300mm 360mm 400mm
Min Slotting Distance 120*120*120*120mm 120*120*120*120mm 140*140*140*140mm 140*140*140*140mm
Design Speed 60pcs/min 60pcs/min 60pcs/min 60pcs/min



Chain Type Rotary Die Cutter / Auto Feeder Machine Save Labor Improve Efficiency 0
