Stacking Machine For Rotary Die Cutter Auto Lifting Hold Sheets While Changing Pallet

Stacking Machine For Rotary Die Cutter Auto Lifting Hold Sheets While Changing Pallet

Stacking Machine For Rotary Die Cutter Auto Lifting Hold Sheets While Changing Pallet
Stacking Machine For Rotary Die Cutter Auto Lifting Hold Sheets While Changing Pallet
Stacking Machine For Rotary Die Cutter Auto Lifting Hold Sheets While Changing Pallet
Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: DM
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 6,000~10,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 15~30 working days
Payment Terms: T/T
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Function: Auto Stacking Unit For Rotary Die-cutting Machine Warranty: One Year
Size: Customized Speed: Customized
Color: Customized Voltage: Made To Customer Request
High Light:

rotary die cutting equipment

,

rotary die cutting machine

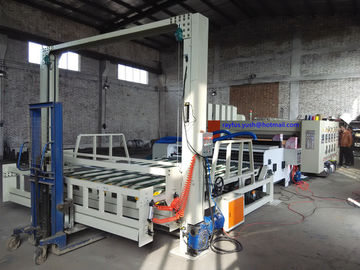

Stacking Machine, for Rotary Die-cutter, Auto lifting, auto hold sheets while changing pallet

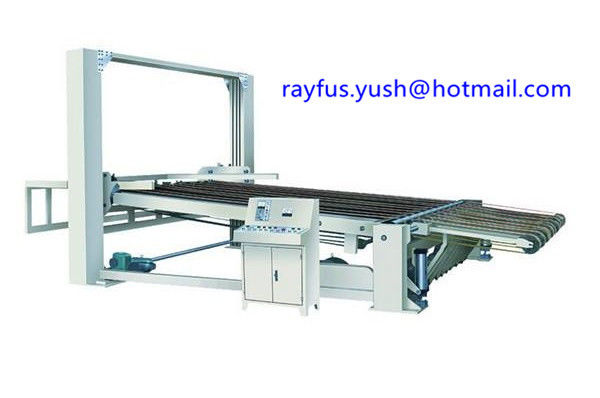

Stacking Machine

Functional Specifications:



1) Photo-electric control table lifting, adopt powerful chain equipped with balance safety device.

2) Adopt teeth-type powerful transmitting belts, for better friction and use life.

3) Equipped with auto holder, to lift while achieve stacking height, and open after pallet changed, no need to stop machine.

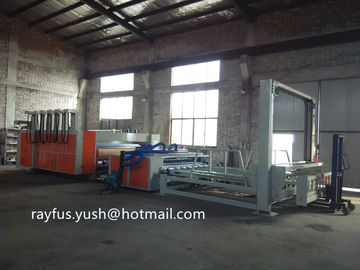

Automatic Lead-edge Roatry Die-cutter



Functional Specifications:

  1. This machine could do die-cutting, creasing etc. on corrugated cardboard.
  2. Adopt vacuum adsorption feeding paper, with lead-edge feeding system, and frequency conversion motor.
  3. Gear high frequency heating treatment and surface precision grinding.
  4. Die-cutting roller adopts electrical 360 degree phase adjustment.
  5. Die-cutting roller adopts automatic equipment transverse moving 40mm.
  6. Adopt different speed equipment; automatically adjust top roller's speed.
  7. Installed with top rubber roller automatic repairing function for longer use life.
  8. Vibrating Stripping unit and Stacking unit as optional.



Model 920 1224 1428 1632
Max Sheet Size 920*2000mm 1200*2400mm 1450*2800mm 1600*3200mm
Min Sheet size 300*500mm 360*500mm 450*600mm 500*600mm
Max Die-cutting Size 800*1800mm 1100*2200mm 1350*2600mm 1500*3000mm
Design Speed 120pcs/min 120pcs/min 120pcs/min 120pcs/min



Stacking Machine For Rotary Die Cutter Auto Lifting Hold Sheets While Changing Pallet 0
