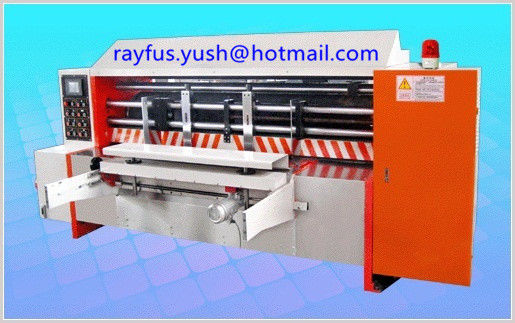

Auto Lead Edge Rotary Die Cutter / Rotary Die Cutting Machine For Corrugated

Auto Lead Edge Rotary Die Cutter / Rotary Die Cutting Machine For Corrugated

Auto Lead Edge Rotary Die Cutter / Rotary Die Cutting Machine For Corrugated
Auto Lead Edge Rotary Die Cutter / Rotary Die Cutting Machine For Corrugated
Auto Lead Edge Rotary Die Cutter / Rotary Die Cutting Machine For Corrugated
Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: MR
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 30,000~50,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 30~60 working days
Payment Terms: T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Function: Automatic Rotary Die-cutting Machine For Carton Box Warranty: One Year
Size: Customized Speed: Customized
Color: Customized Voltage: Made To Customer Request
High Light:

rotary die cutting equipment

,

rotary die cutting machine

Automatic Lead-edge Rotary Die-cutter, vacuum suction feeding, die-cutting, creasing, punching

Automatic Lead-edge Roatry Die-cutter



Functional Specifications:

  1. This machine could do die-cutting, creasing etc. on corrugated cardboard.
  2. Adopt vacuum adsorption feeding paper, with lead-edge feeding system, and frequency conversion motor.
  3. Gear high frequency heating treatment and surface precision grinding.

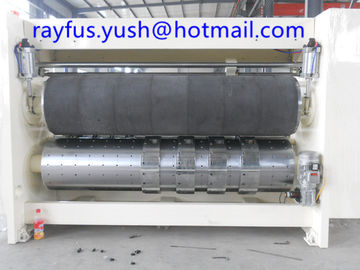

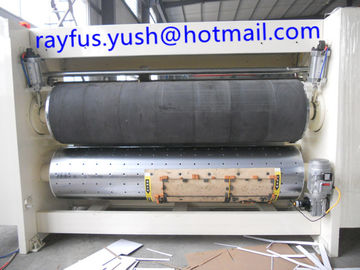

  4. Die-cutting roller adopts electrical 360 degree phase adjustment.
  5. Die-cutting roller adopts automatic equipment transverse moving 40mm.
  6. Adopt different speed equipment; automatically adjust top roller's speed.
  7. Installed with top rubber roller automatic repairing function for longer use life.

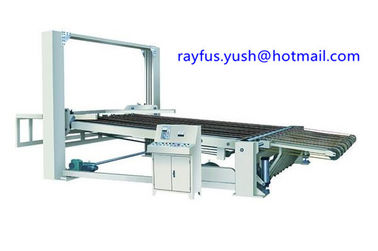

  8. Vibrating Stripping unit and Stacking unit as optional.

Technical Parameters:



Model 920 1224 1428 1632
Max Sheet Size 920*2000mm 1200*2400mm 1450*2800mm 1600*3200mm
Min Sheet size 300*500mm 360*500mm 450*600mm 500*600mm
Max Die-cutting Size 800*1800mm 1100*2200mm 1350*2600mm 1500*3000mm
Design Speed 120pcs/min 120pcs/min 120pcs/min 120pcs/min



Auto Lead Edge Rotary Die Cutter / Rotary Die Cutting Machine For Corrugated 0
