Hot Stamping Corrugated Box Die Cutting Machine 2 ~ 3 Groups Foil Stamping

Hot Stamping Corrugated Box Die Cutting Machine 2 ~ 3 Groups Foil Stamping

Hot Stamping Corrugated Box Die Cutting Machine 2 ~ 3 Groups Foil Stamping
Hot Stamping Corrugated Box Die Cutting Machine 2 ~ 3 Groups Foil Stamping
Hot Stamping Corrugated Box Die Cutting Machine 2 ~ 3 Groups Foil Stamping
Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: HSML-750/930/1100
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 10,000~15,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 15~30 working days
Payment Terms: T/T
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Function: Various Materials Foil-hot-stamping And Die Cutting Warranty: One Year
Size: Customized Speed: Customized
Color: Customized Voltage: Made To Customer Request
High Light:

flat bed die cutting machine

,

cardboard creasing machine

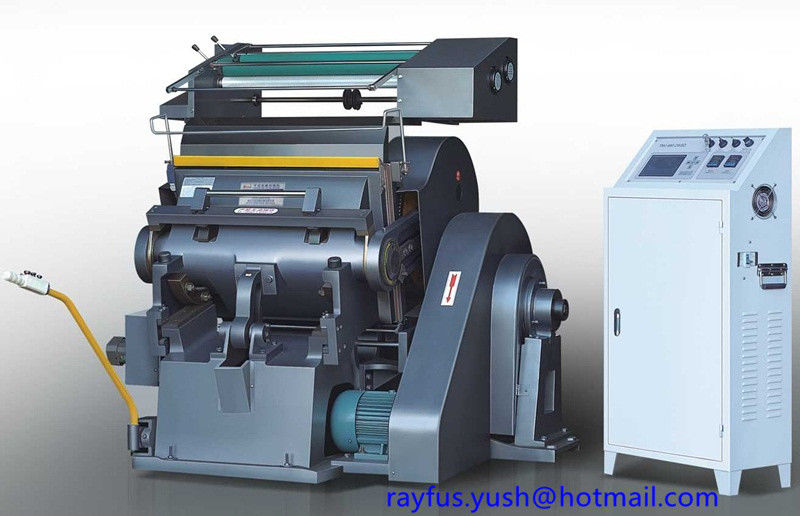

HSML Hot-stamping Die-cutting Machine, 2~3 groups foil-stamping, separate temperature control

HSML-750/930/1100 Foil-hot-stamping Die-cutting Machine



Functional Specifications:

  1. One machine double use exchangable, foil-stamping or die-cutting.
    1. when foil-stamping work, 2-3 groups separate control the temperature
    2. if Die-cutting work needed, only to the stamping foil, and change to the die plate frame
  2. This machine is hand-feeding-style semi-automatic creasing and cutting machine, for which the engineers absorbed advanced structures to improve the design. Major parts: stand, pressure frame, electro-magnetic clutch transmission, electrical controller, automatic reset device, automatic counting parts, and according to different application requirements, designed to derive a series of products with different functions.
  3. This series product is multi-functional, large pressure cutting edge, easy operation, safety features. It applies pressure cutting a variety of forming cardboard, plastic and leather, etc. products. Various high-level fine print can be found in the machine on the convex-concave indentation, and thus the print even more exquisite, beautiful, richer three-dimensional sense.

Technical Parameters:



Model ML-750 ML-930 ML-1100
Max Sheet Size 750*520mm 930*670mm 1100*800mm
Working Speed 28±2pcs/min 23±2pcs/min 20±2pcs/min
Max Rule Length 15m 25m 32m
Motor Power 2.2kw 4.0kw 5.5kw
Stamping Foil 2-group 3-group 3-group
Heating Power 5kw 10kw 15kw
Weight 2200kg 3300kg 5000kg
Dimension 1400*1500*2000mm 2000*1800*2200mm 2000*2000*2300mm
