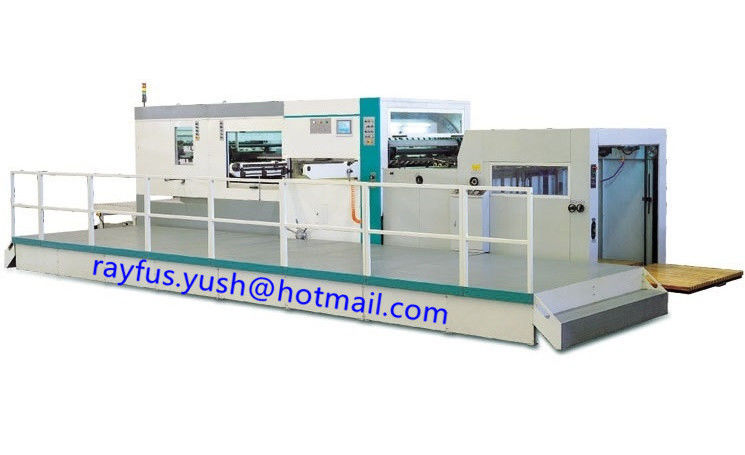

High Efficiency Precision Flatbed Die Cutter Paperboard Or Corrugated Support

High Efficiency Precision Flatbed Die Cutter Paperboard Or Corrugated Support

High Efficiency Precision Flatbed Die Cutter Paperboard Or Corrugated Support
High Efficiency Precision Flatbed Die Cutter Paperboard Or Corrugated Support
High Efficiency Precision Flatbed Die Cutter Paperboard Or Corrugated Support
Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: MY-AF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 120,000~200,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 30~60 working days
Payment Terms: T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Function: Paperboard Or Corrugated Cardboard Die-cutting, Creasing And Stripping Warranty: One Year
Size: Customized Speed: Customized
Color: Customized Voltage: Made To Customer Request
High Light:

flat bed die cutting machine

,

cardboard creasing machine

Automatic Flatbed Die-cutter with Stripping, high efficiency and precision, paperboard or corrugated

Automatic Flatbed Die-cutter with Stripping



Functional Specifications:

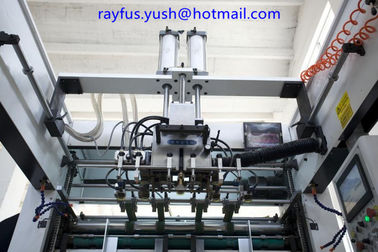

  1. Feeding Unit: automatic feeder, entire main feeder, four suction five transmission, paperboard and corrugated dual-purpose feeder head, non-stop adjust various suction angle, to endure suction more stable.
  2. Bridge Unit: imported transmitting belt with high wear-resistant pressing wheel, hand wheel to ensure smooth transmission, intelligent photoelectric detection, to guarantee positioning accuracy.

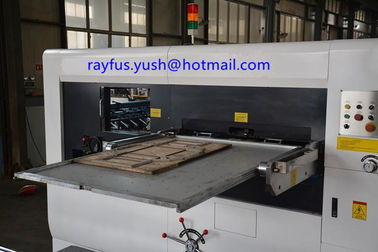

  3. Die-cutting Unit: bearing and electrical parts adopt famous brands domestic and international, precise control, safety design of plate and die template, easy to move, rotary device design to enable install and adjust template more convenient.
  4. Stripping Unit: stripping template adopt central positioning system, automatic clamping, aligning fast and convenient. Stripping frame adopt motor-controlled by lifting device, automatically remove four sides and intermediate waste, to ensure clear waste clean and neat, high production efficiency.

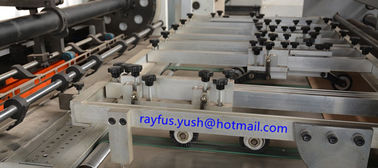

  5. Stacking Unit: automatic collect and stack greatly improve work efficiency, photoelectric device to ensure delivery fast and smooth, safe and reliable.

Technical Parameters:



Model MY-1060AF MY-1100AF MY-1200AF MY-1300AF MY-1500AF
Max Sheet Size 1060*750mm 1100*780mm 1200*830mm 1300*920mm 1500*1100mm
Min Sheet Size 400*350mm 400*370mm 400*380mm 450*400mm 400*450mm
Max Die-cutting Size 1040*730mm 1080*760mm 1180*810mm 1280*900m 1480*1080mm
Max Cutting Pressure 350N/cm2 350N/cm2 350N/cm2 350N/cm2 380N/cm2
Cutting Material Paperboard 200~2000gsm, or corrugated cardboard 1~6mm
Max Feeding Height 1100mm
Max Stacking Height 1100mm
Design Speed 7000pcs/hour 7000pcs/hour 6500pcs/hour 6000pcs/hour 5500pcs/min
Motor Power 15kw 16kw 18kw 20kw 22kw
Weight 15ton 16ton 18ton 20ton 22ton
Dimension 10*4*2.5m 10*4*2.5m 10*4*2.5m 10*4*2.5m 10*4.5*2.5m



High Efficiency Precision Flatbed Die Cutter Paperboard Or Corrugated Support 0



YUSH CARTON MACHINE, your best supplier for Corrugated Cardboard & Carton Box Making Machines

Sincerely, welcome you to join our cooperator team, we shall repay you with top-notch products and perfect services.
