High Speed Die Cutting And Creasing Machine / Flat Bed Die Cutting Machine

High Speed Die Cutting And Creasing Machine / Flat Bed Die Cutting Machine

High Speed Die Cutting And Creasing Machine / Flat Bed Die Cutting Machine
High Speed Die Cutting And Creasing Machine / Flat Bed Die Cutting Machine
High Speed Die Cutting And Creasing Machine / Flat Bed Die Cutting Machine
Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: ML-1600/1800/2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 22,000~35,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 15~30 working days
Payment Terms: T/T
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Function: Various Materials Die Cutting Warranty: One Year
Size: Customized Speed: Customized
Color: Customized Voltage: Made To Customer Request
High Light:

corrugated die cutting machine

,

flat bed die cutting machine

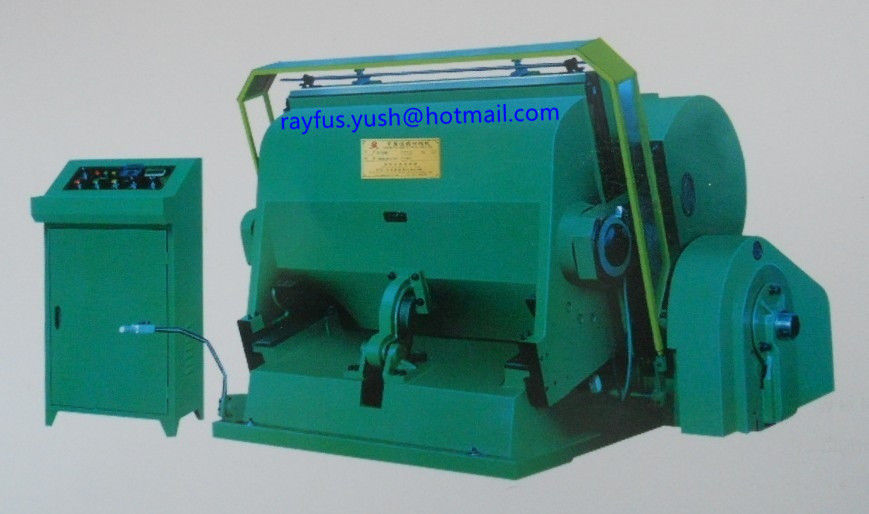

ML-1600/1800/2000 Platen Die-cutting & Creasing Machine, large pressure, four safety, multi-usage

ML-1600/1800/2000 Platen Creasing and Die Cutting Machine



Functional Specifications:

  1. This machine is hand-feeding-style semi-automatic creasing and cutting machine, for which the engineers absorbed advanced structures to improve the design. Major parts: stand, pressure frame, electro-magnetic clutch transmission, electrical controller, automatic reset device, automatic counting parts, and according to different application requirements, designed to derive a series of products with different functions.
  2. This series product is multi-functional, large pressure cutting edge, easy operation, safety features. It applies pressure cutting a variety of forming cardboard, plastic and leather, etc. products. Various high-level fine print can be found in the machine on the convex-concave indentation, and thus the print even more exquisite, beautiful, richer three-dimensional sense.

Structural features:

  1. Sliding bearing copper alloy casting with high-quality, wear-resisting vibration.
  2. Flywheel torque and shear force pressure.
  3. Airframe overall high quality casting materials, high strength, good rigidity.
  4. Monolithic electromagnetic clutch reliable sensitive action.
  5. Pressure with a single cut, straight cut and the pressure to open three functional delays, delay can easily adjust the scope.
  6. Designed to operate high pressure to open the perspective of large aircraft.
  7. Centralized lubrication system to ensure good lubrication, reducing wear and tear.
  8. Reliable security protection system.

Technical Parameters:



Model ML-1600 ML-1800 ML-2000
Max Sheet Size 1600*1200mm 1800*1300mm 2000*1400mm
Working Speed 16±2pcs/min 16±2pcs/min 16±2pcs/min
Max Rule Length 50m 62m 80m
Motor Power 11kw 13.5kw 15kw
Weight 11000kg 13500kg 15000kg
Dimension 2200*2600*2100mm 2250*2800*2200mm 2300*3000*2300mm



High Speed Die Cutting And Creasing Machine / Flat Bed Die Cutting Machine 0
