Platen Die Cutting And Creasing Machine Large Pressure Four Safety Multi Usage

Platen Die Cutting And Creasing Machine Large Pressure Four Safety Multi Usage

Platen Die Cutting And Creasing Machine Large Pressure Four Safety Multi Usage
Platen Die Cutting And Creasing Machine Large Pressure Four Safety Multi Usage
Platen Die Cutting And Creasing Machine Large Pressure Four Safety Multi Usage
Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: ML-750
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 6,000~7,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 15~30 working days
Payment Terms: T/T
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Function: Various Materials Die Cutting Warranty: One Year
Size: Customized Speed: Customized
Color: Customized Voltage: Made To Customer Request
High Light:

corrugated die cutting machine

,

cardboard creasing machine

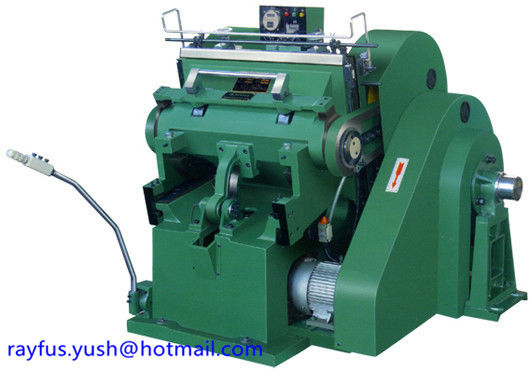

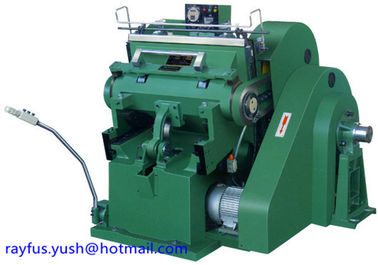

ML-750 Platen Die-cutting and Creasing Machine, large pressure, four safety, multi-usage



ML-750 Platen Die-cutting and Creasing Machine



Functional Specifications:

  1. ML-750 Platen Die-cutting Machine suitable for various sheet materials, paper, cardboard, corrugated cardboard, plastic, leather, etc.
  2. This machine is hand-feeding-style semi-automatic creasing and cutting machine, for which the engineers absorbed advanced structures to improve the design. Major parts: stand, pressure frame, electro-magnetic clutch transmission, electrical controller, automatic reset device, automatic counting parts, and according to different application requirements, designed to derive a series of products with different functions.
  3. This series product is multi-functional, large pressure cutting edge, easy operation, safety features. It applies pressure cutting a variety of forming cardboard, plastic and leather, etc. products. Various high-level fine print can be found in the machine on the convex-concave indentation, and thus the print even more exquisite, beautiful, richer three-dimensional sense.



Technical Parameters:



Model ML-750
Max Sheet Size 750*520mm
Working Speed 28±2pcs/min
Max Rule Length 15m
Motor Power 2.2kw
Weight 2000kg
Dimension 1300*1400*1300mm



Platen Die Cutting And Creasing Machine Large Pressure Four Safety Multi Usage 0



YUSH CARTON MACHINE, your best supplier for Corrugated Cardboard & Carton Box Making Machines

Sincerely, welcome you to join our cooperator team, we shall repay you with top-notch products and perfect services.



Tag:

corrugated die cutting machine,

flat bed die cutting machine,

cardboard creasing machine
