Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: FFG
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 200,000~600,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 30~60 working days
Payment Terms: T/T
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Function: Automtaic Corrugated Carton Box Making Machine Warranty: One Year
Size: Customized Speed: Customized
Color: Customized Voltage: Made To Customer Request
High Light:

5 ply corrugated box making machine

,

corrugated box automatic plant

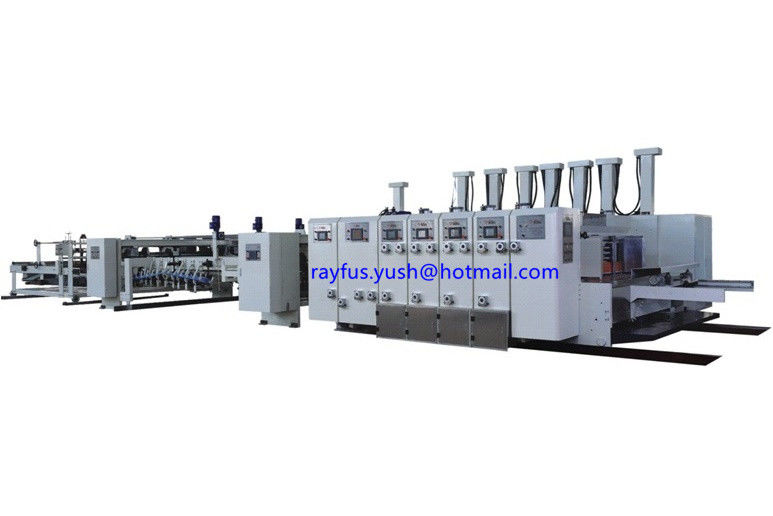

Automatic FFG Box Maker Machine, Flexo Printing Slotting Die-cutting Folding Gluing Strapping Inline



Autmatic FFG Carton Box Maker

Automatic Flexo Printing Slotting Die-cutting

Folding Gluing Strapping Inline Machine

(Lead-edge Feeding, 1~5 colors printing, Computer-control)



Functional Specifications:

  1. This machine can do 1~5 colors flexo printing, slotting, corner-cutting, edge-cutting, creasing, punching, die-cutting, creasing, folding, gluing, counting strapping, etc. at one process.
  2. Adopt vacuum adsorption assist, automatic lead-edge feeding cardboard, accurate and reliable.
  3. Auto-cycle spray lubrication, oil is balanced by mechanical level conduction.
  4. Full-computer-controlled automatic setting measurements, change order quickly.
  5. High precision planet structure for every phase unit, 360 degree adjustment, PLC and digital control.
  6. The chain of transmission line with a unique clamping composite folding belt transmission system, accurate feeding and sleek folding.
  7. Horizontal folding-oriented transmission structure, and to ensure folding accuracy.
  8. Automatically sets the number of computer-controlled discharge.
  9. International standards specification for all electrics and pneumatic components.

Technical Parameters:



Model 920 1224 1428 1632
Max Sheet Size 920*2000mm 1200*2400mm 1450*2800mm 1600*3200mm
Min Sheet size 300*600mm 360*600mm 450*700mm 500*700mm
Max Printing Area 920*1800mm 1200*2200mm 1450*2600mm 1600*3000mm
Min Slotting Distance 155*155*155*155mm 165*165*165*165mm 175*175*175*175mm 185*185*185*185mm
Max Slot Depth 230mm 300mm 360mm 400mm
Max Die-cutting Size 800*1800mm 1100*2200mm 1350*2600mm 1500*3000mm
Folding Type Down-folding
Strapping Type PP belt or PE tape
Design Speed 180pcs/min 180pcs/min 150pcs/min 150pcs/min
