| Place of Origin: | China |
| Brand Name: | YUSH |
| Certification: | CE |
| Model Number: | YKMD-Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 60,000~30,000 per set |
| Packaging Details: | well packaged to loaded in container |
| Delivery Time: | 30~60 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10 sets per month |
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Function: | Corrugated Carton Box Printing Slotting Die-cutting Machine | Warranty: | One Year |
| Size: | Customized | Speed: | Customized |
| Color: | Customized | Voltage: | Made To Customer Request |
| High Light: | 5 ply corrugated box making machine,corrugated box automatic plant |
||

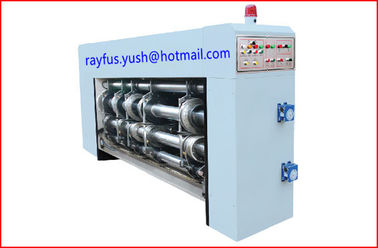

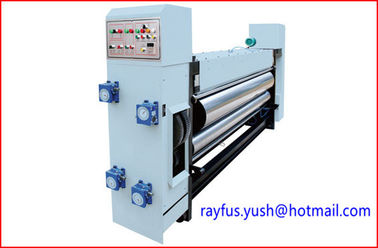

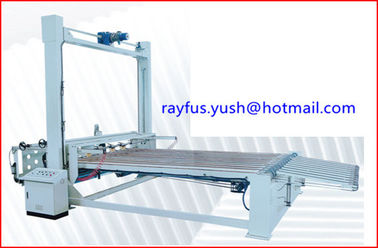

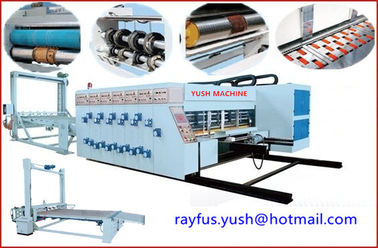

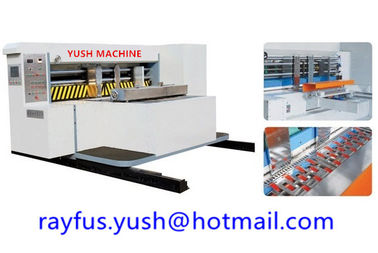

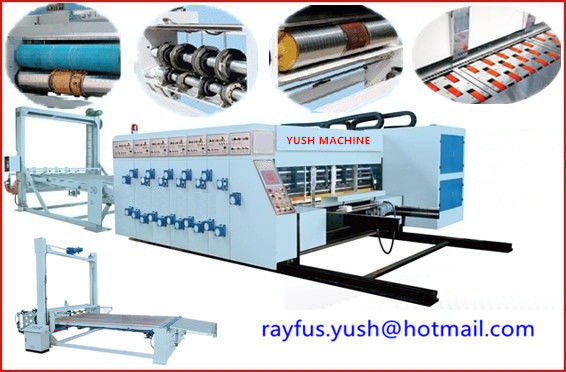

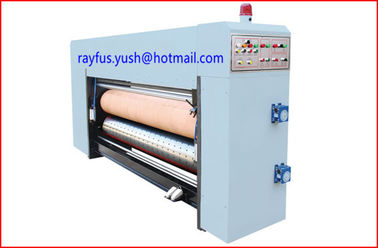

Automatic Flexo Printer Slotter Die-cutter Stacker Machine
(Lead-edge Feeding, 1~5 colors printing, Computer-control)
Functional Specifications:
Technical Parameters:
| Model | 920 | 1224 | 1428 | 1632 |
| Max Sheet Size | 920*2000mm | 1200*2400mm | 1450*2800mm | 1600*3200mm |
| Min Sheet size | 300*600mm | 360*600mm | 450*700mm | 500*700mm |
| Max Printing Area | 920*1800mm | 1200*2200mm | 1450*2600mm | 1600*3000mm |
| Min Slotting Distance | 155*155*155*155mm | 165*165*165*165mm | 175*175*175*175mm | 185*185*185*185mm |
| Max Slot Depth | 230mm | 300mm | 360mm | 400mm |
| Max Die-cutting Size | 800*1800mm | 1100*2200mm | 1350*2600mm | 1500*3000mm |
| Max Stacking Height | 1500mm | 1500mm | 1500mm | 1500mm |
| Design Speed | 180pcs/min | 180pcs/min | 150pcs/min | 150pcs/min |
