Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: YKMZK-Y
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 120,000~600,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 30~60 working days
Payment Terms: T/T
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Function: Automatic Corrugated Carton Box Making Machine Warranty: One Year
Size: Customized Speed: Customized
Color: Customized Voltage: Made To Customer Request
High Light:

flexo printing and die cutting machine

,

flexographic box printing machine

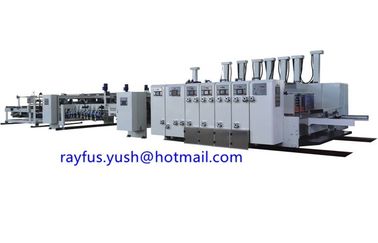

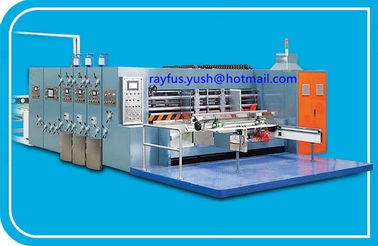

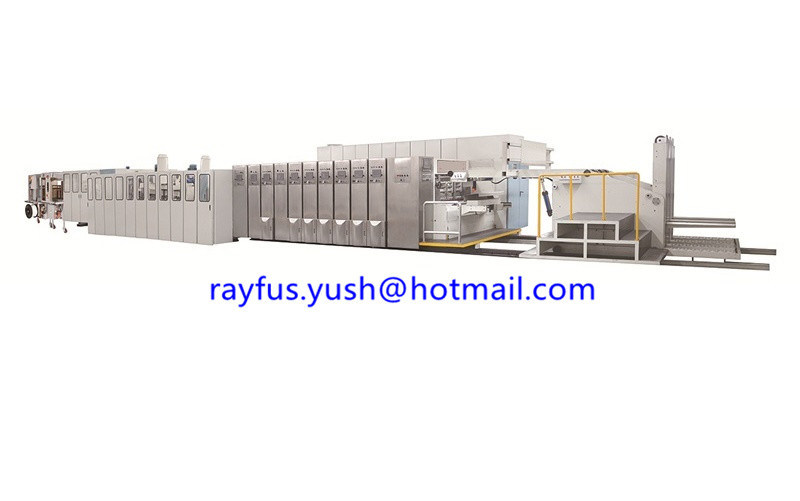

Full-automatic Pre-feeding Flexo Printer Slotter Die-cutter Folder Gluer Strapper Inline Machine

Full-automatic Pre-feeding

Flexo Printer Slotter Die-cutter Folder Gluer Strapper Inline Machine

(Pre-feeding, 1~5 colors printing, Computer-control)



Functional Specifications:

  1. This machine can do 1~5 colors flexo printing, slotting, corner-cutting, edge-cutting, creasing, punching, die-cutting, creasing, folding, gluing, counting strapping, etc. at one process.

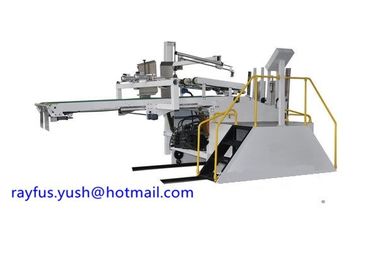

  2. Equipped with Automatic Pre-feeder unit, adopt vacuum adsorption lead-edge feeding cardboard, accurate and reliable.
  3. Spray lubrication, oil is balanced by mechanical level conduction.
  4. Computer-controlled automatic setting, change order quickly.
  5. High precision planet structure for every phase unit, 360 degree adjustment, PLC and digital control.
  6. The chain of transmission line with a unique clamping composite folding belt transmission system, so that feed more accurate, more sleek folding.
  7. Horizontal folding-oriented transmission structure, and to ensure folding accuracy.
  8. Automatically sets the number of computer-controlled discharge.
  9. International standards specification for all electrics and pneumatic components.

Technical Parameters:



Model 920 1224 1428 1632
Max Pre-feeding Height 1500mm 1500mm 1500mm 1500mm
Max Sheet Size 920*2000mm 1200*2400mm 1450*2800mm 1600*3200mm
Min Sheet size 300*600mm 360*600mm 450*700mm 500*700mm
Max Printing Area 920*1800mm 1200*2200mm 1450*2600mm 1600*3000mm
Min Slotting Distance 155*155*155*155mm 165*165*165*165mm 175*175*175*175mm 185*185*185*185mm
Max Slot Depth 230mm 300mm 360mm 400mm
Max Die-cutting Size 800*1800mm 1100*2200mm 1350*2600mm 1500*3000mm
Max Stacking Height 1500mm 1500mm 1500mm 1500mm
Design Speed 180pcs/min 180pcs/min 150pcs/min 150pcs/min



Pre Feeding Flexo Printer Slotter Die Cutter Folder Gluer Strapper Inline Full Automatic 0



YUSH CARTON MACHINE, your best supplier for Corrugated Cardboard & Carton Box Making Machines

Sincerely, welcome you to join our cooperator team, we shall repay you with top-notch products and perfect services.
