YUSH CARTON MACHINE COMPANY
To supply customers, most suitable machine & best quality service, at most reasonable cost

|
| Place of Origin: | China |
| Brand Name: | YUSH |
| Certification: | CE |
| Model Number: | YKS |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 15,000~100,000 per set |
| Packaging Details: | well packaged to loaded in container |
| Delivery Time: | 30~60 working days |
| Payment Terms: | T/T |
| Supply Ability: | 15 sets per month |
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Function: | Printing Slotting For Corrugated Carton Box | Warranty: | One Year |
| Size: | Customized | Speed: | Customized |
| Color: | Customized | Voltage: | Made To Customer Request |
| High Light: | flexo printer slotter machine,flexographic box printing machine |
||

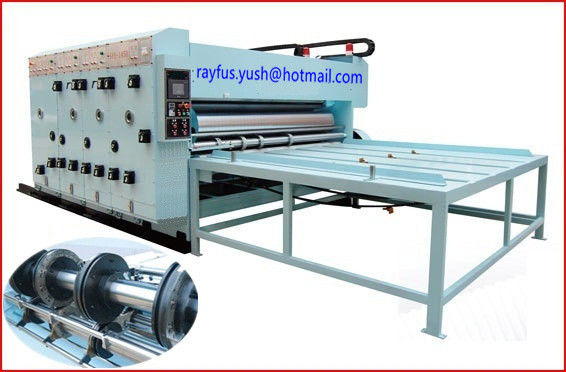

Chain type Flexo Printer Slotter Machine, Semi-auto chain feeding, 1~4 color printing, easy operate
Chain type Flexo Printer Slotter Machine
(chain feeding, 1~4 colors printing)
Function Specifications:
Technical Parameters:
| Model | 920 | 1224 | 1428 | 1632 |
| Max Sheet Size | 920*2000mm | 1200*2400mm | 1450*2800mm | 1600*3200mm |
| Min Sheet size | 300*500mm | 360*500mm | 450*600mm | 500*600mm |
| Max Printing Area | 920*1800mm | 1200*2200mm | 1450*2600mm | 1600*3000mm |
| Min Slotting Distance | 120*120*120*120mm | 120*120*120*120mm | 140*140*140*140mm | 140*140*140*140mm |
| Max Slot Depth | 230mm | 300mm | 360mm | 400mm |
| Design Speed | 60pcs/min | 60pcs/min | 60pcs/min | 60pcs/min |
