YUSH CARTON MACHINE COMPANY



To supply customers, most suitable machine & best quality service, at most reasonable cost

Home ProductsFlexo Printer Slotter Die Cutter

Semi Auto Flexo Printer Slotter Die Cutter Pre Feeder For Carton Box Lead Edge

Semi Auto Flexo Printer Slotter Die Cutter Pre Feeder For Carton Box Lead Edge

Semi Auto Flexo Printer Slotter Die Cutter Pre Feeder For Carton Box Lead Edge
Semi Auto Flexo Printer Slotter Die Cutter Pre Feeder For Carton Box Lead Edge
Semi Auto Flexo Printer Slotter Die Cutter Pre Feeder For Carton Box Lead Edge
Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: SZJ-S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 50,000~80,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 30~60 working days
Payment Terms: T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Function: Pre-feeder For Corrugated Carton Box Making Machine Warranty: One Year
Size: Customized Speed: Customized
Color: Customized Voltage: Made To Customer Request
High Light:

flexo printing and die cutting machine

,

flexographic box printing machine

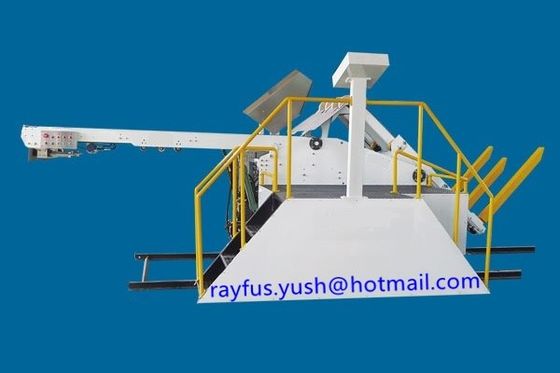

Semi-auto Pre-feeder Machine, for carton box Lead-edge Flexo Printer Slotter Die-cutter machine

Semi-auto Pre-feeder Machine

Functional Specifications:

  1. Semi-auto Pre-feeder, auto lifting, manual turn, auto feeding, auto patting, etc.
  2. One worker operate, save labor and cost, also improve efficiency.
  3. Forks adopt hydraulic lifting system, pushing sheets automatically.
  4. Front and side baffle electrical adjust, bottom clapping baffle auto work.
  5. Horizontal feeding belt auto control to fit the feeder unit.



Automatic Flexo Printer Slotter Die-cutter Stacker

(Lead-edge Feeding, 1~5 colors printing, Computer-control)



Functional Specifications:

  1. This machine could do 1~4 colors printing, slotting, edge-cutting, corner-cutting, creasing, die-cutting, stacking, etc. on corrugated cardboard at one process.
  2. Adopt vacuum adsorption lead-edge feeding cardboard, accurate and reliable.
  3. Adopt cross slider transmission. Adopt spouting style cycle lubricate.
  4. The electric appliances of a whole machine adopt the excellent product by the domestic produces. Phase adjustment adopts planet gear structure, digital input.
  5. All rollers chrome plated, high grade rubber and anilox roller, print elegant pattern.
  6. Adopt pneumatic uplift plate, pneumatic lock close, electric equal ink, pneumatic supply ink, electric separate and retune with pneumatic brakes, etc.
  7. Slotting unit manual combined adjustment for carton box length, width and height.
  8. Die-cutting unit equipped with auto moving and repairing device for longer use life.

Technical Parameters:



Model 920 1224 1428 1632
Max Sheet Size 920*2000mm 1200*2400mm 1450*2800mm 1600*3200mm
Min Sheet size 300*600mm 360*600mm 450*700mm 500*700mm
Max Printing Area 920*1800mm 1200*2200mm 1450*2600mm 1600*3000mm
Min Slotting Distance 155*155*155*155mm 165*165*165*165mm 175*175*175*175mm 185*185*185*185mm
Max Slot Depth 230mm 300mm 360mm 400mm
Max Die-cutting Size 800*1800mm 1100*2200mm 1350*2600mm 1500*3000mm
Max Stacking Height 1500mm 1500mm 1500mm 1500mm
Design Speed 180pcs/min 180pcs/min 150pcs/min 150pcs/min



Semi Auto Flexo Printer Slotter Die Cutter Pre Feeder For Carton Box Lead Edge 0



YUSH CARTON MACHINE, your best supplier for Corrugated Cardboard & Carton Box Making Machines

Sincerely, welcome you to join our cooperator team, we shall repay you with top-notch products and perfect services.
