Automatic Feeding Flexo Corrugated Machine Chain Type 1 ~ 4 Color Printing

Automatic Feeding Flexo Printer Slotter Die-cutter, chain type with auto feeder, 1~4 color printing

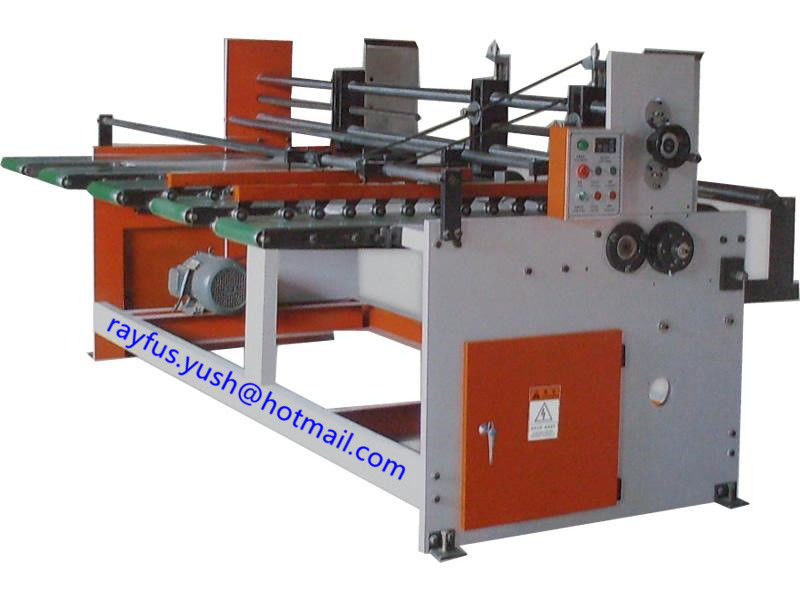

Auto Feeder for Chain type Machine

2) It replaces the original single carrying form with the continuous form.

3) It guarantees the board going straightly, it not only improves the working efficiency, but reduces the workers' labor degree greatly, and it also reduces the quantity of staff.

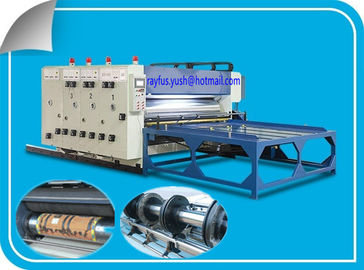

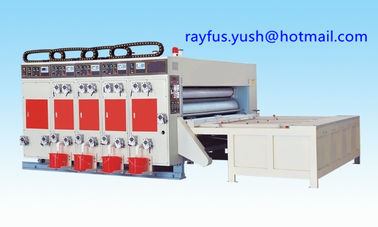

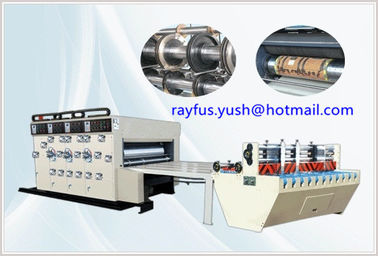

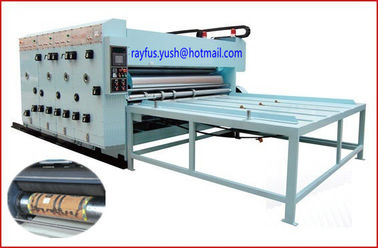

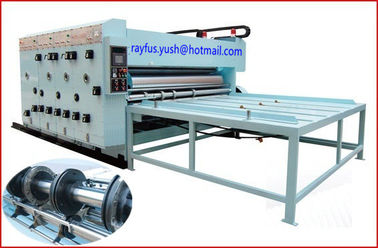

Chain type Flexo Printing Slotting Die-cutting Machine

(chain feeding, 1~4 colors printing)

Functional Specifications:

1. This machine can do 1~4 colors printing, creasing, edge-cutting, slotting, corner-cutting, die-cutting, creasing, etc. at one process.
2. Electric appliances of whole machine adopt excellent domestic products.
3. Adopt cross slider transmission. Adopt spouting style cycle lubricate.
4. All rollers chrome plated, high grade rubber and anilox roller, print elegant pattern.
5. Adopt pneumatic uplift plate, pneumatic lock close, electric equal ink, pneumatic supply ink, electric separate and retune with pneumatic brakes, etc.
6. Phase adjustment adopts planet gear structure, digital input.
7. Slotting unit four knives combined adjustment for carton box height.
8. Die-cutting unit equipped with auto repairing device for longer use life.

Technical Parameters:
