Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: YMD-Q
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 80,000~300,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 30~60 working days
Payment Terms: T/T
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Function: Printing Die-cutting For Corrugated Carton Box Warranty: One Year
Size: Customized Speed: Customized
Color: Customized Voltage: Made To Customer Request
High Light:

flexo printing and die cutting machine

,

flexographic box printing machine

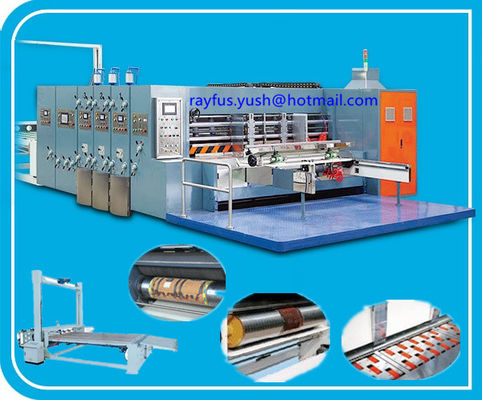

Automatic Flexo Printer Die-cutter Stacker, lead-edge feeder, 1~5 colors printing, computer-control
Automatic Flexo Printer Die-cutter Stacker
(Lead-edge Feeding, 1~5 colors printing, Computer-control)



Technical Parameters:



Model920122414281632
Max Sheet Size920*2000mm1200*2400mm1450*2800mm1600*3200mm
Min Sheet size300*600mm360*600mm450*700mm500*700mm
Max Printing Area920*1800mm1200*2200mm1450*2600mm1600*3000mm
Max Die-cutting Size800*1800mm1100*2200mm1350*2600mm1500*3000mm
Max Stacking Height1500mm1500mm1500mm1500mm
Design Speed180pcs/min180pcs/min150pcs/min150pcs/min



I. Automatic Lead-edge Feeding unit



4 Colour Printing Machine / Computerised Printing Machine Size Customized 0

  1. Vacuum Suction assist lead-edge positioning automatic feeding paper.
  2. Front baffle electrical adjustment, dial display.
  3. Side baffle and back baffle electrical adjustment.
  4. Brush dusting device, effectively clear the surface dust of cardboard.
  5. Skip-feeding function, could select continuous or skip feed cardboard.

II. Flexo Printing unit (1~5 colors top printing)



4 Colour Printing Machine / Computerised Printing Machine Size Customized 1

  1. Standard equipped with metal anilox roller and rubber doctor roller.
  2. Quick hanging plate device, easy and quick change printing plate.
  3. Printing phases adjustment adopt PLC touch screen control, digital 360 degree positive and negative adjust.
  4. Phase device adopts planet gear structure, long use life.
  5. Equipped with electro-magnetic brake device, to stop machine running to keep gear position fixed, while units separate or adjusting phases.
  6. Printing auto reposition system as optional function.
  7. Manual axial position adjustment, distance 20mm.
  8. Equipped with anilox roller auto lifting device, anilox roller lift and separate with printing plate while stop feeding paper.

III. Rotary Die-cutting unit (bottom die-cutting)



4 Colour Printing Machine / Computerised Printing Machine Size Customized 2

  1. Die roller adopt quality steel material, balance regulated, chrome plated.
  2. Wall plate adopts quality cast steel material, larger machining center manufactured.
  3. Rubber roller auto repairing device, improve rubber sleeve repetition use, could repair 3-4 times.
  4. Line speed auto compensate, to ensure completely consistent die-cutting size of each carton.
  5. Adopt Taiwan Maxdura polyurethane rubber pad, easy to install, die-cutting could be 4M times.
  6. Six grade precision gear adopt 40Cr material, low noise, long use life.
  7. Die roller auto separate device, to reduce rubber sleeve wear.

IV. Conveyor Stacking unit



4 Colour Printing Machine / Computerised Printing Machine Size Customized 3

  1. Collecting arms pneumatic lifting, adjustable individually.
  2. Photo-electric control table lifting, adopt hydraulic lifting equipped with balance safety device.
  3. Adopt teeth-type powerful transmitting belts, for better friction and use life.
  4. Equipped with auto holder, to lift while achieve stacking height, and open after pallet changed, no need to stop machine.
