1 ~ 5 Colors Printing Die Cutting Machine For Cardboard / Flexo Printer Slotter Machine

1 ~ 5 Colors Printing Die Cutting Machine For Cardboard / Flexo Printer Slotter Machine

1 ~ 5 Colors Printing Die Cutting Machine For Cardboard / Flexo Printer Slotter Machine
1 ~ 5 Colors Printing Die Cutting Machine For Cardboard / Flexo Printer Slotter Machine
1 ~ 5 Colors Printing Die Cutting Machine For Cardboard / Flexo Printer Slotter Machine
Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: YKSD-Q
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 80,000~300,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 30~60 working days
Payment Terms: T/T
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Function: Printing Slotting For Corrugated Carton Box Warranty: One Year
Size: Customized Speed: Customized
Color: Customized Voltage: Made To Customer Request
High Light:

flexo printer slotter machine

,

flexo printing and die cutting machine

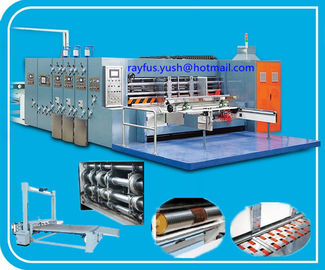

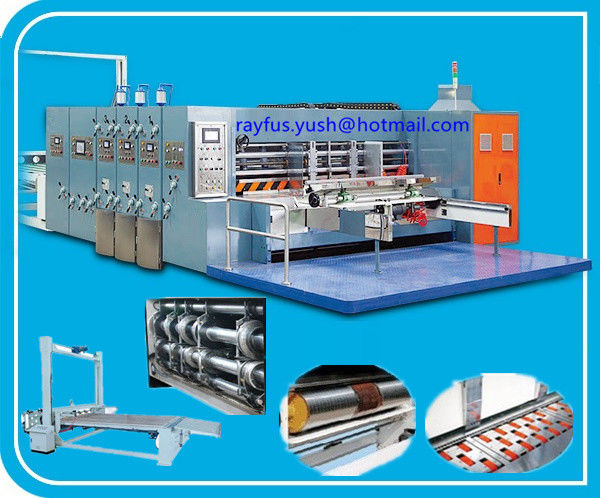

Automatic Flexo Printer Slotter Stacker, lead-edge feeder, 1~5 colors printing, computer-control

Automatic Flexo Printer Slotter Stacker

(Lead-edge Feeding, 1~5 colors printing, Computer-control)



Technical Parameters:



Model 920 1224 1428 1632
Max Sheet Size 920*2000mm 1200*2400mm 1450*2800mm 1600*3200mm
Min Sheet size 300*600mm 360*600mm 450*700mm 500*700mm
Max Printing Area 920*1800mm 1200*2200mm 1450*2600mm 1600*3000mm
Min Slotting Distance 155*155*155*155mm 165*165*165*165mm 175*175*175*175mm 185*185*185*185mm
Max Slot Depth 230mm 300mm 360mm 400mm
Max Stacking Height 1500mm 1500mm 1500mm 1500mm
Design Speed 180pcs/min 180pcs/min 150pcs/min 150pcs/min



I. Automatic Lead-edge Feeding unit



1 ~ 5 Colors Printing Die Cutting Machine For Cardboard / Flexo Printer Slotter Machine 0

  1. Vacuum Suction assist lead-edge positioning automatic feeding paper.
  2. Front baffle electrical adjustment, dial display.
  3. Side baffle and back baffle electrical adjustment.
  4. Brush dusting device, effectively clear the surface dust of cardboard.
  5. Skip-feeding function, could select continuous or skip feed cardboard.

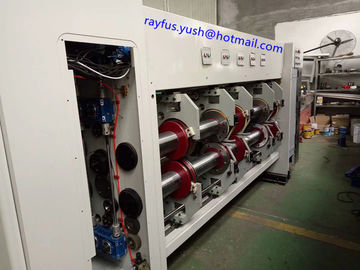

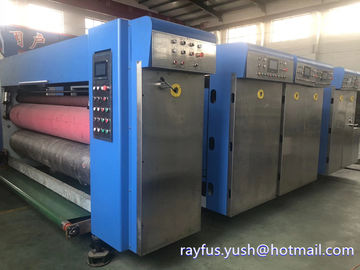

II. Flexo Printing unit (1~5 colors top printing)



1 ~ 5 Colors Printing Die Cutting Machine For Cardboard / Flexo Printer Slotter Machine 1

  1. Standard equipped with metal anilox roller and rubber doctor roller.
  2. Quick hanging plate device, easy and quick change printing plate.
  3. Printing phases adjustment adopt PLC touch screen control, digital 360 degree positive and negative adjust.
  4. Phase device adopts planet gear structure, long use life.
  5. Equipped with electro-magnetic brake device, to stop machine running to keep gear position fixed, while units separate or adjusting phases.
  6. Printing auto reposition system as optional function.
  7. Manual axial position adjustment, distance 20mm.
  8. Equipped with anilox roller auto lifting device, anilox roller lift and separate with printing plate while stop feeding paper..

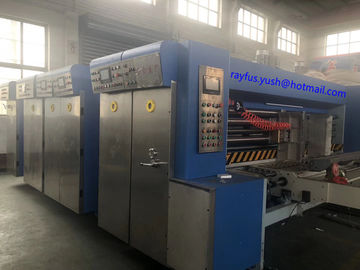

III. Rotary Slotting unit (computer-control)



1 ~ 5 Colors Printing Die Cutting Machine For Cardboard / Flexo Printer Slotter Machine 2

  1. Adopt double axis double knife structure, back knife adopt computer set electrical adjustment.
  2. Five knives stands all movable, distance computer set electrical adjustment.
  3. Knife axes and scoring axes all surface chrome plated and second precision grinded.
  4. Elasticity corner cutting knife, no need to adjust for 3/5/7-layer cardboard.
  5. Manual double direction locking adjust pressing wheel gap, easy and quick adjustment.
  6. Phase fix adopt electro-magnetic brake device, to keep front knife position fixed, while units separate or adjusting phases.



IV. Conveyor Stacking unit



1 ~ 5 Colors Printing Die Cutting Machine For Cardboard / Flexo Printer Slotter Machine 3

  1. Collecting arms pneumatic lifting, adjustable individually.
  2. Photo-electric control table lifting, adopt hydraulic lifting equipped with balance safety device.
  3. Adopt teeth-type powerful transmitting belts, for better friction and use life.
  4. Equipped with auto holder, to lift while achieve stacking height, and open after pallet changed, no need to stop machine.
