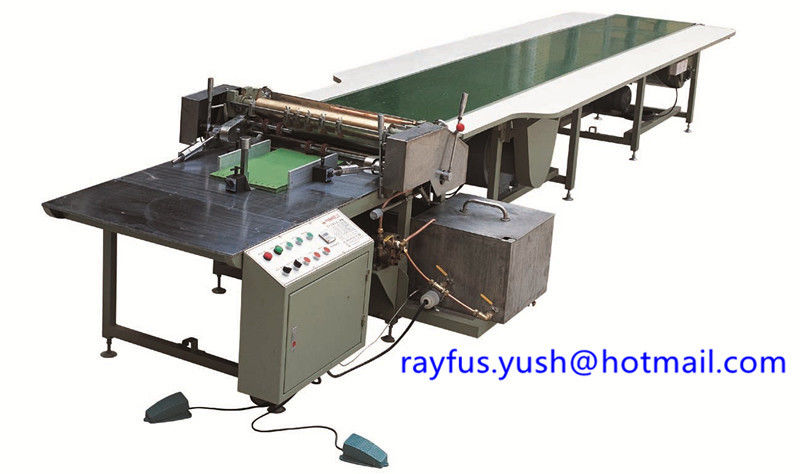

Manual Feeding Flute Laminator Machine Paper Sheet Pasting Hot Melt Glue Or Cold Glue

Manual Feeding Flute Laminator Machine Paper Sheet Pasting Hot Melt Glue Or Cold Glue

Manual Feeding Flute Laminator Machine Paper Sheet Pasting Hot Melt Glue Or Cold Glue
Manual Feeding Flute Laminator Machine Paper Sheet Pasting Hot Melt Glue Or Cold Glue
Manual Feeding Flute Laminator Machine Paper Sheet Pasting Hot Melt Glue Or Cold Glue
Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: ZG-C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 12,000~16,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 30~60 working days
Payment Terms: T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Function: Paper Sheet Feeding And Pasting For Rigid Box Making Warranty: One Year
Size: Customized Speed: Customized
Color: Customized Voltage: Made To Customer Request
High Light:

5 ply flute laminator

,

semi automatic flute laminating machine

Manual Feeding Paper Sheet Pasting Machine, for rigid box making, hot-melt glue or cold glue

Manual Feeding Paper Sheet Pasting Machine



Functional Specifications:

  1. ZG-C Manual Feeding Paper Sheet Pasting Machine adopts latest independent design style sheet paper feeder system, new feeder action agencies to ensure long-term stability, paper full throughout suction conveying, no skew conveyor, suitable various kinds of paper size.
  2. Paper positioning system adopts high precision guide, with magnetic side baffle, to ensure paper automatically on the positive, flexible and secure, and paper back and forth stack part adjustable, to ensure consistent degree of coincidence.
  3. Conveyor ball design, full pressing smooth transmission, with no skew.
  4. Glue supply system adopts professional frequency adjustment gear pump, to ensure stable supply of glue while high-strength rapid operation, circular design, significantly reduce the loss of glue. High-precision adjustable glue roller, easy operation, glue pasting more uniform and save glue.
  5. Circulating glue tank, with indirect heating and temperature control system, to ensure the glue suitable viscosity stable for a long time, built-in cleaning system, could finish cleaning within five minutes.
  6. Conveyor device with suction system, separate paper and stable suction delivery, convenient location, to ensure the entire line flow process.

Technical Parameters:



Model 650 750 850
Max Sheet Width 80~600mm 80~700mm 80~800mm
Paper Thickness 80~250gsm
Cardboard Thickness 1~4mm
Design Speed 40pcs/min
Weight 1200kg 1400kg 1600kg
Dimension 6000*1500*1000mm 7000*1700*1000mm 8000*1900*1000mm



Manual Feeding Flute Laminator Machine Paper Sheet Pasting Hot Melt Glue Or Cold Glue 0
