Hydraulic Semi Automatic Flute Laminating Machine 100 ~ 1500gsm Cardboard Support

Hydraulic Semi Automatic Flute Laminating Machine 100 ~ 1500gsm Cardboard Support

Hydraulic Semi Automatic Flute Laminating Machine 100 ~ 1500gsm Cardboard Support
Hydraulic Semi Automatic Flute Laminating Machine 100 ~ 1500gsm Cardboard Support
Hydraulic Semi Automatic Flute Laminating Machine 100 ~ 1500gsm Cardboard Support
Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: KFMJ-D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 20,000~25,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 30~60 working days
Payment Terms: T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Function: Thick Cardboard Sheet Laminating Warranty: One Year
Size: Customized Speed: Customized
Color: Customized Voltage: Made To Customer Request
High Light:

semi automatic flute laminating machine

,

automatic sheet pasting machine

,

cardboard pneumatic hydraulic cardboard laminator

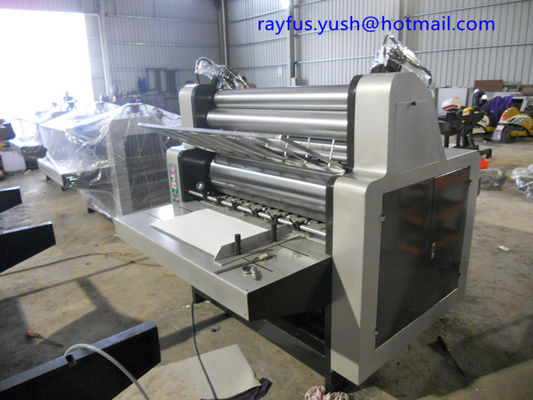

KFMJ-D Pneumatic Hydraulic Cardboard Laminator



Functional Specifications:

  1. KFMJ-D Pneumatic Hydraulic Cardboard Laminator is a new developed model on the basis of model A and B, C, it is an integration of pneumatic, hydraulic, photoelectric and mechanical technology.
  2. Equipped with photoelectric counting, no-sheet detecting function and full-hydraulic device, adopts imported pneumatic, hydraulic auto-lock and photo-electric components, with a capable of automatically controlling false actions while no sheet feeding, i.e. if there is no paper input on either sides while laminating, the other side will stop feeding, to avoid pasted paper glue on the big roller due to no paper laminated with the paper, save time of cleaning rollers, therefore reduce the troubles, significantly cut down defect rate for laminated paper, improve accuracy and speed of laminating.
  3. This machine also adopts advanced hydraulic technology auto-locking, to complete the whole process of paper pasting, laminating and pressing, to achieve even pasting, save glue and make sure better laminating effect.
  4. The machine is easy to operate with productive, high quality, smooth and beautiful laminated paper.
  5. This machine is incomparable with any cardboard laminator in current market, is the most advanced multi-functional cardboard laminator among similar products.
  6. It is ideal special equipment for laminating and making high grade cardboard for other applications used for various package boxes.
  7. This machine can laminate paperboard weight from 100-1500gsm and generally use starch glue for lamination.

Technical Parameters:



Model 1000 1150
Max Sheet Size 960*620mm 1110*680mm
Min Sheet Size 280*280mm 320*320mm
Paper Thickness 100~1500gsm
Laminating Precision ±0.2mm
Design Speed 45pcs/min
Weight 2200kg 2500kg
Dimension 2100*1500*1600mm 2300*1700*1800mm
