|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Price:||USD 15,000~20,000 per set|
|Packaging Details:||well packaged to loaded in container|
|Delivery Time:||30~60 working days|
|Supply Ability:||30 sets per month|
|Condition:||New||After-sales Service Provided:||Engineers Available To Service Machinery Overseas|
|Function:||Slitting And Creasing Corrugated Cardboard Line||Warranty:||One Year|
|Color:||Customized||Voltage:||Made To Customer Request|

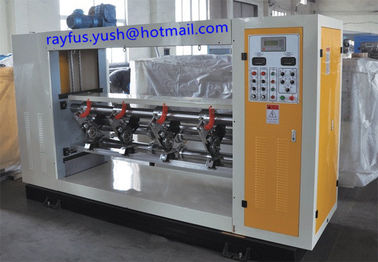

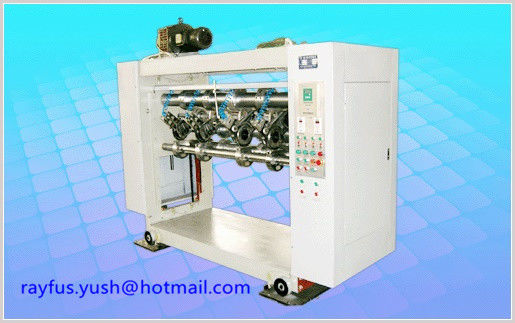

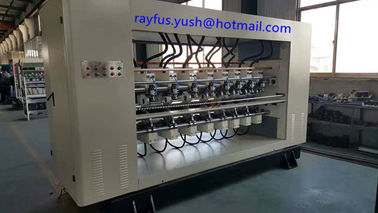

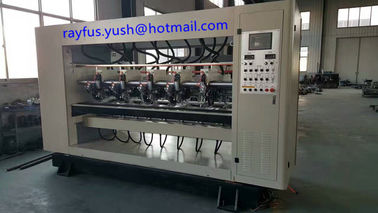

slitter scorer corrugated,
thin blade rotary machine
1) This machine as an important part of the corrugated cardboard production line is used to do the slitting and creasing.
2) Machine electrically lift-down, to meet different production lines cardboard height.
3) Machine with the electric axial displacement device, efficiently coordinate with cardboard misregistration.
4) Manually adjust cardboard specifications, simple and practical.
5) Transmission part adopts synchronous belt, high accuracy.
6) Slitting unit adopt high-speed thin blade, the cardboard cutting edge flat, smooth, without crowded bifida and collapsed; pneumatic grinding; grinding automatically or manually while production process, grinding-time and stop-time can be setup, to ensure that the blade edge sharp.
7) Frequency control speed, speed encoder get production speed through velocimetry wheel directly, to ensure synchronous running with production line.
|Max Effective Width||1100~2500mm|
|Min Slitting Distance||160mm|
|Min Scoring Distance||60mm|
