YUSH CARTON MACHINE COMPANY
To supply customers, most suitable machine & best quality service, at most reasonable cost

|
| Place of Origin: | China |
| Brand Name: | YUSH |
| Certification: | CE |
| Model Number: | DMT-D |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 50,000~150,000 per set |
| Packaging Details: | well packaged to loaded in container |
| Delivery Time: | 30~60 working days |
| Payment Terms: | T/T |
| Supply Ability: | 15 sets per month |
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Function: | Auto Collecting, Counting, Stacking And Output Corrugated Cardboard Sheets | Warranty: | One Year |
| Size: | Customized | Speed: | Customized |
| Color: | Customized | Voltage: | Made To Customer Request |
| Type: | Double-layer Stacker To Fit Duplex Cut-off Machine | ||
| High Light: | double facer corrugated machine,automatic carton making machine |
||

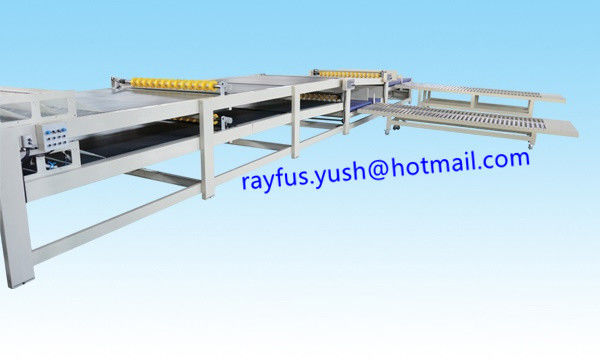

Technical Parameters:
1) Automatic sheet stacking and side delivery.
2) Simplex or duplex down stacker structure.
3) Hydraulic servo valve control of elevator deck, ensure stable and quickly stacking.
4) Conveyor belt keeping synchronous with production line speed, keep stacking stable.
5) PLC control system to follow production line speed , delivery paper sheet, control elevator deck up and down, control back stop positioning clapboard to achieved automatic order change.
6) Adopt fiberglass brush press paperboard, and according to paperboard length adjust pressure. Exit of paper sheet delivery with press brush, anti-excursion and guide paper sheet correct delivery.
7) Subsection independent driver by AC frequency conversion motor, automatic follow production speed of production line, ensure stable and quickly stacking.
8) This machine can be connect with production management system to achieved order change and order management.
9) Adopt man-machine conversation and touch screen display, easy operation.
10) Automatic clapboard setting for sheet length, and automatic paper sheet side delivery.
11) Double-layer Stacker to work with NC Duplex Cut-off Machine.
Technical Parameters:
| Max Effective Width | 1100~2500mm |
| Max Stacking Length | 3000mm |
| Max Stacking Height | 300mm |
| Design Speed | 100~250m/min |
| Working Speed | 80~220m/min |
| Remarks | Double-layer Stacker to fit NC Duplex Cut-off machine |

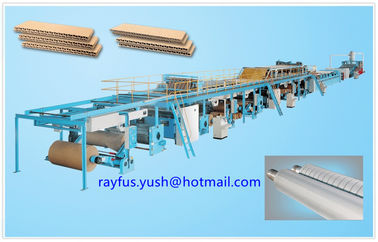

3/5/7-layer Corrugated Cardboard Production Line
YUSH CARTON MACHINE, your best supplier for Corrugated Cardboard & Carton Box Making Machines
Sincerely, welcome you to join our cooperator team, we shall repay you with top-notch products and perfect services.
Contact Person: admin
Tel: +8615690196799

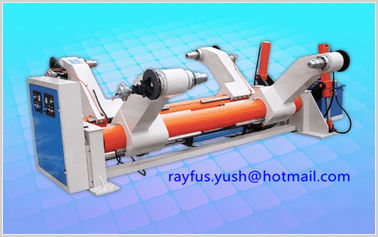

Custom Corrugated Cardboard Production Line / Shaftless Hydraulic Mill Roll Stand

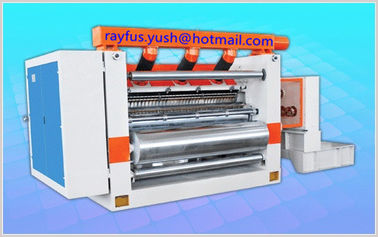

Fingerless Corrugated Cardboard Production Line Single Facer Vacuum Adsorption Corrugator

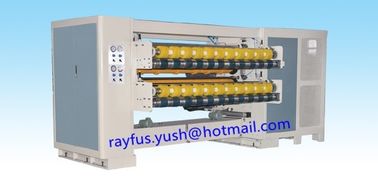

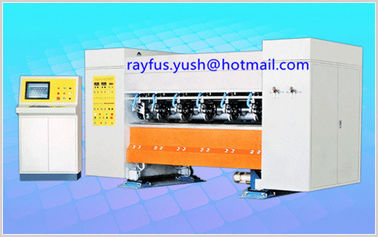

Thin Blade Slitter Scorer / Carton Manufacturing Machine Computer Servo Control
