Right Angle Stacker Corrugated Cardboard Production Line / Automatic Carton Making Machine

Right Angle Stacker Corrugated Cardboard Production Line / Automatic Carton Making Machine

Right Angle Stacker Corrugated Cardboard Production Line / Automatic Carton Making Machine
Right Angle Stacker Corrugated Cardboard Production Line / Automatic Carton Making Machine
Right Angle Stacker Corrugated Cardboard Production Line / Automatic Carton Making Machine
Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: DMT
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 15,000~60,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 30~60 working days
Payment Terms: T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Function: Auto Collecting, Counting, Stacking And Output Corrugated Cardboard Sheets Warranty: One Year
Size: Customized Speed: Customized
Color: Customized Voltage: Made To Customer Request
High Light:

double facer corrugated machine

,

automatic carton making machine

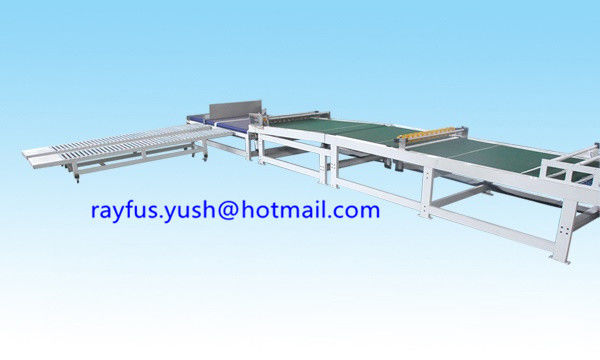

NC Gantry Stacker, conveyor lifting up, auto counting, for Corrugated Cardboard Production Line

NC Right-angle Conveyor Stacker


Technical Parameters:



1) Automatic sheet stacking and side delivery.

2) Simplex or duplex down stacker structure.

3) Hydraulic servo valve control of elevator deck, ensure stable and quickly stacking.

4) Conveyor belt keeping synchronous with production line speed, keep stacking stable.

5) PLC control system to follow production line speed , delivery paper sheet, control elevator deck up and down, control back stop positioning clapboard to achieved automatic order change.

6) Adopt fiberglass brush press paperboard, and according to paperboard length adjust pressure. Exit of paper sheet delivery with press brush, anti-excursion and guide paper sheet correct delivery.

7) Subsection independent driver by AC frequency conversion motor, automatic follow production speed of production line, ensure stable and quickly stacking.
8) This machine can be connect with production management system to achieved order change and order management.

9) Adopt man-machine conversation and touch screen display, easy operation.
10) Automatic clapboard setting for sheet length, and automatic paper sheet side delivery.



Technical Parameters:


Max Effective Width 1100~2500mm
Max Stacking Length 3000mm
Max Stacking Height 300mm
Design Speed 100~250m/min
Working Speed 80~220m/min

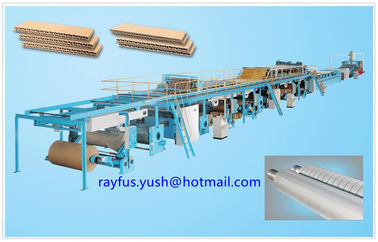

 3/5/7-layer Corrugated Cardboard Production Line


Right Angle Stacker Corrugated Cardboard Production Line / Automatic Carton Making Machine 0
