Side Moving Corrugated Box Manufacturing Machine Slitter Scorer Electrical Adjust

Side Moving Corrugated Box Manufacturing Machine Slitter Scorer Electrical Adjust

Side Moving Corrugated Box Manufacturing Machine Slitter Scorer Electrical Adjust
Side Moving Corrugated Box Manufacturing Machine Slitter Scorer Electrical Adjust
Side Moving Corrugated Box Manufacturing Machine Slitter Scorer Electrical Adjust
Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: ZQS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 15,000~20,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 30~60 working days
Payment Terms: T/T
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Function: Slitting And Creasing Corrugated Cardboard Warranty: One Year
Size: Customized Speed: Customized
Color: Customized Voltage: Made To Customer Request
High Light:

double facer corrugated machine

,

automatic carton making machine

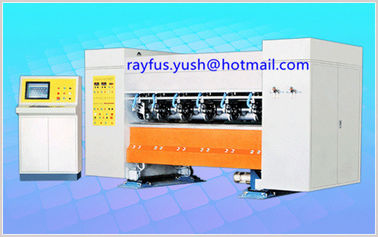

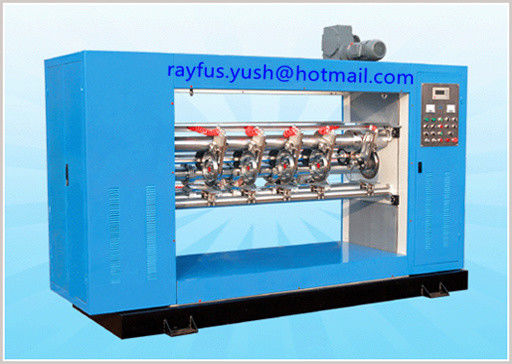

Side-moving Thin Blade Slitter Scorer, electrical adjust, for Corrugated Cardboard Production Line

Side-moving Thin Blade Slitter Scorer


Technical Parameters:



1) This machine as an important part of the corrugated cardboard production line is used to do the slitting and creasing.

2) Machine electrically lift-down, to meet different production lines cardboard height.

3) Machine with the electric axial displacement device, efficiently coordinate with cardboard misregistration.

4) Manually adjust cardboard specifications, simple and practical.

5) Transmission part adopts synchronous belt, high accuracy.

6) Slitting unit adopt high-speed thin blade, the cardboard cutting edge flat, smooth, without crowded bifida and collapsed; pneumatic grinding; grinding automatically or manually while production process, grinding-time and stop-time can be setup, to ensure that the blade edge sharp.

7) Frequency control speed, speed encoder get production speed through velocimetry wheel directly, to ensure synchronous running with production line.



Technical Parameters:


Max Effective Width 1100~2500mm
Slitting Knife 4~6pcs
Min Slitting Distance 160mm
Scoring Wheel 6~10pairs
Min Scoring Distance 60mm
Design Speed 100~150m/min
Working Speed 80~120m/min

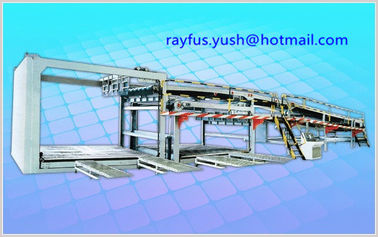

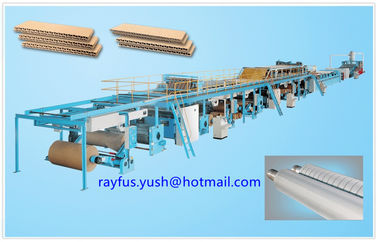

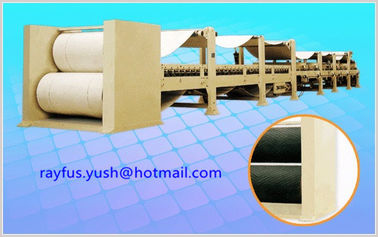

 3/5/7-layer Corrugated Cardboard Production Line
