YUSH CARTON MACHINE COMPANY
To supply customers, most suitable machine & best quality service, at most reasonable cost

|
| Place of Origin: | China |
| Brand Name: | YUSH |
| Certification: | CE |
| Model Number: | GM |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 15,000~60,000 per set |
| Packaging Details: | well packaged to loaded in container |
| Delivery Time: | 30~60 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per month |
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Function: | Pasting Glue On Corrugated Surface | Warranty: | One Year |
| Size: | Customized | Speed: | Customized |
| Color: | Customized | Voltage: | Made To Customer Request |
| High Light: | double facer corrugated machine,automatic carton making machine,corrugated cardboard multiple gluer machine |
||
Technical Parameters:
1) Special line on the surface of the glue applicator roller, surface and hard chrome plating, even glue supply, low cost.
2) The glue applicator drive by frequency conversion motor with inverter. Keep the synchronization for glue applicator roller and double baker facer machine by inverter. And independent running.
3) Adjustment for gap between glue roller and doctor roller by electric or manual are optional, Digital read out for the gap between glue roll and doctor roll is optional.
4) Press roll moves up and down by pneumatic. Gap mini-adjustment by electric.
5) Self-circulating glue supplying system to avoid glue hardening and to control glue quantity Keeping the glue good quality and saving.
Technical Parameters:
| Max Effective Width | 1100~2500mm |
| Gluing Roller Diameter | 240~320mm |
| Design Speed | 100~250m/min |
| Working Speed | 80~220m/min |

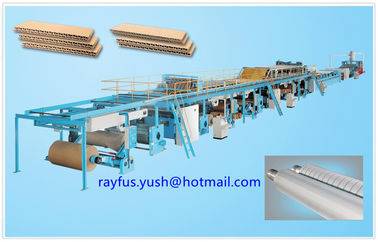

3/5/7-layer Corrugated Cardboard Production Line
