YUSH CARTON MACHINE COMPANY
To supply customers, most suitable machine & best quality service, at most reasonable cost

|
| Place of Origin: | China |
| Brand Name: | YUSH |
| Certification: | CE |
| Model Number: | WG |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 8,000~50,000 per set |
| Packaging Details: | well packaged to loaded in container |
| Delivery Time: | 60~90 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per month |
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|

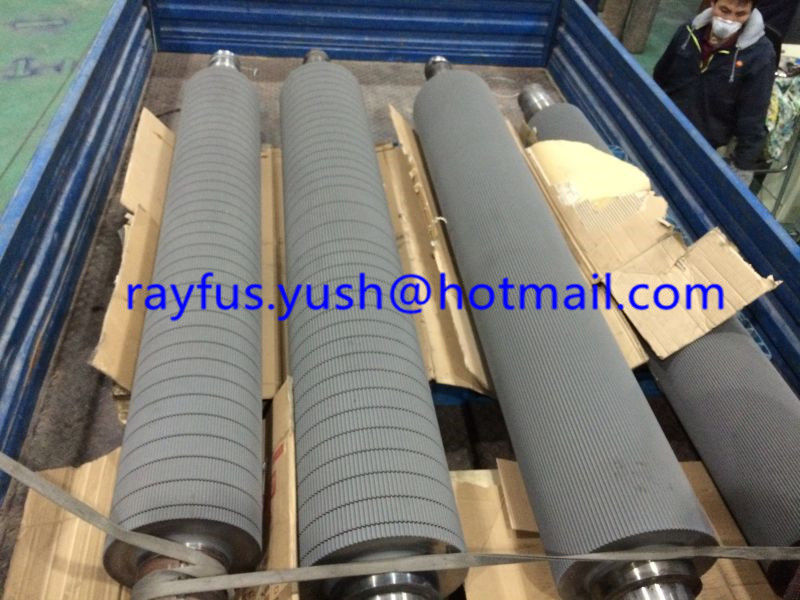

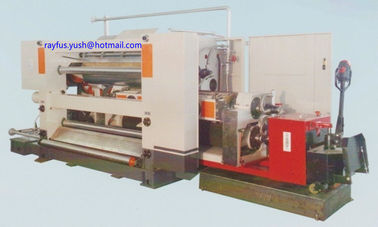

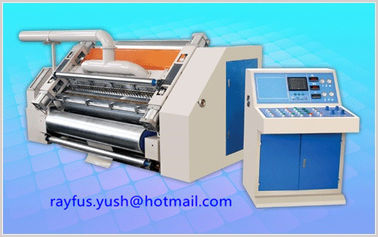

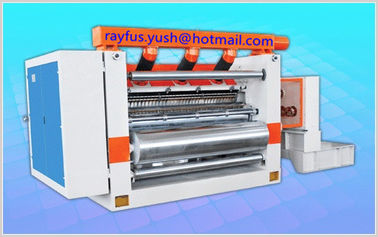

| Function: | Flute Roller For Single Facer Corrugator | Warranty: | One Year |
| Size: | Customized | Speed: | Customized |
| Color: | Customized | Voltage: | Made To Customer Request |
| High Light: | double facer corrugated machine,automatic carton making machine,corrugating roller for single facer |
||
| Flute List | |||||
| No. | Flute Type | Height | Pitch | Flutes/300mm | Contraction Rate |
| 1 | G | 0.55 | 1.818 | 165 | 1.219 |
| 2 | G | 0.65 | 2.2 | 136.37 | 1.212 |
| 3 | G | 0.62 | 2.069 | 145 | 1.215 |
| 4 | F | 0.74 | 2.343 | 128 | 1.237 |
| 5 | F | 0.7 | 2.54 | 118 | 1.185 |
| 6 | F | 0.8 | 2.4 | 125 | 1.259 |
| 7 | F | 0.8 | 2.5 | 120 | 1.24 |
| 8 | F | 0.9 | 2.75 | 109 | 1.245 |
| 9 | F | 0.95 | 2.75 | 109 | 1.22 |
| 10 | F | 0.95 | 2.65 | 113 | 1.29 |
| 11 | E | 1.05 | 2.92 | 102.74 | 1.294 |
| 12 | E | 1.2 | 3.3 | 91 | 1.303 |
| 13 | E | 1.2 | 3.49 | 85.96 | 1.266 |
| 14 | E | 1.3 | 3.3 | 91 | 1.317 |
| 15 | E | 1.45 | 3.616 | 83 | 1.35 |
| 16 | E | 1.35 | 3.26 | 92 | 1.38 |
| 17 | E | 1.35 | 3.57 | 84 | 1.314 |
| 18 | E | 1.3 | 3.55 | 84.51 | 1.3 |
| 19 | E | 1.35 | 3.515 | 85.47 | 1.31 |
| 20 | E | 1.3 | 3.41 | 87.98 | 1.34 |
| 21 | E | 1.35 | 3.762 | 80.52 | 1.288 |
| 22 | E | 1.4 | 3.58 | 83.8 | 1.334 |
| 23 | E | 1.0 | 3.15 | 95 | 1.233 |
| 24 | E | 1.4 | 3.95 | 76 | 1.28 |
| 25 | BE | 1.55 | 3.8 | 79 | 1.358 |
| 26 | BE | 1.55 | 4.15 | 73 | 1.3 |
| 27 | BE | 1.6 | 3.67 | 81.75 | 1.398 |
| 28 | BE | 1.6 | 3.616 | 83 | 1.407 |
| 29 | BE | 1.65 | 3.95 | 76 | 1.369 |
| 30 | BE | 1.6 | 4.05 | 74 | 1.332 |
| 31 | BE | 1.6 | 3.95 | 76 | 1.342 |
| 32 | BE | 1.6 | 4.65 | 74 | 1.342 |
| 33 | BE | 1.6 | 4.22 | 71 | 1.308 |
| 34 | BE | 1.7 | 4.166 | 72 | 1.349 |
| 35 | BE | 1.7 | 4.05 | 74 | 1.367 |
| 36 | BE | 1.75 | 4.85 | 61 | 1.279 |
| 37 | BE | 1.75 | 4.129 | 72.6 | 1.35 |
| 38 | BE | 1.8 | 4.15 | 73 | 1.39 |
| 39 | BE | 1.8 | 4.28 | 70 | 1.375 |
| 40 | BE | 1.9 | 4.15 | 72.29 | 1.428 |
| 41 | BE | 1.9 | 4.55 | 66 | 1.365 |
| 42 | BE | 1.9 | 4.75 | 63.16 | 1.341 |
| 43 | BE | 1.9 | 4.615 | 65 | 1.365 |
| 44 | BE | 2.0 | 4.5 | 66.67 | 1.417 |
| 45 | BE | 2.1 | 4.35 | 69 | 1.476 |
| 46 | BE | 2.35 | 4.7 | 64 | 1.48 |
| 47 | BE | 2.25 | 4.615 | 65 | 1.47 |
| 48 | B | 2.55 | 6.25 | 48 | 1.356 |
| 49 | B | 2.6 | 5.0 | 60 | 1.51 |
| 50 | B | 2.7 | 6.41 | 46.8 | 1.373 |
| 51 | B | 2.65 | 6.41 | 46.8 | 1.362 |
| 52 | B | 2.7 | 6.0 | 50 | 1.42 |
| 53 | B | 2.65 | 6.5 | 46.16 | 1.361 |
| 54 | B | 2.65 | 6.0 | 20 | 1.411 |
| 55 | B | 2.6 | 6.41 | 46.8 | 1.411 |
| 56 | B | 2.65 | 6.0 | 50 | 1.409 |
| 57 | B | 2.65 | 6.25 | 48 | 1.37 |
| 58 | B | 2.7 | 6.25 | 48 | 1.38 |
| 59 | B | 2.75 | 6.25 | 48 | 1.404 |
| 60 | B | 2.8 | 4.28 | 46.67 | 1.388 |
| 61 | B | 2.8 | 6.67 | 45 | 1.363 |
| 62 | B | 2.8 | 6.25 | 48 | 1.42 |
| 63 | B | 2.8 | 6.0 | 50 | 1.45 |
| 64 | B | 2.85 | 6.7 | 44.78 | 1.389 |
| 65 | B | 2.93 | 6.0 | 50 | 1.488 |
| 66 | B | 2.8 | 5.85 | 51.29 | 1.471 |
| 67 | B | 2.8 | 6.12 | 49 | 1.434 |
| 68 | B | 2.75 | 6.27 | 48 | 1.38 |
| 69 | BC | 3.0 | 6.0 | 50 | 1.484 |
| 70 | BC | 3.0 | 6.38 | 47 | 1.45 |
| 71 | BC | 3.0 | 6.25 | 48 | 1.47 |
| 72 | BC | 3.25 | 6.8 | 44 | 1.45 |
| 73 | BC | 3.2 | 6.45 | 46.52 | 1.49 |
| 74 | BC | 3.3 | 7.15 | 42 | 1.4 |
| 75 | BC | 3.0 | 6.25 | 46 | 1.435 |
| 76 | BC | 2.9 | 6.25 | 48 | 1.441 |
| 77 | BC | 2.9 | 6.37 | 47 | 1.425 |
| 78 | BC | 3.3 | 7.3 | 41 | 1.419 |
| 79 | C | 3.4 | 7.89 | 38 | 1.369 |
| 80 | C | 4.0 | 7.5 | 40 | 1.54 |
| 81 | C | 3.85 | 8.1 | 37 | 1.451 |
| 82 | C | 3.8 | 7.8 | 38.47 | 1.44 |
| 83 | C | 3.95 | 77 | 39 | 1.512 |
| 84 | C | 3.55 | 7.89 | 38 | 1.39 |
| 85 | C | 3.6 | 7.419 | 40.44 | 1.48 |
| 86 | C | 3.7 | 8.15 | 37 | 1.42 |
| 87 | C | 3.8 | 8.35 | 36 | 1.42 |
| 88 | C | 3.85 | 7.87 | 38 | 1.471 |
| 89 | C | 3.8 | 7.87 | 38 | 1.46 |
| 90 | C | 3.85 | 7.7 | 39 | 1.494 |
| 91 | C | 4.0 | 8.33 | 36 | 1.495 |
| 92 | C | 4.1 | 7.89 | 38 | 1.5 |
| 93 | C | 4.15 | 7.89 | 38 | 1.545 |
| 94 | C | 4.2 | 7.8 | 38 | 1.56 |
| 95 | C | 4.3 | 8.35 | 36 | 1.514 |
| 96 | A | 4.6 | 8.33 | 36 | 1.572 |
| 97 | A | 4.6 | 8.6 | 35 | 1.54 |
| 98 | A | 4.5 | 8.75 | 34.29 | 1.51 |
| 99 | A | 4.6 | 8.828 | 34 | 1.562 |
| 100 | A | 4.7 | 8.5 | 35.3 | 1.58 |
| 101 | A | 4.7 | 8.8 | 34 | 1.542 |
| 102 | A | 4.7 | 8.35 | 36 | 1.61 |
| 103 | A | 4.85 | 8.6 | 35 | 1.57 |
| 104 | A | 4.95 | 8.6 | 35 | 1.61 |
| 105 | A | 4.79 | 9.22 | 32.54 | 1.518 |
| 106 | A | 5.0 | 9.38 | 32 | 1.53 |
| 107 | A | 4.4 | 8.828 | 34 | 1.462 |
| 108 | K | 10 | 18 | 16.67 | |
Technical Parameters:
| Flute Type | A/C/B/E/F/G flute, made to customer request |
| Roller Diameter | 200~450mm, made to customer request |
| Roller Width | 1100~2500mm, made to customer request |
| Design Speed | 100~250m/min, depends on roller diameter |
| Heating Method | Electrical, Oil or Steam Heating, made to customer request |
| Working Speed | 80~220m/min, depends on roller diameter |
