YUSH CARTON MACHINE COMPANY
To supply customers, most suitable machine & best quality service, at most reasonable cost

|
| Place of Origin: | China |
| Brand Name: | YUSH |
| Certification: | CE |
| Model Number: | ZXG |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 25,000~30,000 per set |
| Packaging Details: | well packaged to loaded in container |
| Delivery Time: | 15~30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 15 sets per month |
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Function: | Paper Straw Making Machine | Warranty: | One Year |
| Size: | Customized | Speed: | Customized |
| Color: | Customized | Voltage: | Made To Customer Request |
| High Light: | paper cup making machine,paper slitting and rewinding machine,plc control paper straw making machine |
||

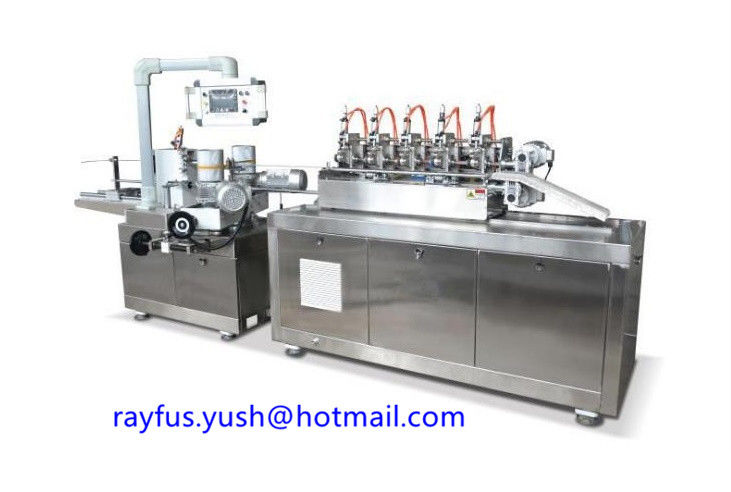

Paper Straw Making Machine, for drinks, high efficiency, PLC control, multi-knife cutting
Paper Straw Making Machine
Functional Specifications:
1) High speed paper straw machine integrates raw material feeding, guling, winding and cutting on one time.
2) The machine within CNC multi-tool cutting system, can make any size paper straw, like the size 6mm, 8mm, 10mm, etc.
3) The machine is controlled by PLC, the host machine is equipped with frequency conversion speed regulation and the man-machine interface is a touch screen, with simple settinng ad convenient operation.

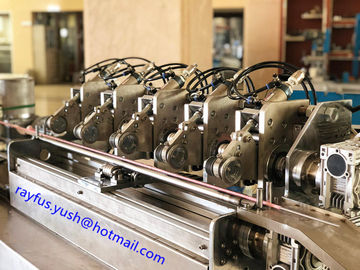

4) The cutting part adopts te multi-tool cutting system for serving custtomers and the servo motor keeps track of cutting synchronously with a high precision and time-saving efficiency.
5) The body and main parts are made of stainless steel to ensure the product is hygienic and enviornment-friendly.
Technical Parameters:
| Paper Straw Material | 3-layer (inside paper 2-layer 120gsm, outside paper 60gsm) |
| Gluing Method | 3-layer (single & double side, 50kg glue 200,000pcs straws) |
| Straw Inner Size | 4.7~20mm |
| Straw Wall Thickness | 0.2~2mm |
| Cutting Knife | 5pcs knives (servomotor synchronous tracking cutting inline) |
| Design Speed | 50m/min |
YUSH CARTON MACHINE, your best supplier for Corrugated Cardboard & Carton Box Making Machines
Sincerely, welcome you to join our cooperator team, we shall repay you with top-notch products and perfect services.
Contact Person: Lois
Tel: +8615533188967
