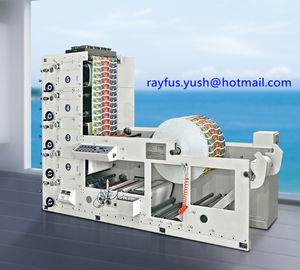

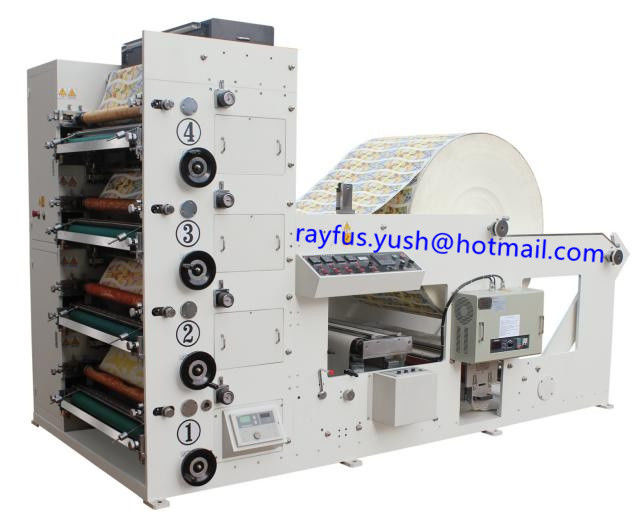

Automatic Reel Paper Flexo Printing Machine 1 ~ 5 Colors Printing Optional

Automatic Reel Paper Flexo Printing Machine 1 ~ 5 Colors Printing Optional

  • Automatic Reel Paper Flexo Printing Machine 1 ~ 5 Colors Printing Optional
  • Automatic Reel Paper Flexo Printing Machine 1 ~ 5 Colors Printing Optional
  • Automatic Reel Paper Flexo Printing Machine 1 ~ 5 Colors Printing Optional
  • Automatic Reel Paper Flexo Printing Machine 1 ~ 5 Colors Printing Optional
Automatic Reel Paper Flexo Printing Machine 1 ~ 5 Colors Printing Optional
Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: YSR
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 40,000~60,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 30~60 working days
Payment Terms: T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Function: Reel Paper Flexo Printing Machine Warranty: One Year
Size: Customized Speed: Customized
Color: Customized Voltage: Made To Customer Request
High Light:

paper cup forming machine

,

paper slitting and rewinding machine

,

reel paper flexo printing machine

Reel Paper Flexo Printing Machine, for paper cup or paper straw making, 1~5 colors printing

Reel Paper Flexo Printing Machine



Functional Specifications:



  1. This Flexo Printing Machine is mainly for reel paper printing.
  2. Auto tension control system for unwinding and rewinding.
  3. Electronic paper web guide traction device, there was a small offset paper web movement, the system can accurately continuously revised.
  4. Dual pressure roller feeding paper together, tension adjusted.
  5. Four Color printing unit, with infrared heating drying system.
  6. Printing unit adopt helical gear structure, reserved image detection station, net roller, version roller pressure pneumatic clutch.
  7. Quick change plate cylinder without any tools,
  8. When stop, ink roller separate automatically, and rotary slowly, to avoid ink dried.
  9. Horizantal model for higher speed as optional.

Technical Parameters:



Paper Thickness 180~420gsm
Max Paper Roll Width 950mm
Max Printing Width 920mm
Max Paper Roll Diameter 1400mm
Printing Perimeter 180~420mm
Register Precision ±​0.12mm
Design Speed 120m/min





Automatic Reel Paper Flexo Printing Machine 1 ~ 5 Colors Printing Optional 0
