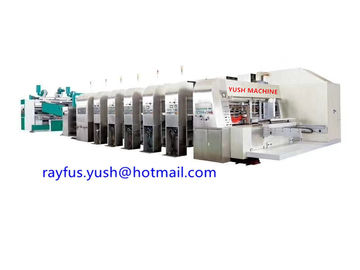

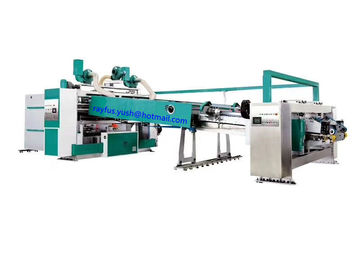

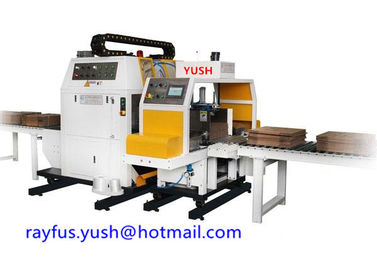

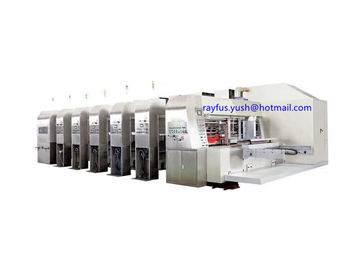

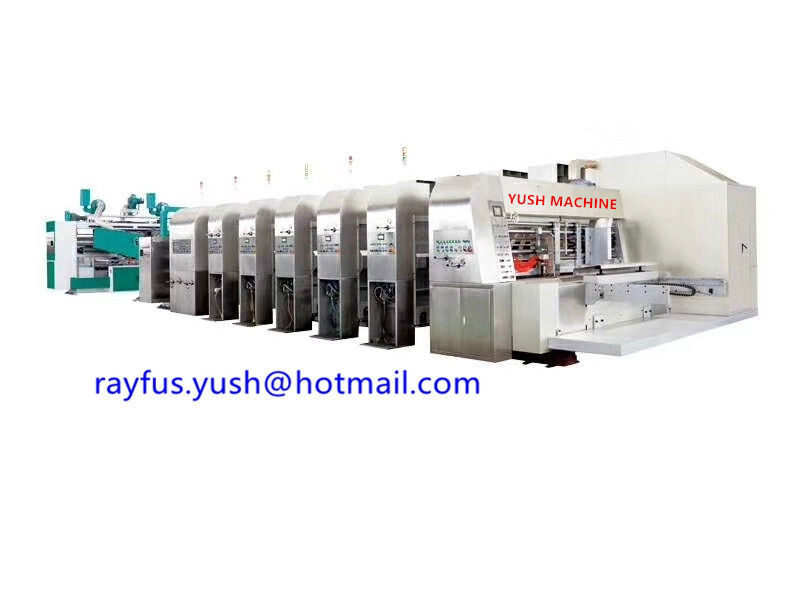

Ffg Box Making Flexo Printer Slotter Die Cutter Folding Gluing Strapping Inline

Automatic Flexo Printing Slotting Die-cutting Folding Gluing Strapping Inline machine, FFG Box Maker

FFG Carton Box Maker

Automatic Flexo Printing Slotting Die-cutting

Folding Gluing Strapping Inline Machine

(Lead-edge Feeding, 1~5 colors printing, Computer-control)

Functional Specifications:

1. This machine can do 1~5 colors flexo printing, slotting, corner-cutting, edge-cutting, creasing, punching, die-cutting, creasing, folding, gluing, counting strapping, etc. at one process.
2. Adopt vacuum adsorption lead-edge feeding cardboard, accurate and reliable.
3. Spray lubrication, oil is balanced by mechanical level conduction.
4. Computer-controlled automatic setting, change order quickly.
5. High precision planet structure for every phase unit, 360 degree adjustment, PLC and digital control.
6. The chain of transmission line with a unique clamping composite folding belt transmission system, so that feed more accurate, more sleek folding.
7. Horizontal folding-oriented transmission structure, and to ensure folding accuracy.
8. Automatically sets the number of computer-controlled discharge.
9. International standards specification for all electrics and pneumatic components.
10. Automatic Pre-feeding unit to save labor and improve efficiency as optional.

Technical Parameters:
