4 6 Corner Semi Auto Folder Gluer / Carton Folding And Gluing Machine

4 6 Corner Semi Auto Folder Gluer / Carton Folding And Gluing Machine

4 6 Corner Semi Auto Folder Gluer / Carton Folding And Gluing Machine
4 6 Corner Semi Auto Folder Gluer / Carton Folding And Gluing Machine
4 6 Corner Semi Auto Folder Gluer / Carton Folding And Gluing Machine
Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: ZH-FS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 60,000~120,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 30~60 working days
Payment Terms: T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Function: 4/6-corner Carton Box Folder Gluer Warranty: One Year
Size: Customized Speed: Customized
Color: Customized Voltage: Made To Customer Request
High Light:

semi automatic folder gluer

,

carton folding and gluing machine

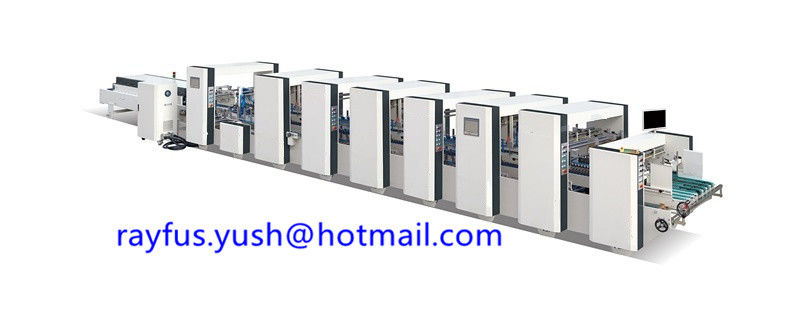

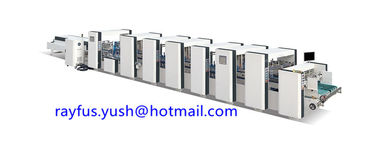

Automatic 4/6-corner Folder Gluer Machine, high-speed, for paperboard or A/C/B/E/F-flute Corrugated

Automatic 4/6-corner Folder Gluer Machine



Functional Specifications:

  1. ZH-FS Series folder gluer machine with 4/6 corner function, each set is controlled by independent motor, adopts electrical regulating board, PLC and imported electronic components!
  2. Feeding section adopts independent electrical control, operation on rail with stable performance and easy to control and operate.
  3. The machine is especially designed for all kinds of 4/6 corner cardboard or corrugated packaging boxes, which can meet to all kinds of requirements of automatic packaging area.
  4. The machine consists of 9 sections: feeding, aligning, 4/6-corner folding, pre-folding & back-folding, bottom-lock & back-folding, folding, pre-pressing, patting, and pressing conveyor.

Technical Parameters:



Paper Material Paperboard 200-800g, A/C/B/E/F-flute Corrugated Cardboard
Feeding Method Automatically and continuously feeding
Folding Method

1st, 2nd and 4th folding 180°, 3rd folding 135°

Glue Material Water-base cold glue
Max Liner Speed 220 m/min






4-corner box type and size
Model 1050 1250 1450 1650 1850 4 6 Corner Semi Auto Folder Gluer / Carton Folding And Gluing Machine 0
A 290~1000mm 290~1200mm 290~1400mm 290~1600mm 290~1800mm
B 130~800mm
C Min: 30mm
D Min: 130mm

6-scorer box type and size
Model 1050 1250 1450 1650 1850 4 6 Corner Semi Auto Folder Gluer / Carton Folding And Gluing Machine 1
A 290~1000mm 290~1200mm 290~1400mm 290~1600mm 290~1800mm
B 130~800mm
C Min: 30mm
D Min: 130mm

4 6 Corner Semi Auto Folder Gluer / Carton Folding And Gluing Machine 2
